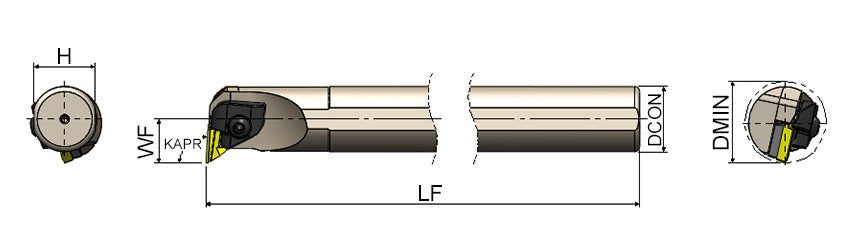

AKKO CKUNR/L C-System Boring Bar - dimension drawing
AKKO CKUNR/L C-System Boring Bar - dimension drawing
AKKO

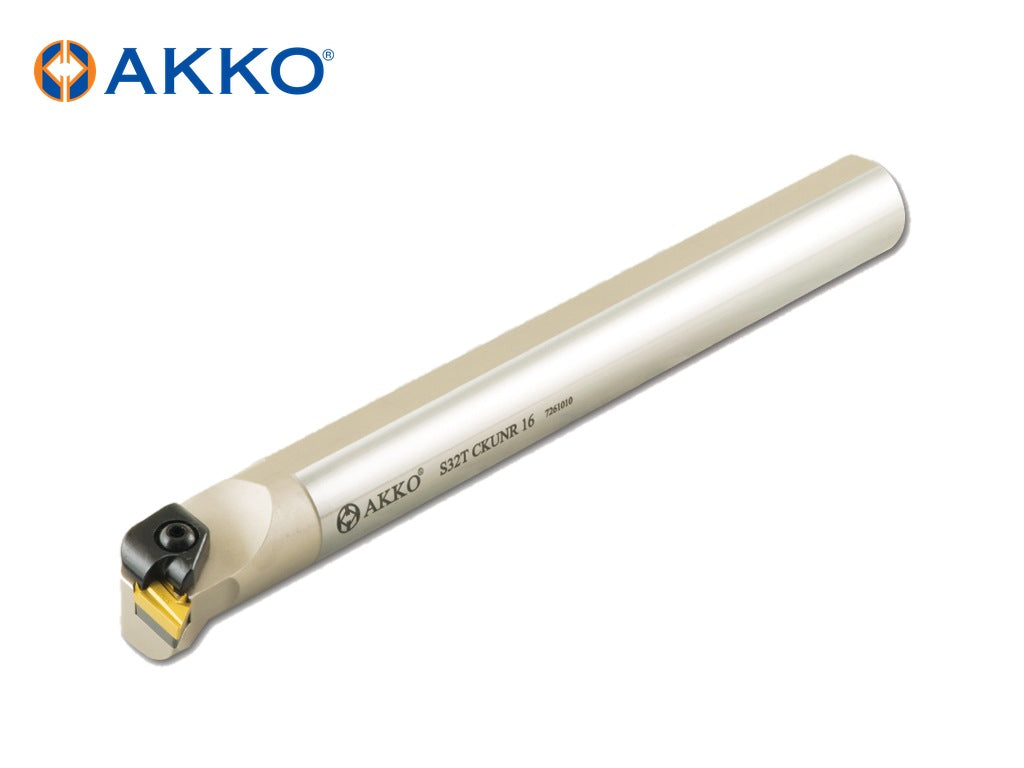

AKKO CKUNR/L C-System Boring Bar

Out of stock
SKU: S25S CKUNL 16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedS25S CKUNL 16 SKUS25S CKUNL 16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO CKUNR/L – C-System Boring Bar from the AKKO C-System Boring Bars range. Insert clamping: top clamp. Available in right-hand and left-hand versions. For inserts: KN.. 1604.. 8 sizes listed below.

Specifications

  • Clamping Type: C-System
  • Coolant Through: No
  • Type Of Bar: Steel Body
  • Insert Size: 1604..
  • Insert Style: KN..
  • Side Cutting Angle (KAPR): 93°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin)
S25S CKUNL 16 L 25 250 19 ≥38 mm
S25S CKUNR 16 R 25 250 19 ≥38 mm
S32T CKUNL 16 L 32 300 22 ≥40 mm
S32T CKUNR 16 R 32 300 22 ≥40 mm
S40U CKUNL 16 L 40 350 27 ≥50 mm
S40U CKUNR 16 R 40 350 27 ≥50 mm
S50V CKUNL 16 L 50 400 35 ≥63 mm
S50V CKUNR 16 R 50 400 35 ≥63 mm

Spare parts (AKKO codes)

  • Shim: AKS-16
  • Shim Screw: AAV-01-M3X10
  • Allen Key: AAL-05-4
  • Clamp Screw: AKV-06-M6X20
  • Clamp Spring: AKY-02
  • Stamp: ABPL-01
AKKO code Clamp
S25S CKUNL 16 ACK-01
S25S CKUNR 16 ACK-02
S32T CKUNL 16 ACK-01
S32T CKUNR 16 ACK-02
S40U CKUNL 16 ACK-01
S40U CKUNR 16 ACK-02
S50V CKUNL 16 ACK-01
S50V CKUNR 16 ACK-02

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
