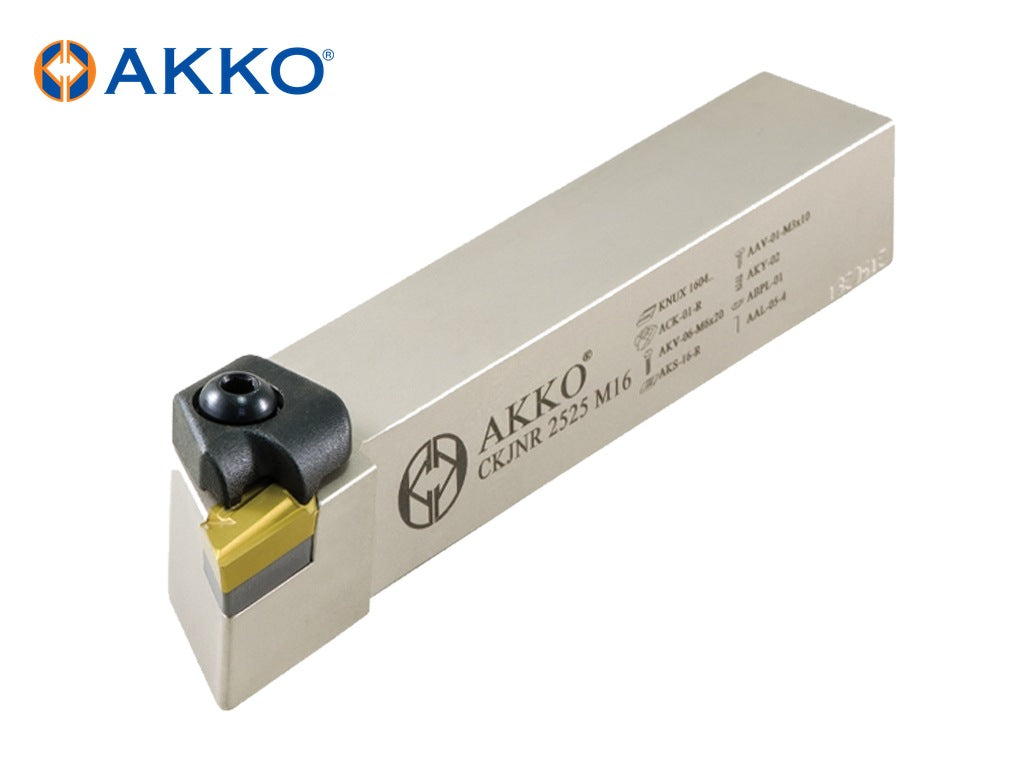

AKKO CKJNR/L – C-System External Turning Toolholder from the AKKO C-System External Turning Toolholders range. Insert clamping: top clamp. Available in right-hand and left-hand versions. For inserts: KN.. 16.. 8 sizes listed below.

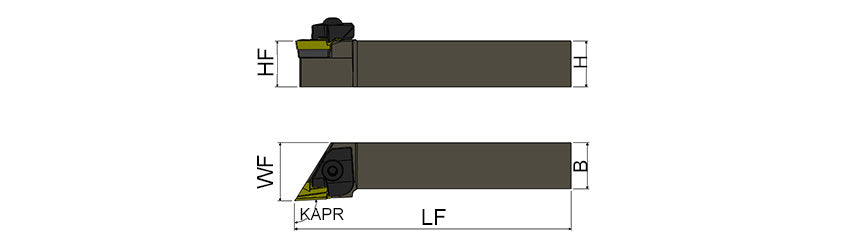

| AKKO code | Hand (R/L) | Shank Height (H, mm) | Shank Width (B, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) |
|---|---|---|---|---|---|
| CKJNL 2020 K16 | L | 20 | 20 | 125 | 27.5 |
| CKJNL 2525 M16 | L | 25 | 25 | 150 | 31.5 |
| CKJNL 3232 P16 | L | 32 | 32 | 170 | 40 |
| CKJNL 4040 S16 | L | 40 | 40 | 250 | 50 |
| CKJNR 2020 K16 | R | 20 | 20 | 125 | 27.5 |
| CKJNR 2525 M16 | R | 25 | 25 | 150 | 31.5 |
| CKJNR 3232 P16 | R | 32 | 32 | 170 | 40 |
| CKJNR 4040 S16 | R | 40 | 40 | 250 | 50 |
| AKKO code | Clamp |
|---|---|
| CKJNL 2020 K16 | ACK-02 |
| CKJNL 2525 M16 | ACK-02 |
| CKJNL 3232 P16 | ACK-02 |
| CKJNL 4040 S16 | ACK-02 |
| CKJNR 2020 K16 | ACK-01 |
| CKJNR 2525 M16 | ACK-01 |
| CKJNR 3232 P16 | ACK-01 |
| CKJNR 4040 S16 | ACK-01 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
