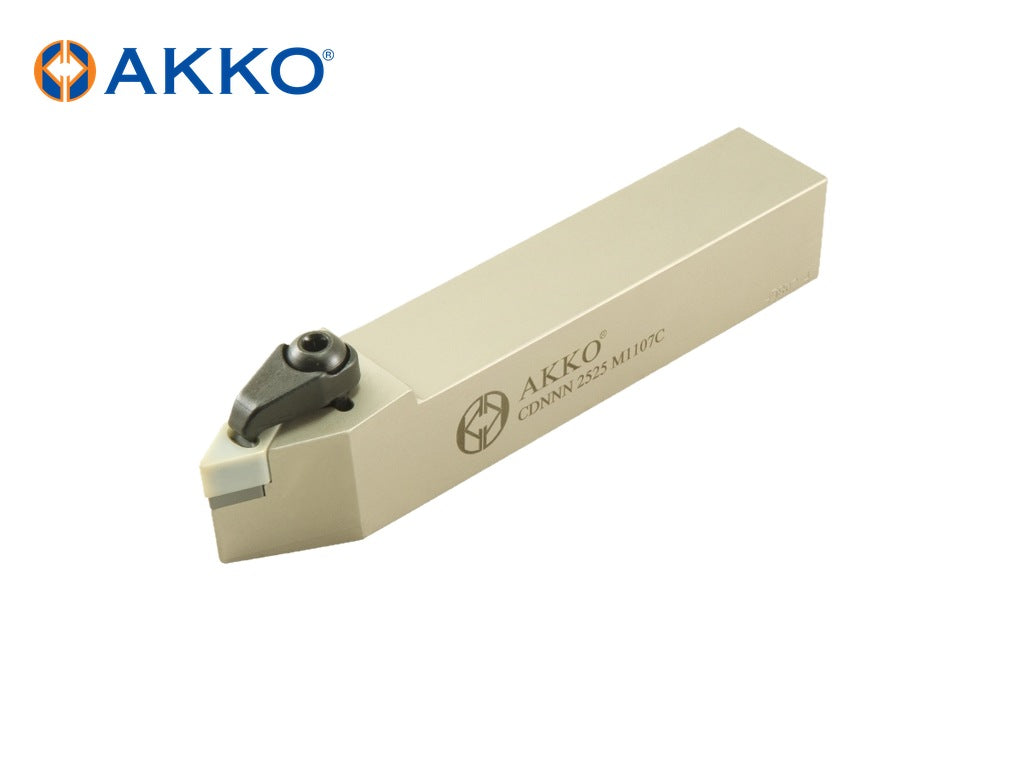

AKKO CDNNN – C-System External Turning Toolholder from the AKKO C-System External Turning Toolholders range. Insert clamping: top clamp. For inserts: DN.. 12.. 1 size listed below.
Specifications
-
Shank Height (H): 25 mm
-
Functional Width (WF): 12.5 mm
-
Cutting Direction: Neutral
-
Functional Length (LF): 150 mm
-
Clamping Type: C-System
-
Coolant Through: No
-
Shank Width (B): 25 mm
-
Side Cutting Angle (KAPR): 62.5°
-
Insert (ISO): DN.. 12..

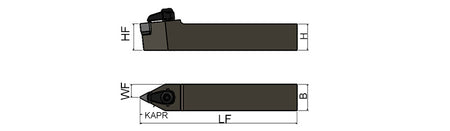

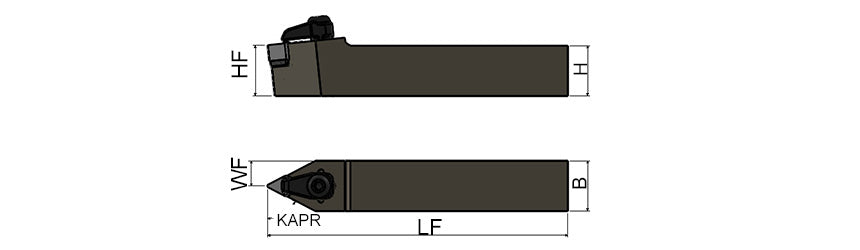

Sizes and dimensions
| AKKO code |
|---|
| CDNNN 2525 M1207C |
Spare parts (AKKO codes)
-
Shim: AADN-2-0001
-
Shim Screw: AAV-04-M5x12
-
Allen Key: AAL-05-4
-
Clamp: ACK-22
-
Clamp Screw: AKV-11-M8X29
-
Ring: ACS-01
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
