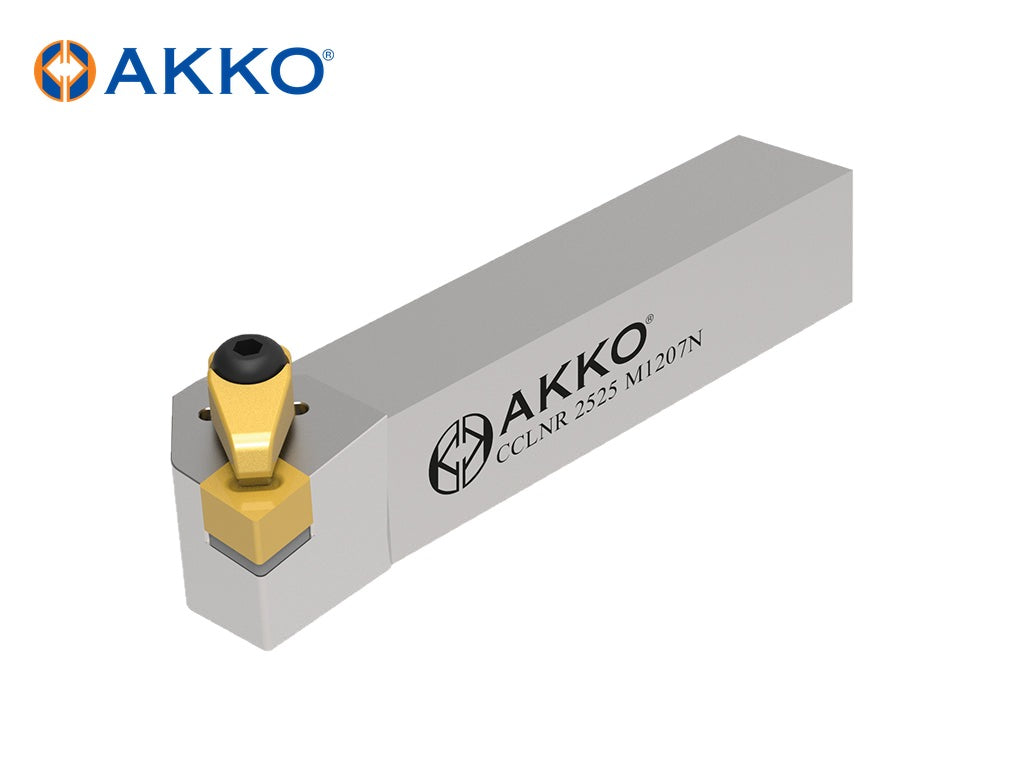

AKKO CCLNR/L-N C-System External Turning Toolholder

Out of stock
SKU: CCLNR 2525 M1207N
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedCCLNR 2525 M1207N SKUCCLNR 2525 M1207N

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO CCLNR/L-N C-System External Turning Toolholder from the AKKO C-System External Turning Toolholders range. Available in right-hand and left-hand versions. For inserts: CN.. 1207.., CN.. 1607.. 6 sizes listed below.

Sizes and dimensions (mm)

AKKO code Insert Hand (R/L) LF WF HF=H B
CCLNR 2525 M1207N CN.. 1207.. R 150 32 25 25
CCLNL 2525 M1207N CN.. 1207.. L 150 32 25 25
CCLNR 3232 P1207N CN.. 1207.. R 170 40 32 32
CCLNL 3232 P1207N CN.. 1207.. L 170 40 32 32
CCLNR 2525 M1607N CN.. 1607.. R 150 32 25 25
CCLNL 2525 M1607N CN.. 1607.. L 150 32 25 25

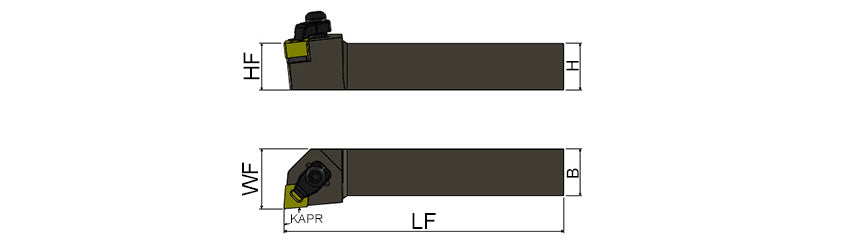

Dimension key (letters as on the drawing):

  • LF: Functional length
  • WF: Functional width
  • HF=H: Shank height
  • B: Shank width

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
