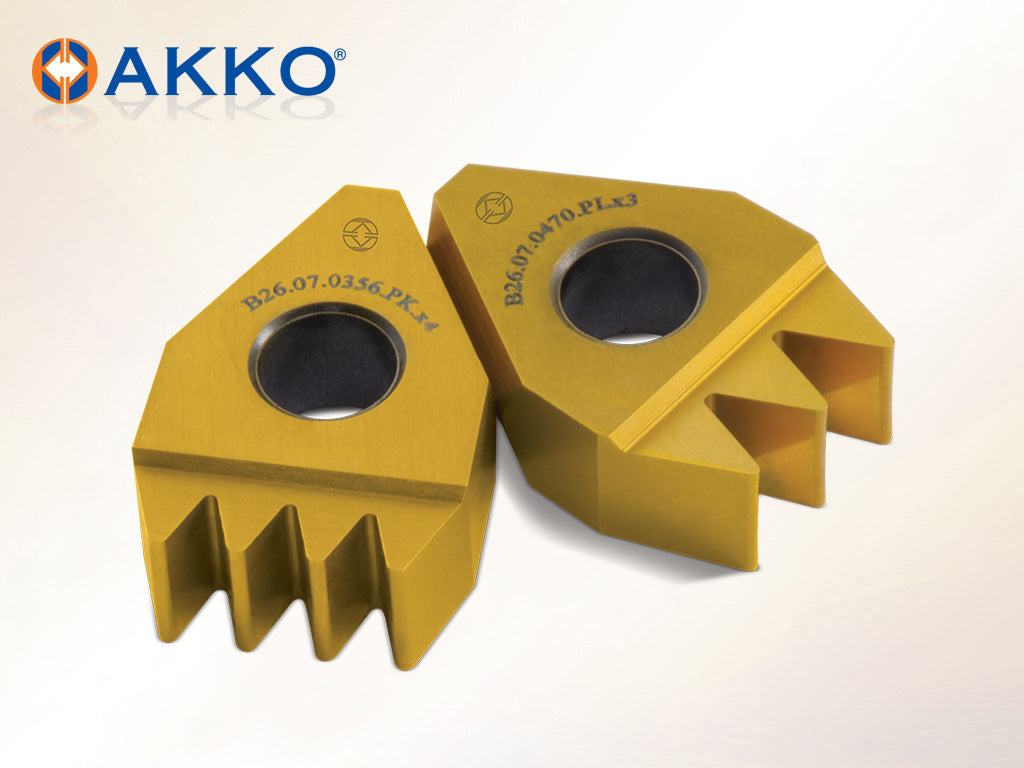

AKKO B26 Poly-V Belt Pulley Grooving Insert
AKKO B26 Poly-V Belt Pulley Grooving Insert - dimension drawing
AKKO B26 Poly-V Belt Pulley Grooving Insert
AKKO B26 Poly-V Belt Pulley Grooving Insert - dimension drawing
AKKO

AKKO B26 Poly-V Belt Pulley Grooving Insert

Out of stock
SKU: B26.07.0160.PHx6
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedB26.07.0160.PHx6 SKUB26.07.0160.PHx6

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO B26 Poly-V Belt Pulley Grooving Insert from the AKKO Poly-V Belt Pulley Grooving Inserts range. 5 sizes listed below.

Sizes and dimensions (mm)

AKKO code S Quality CDX TP RE REN
B26.07.0160.PHx6 7 VK10F01 1.53 1.6 0.15 0.3
B26.07.0234.PJx4 7 VK10F01 2.05 2.34 0.36 0.24
B26.07.0356.PKx3 7 VK10F01 3.35 3.56 0.45 0.35
B26.07.0470.PLx3 7 VK10F01 4.85 4.7 0.38 0.45
B26.07.0356.PKx4 7 VK10F01 3.35 3.56 0.45 0.35

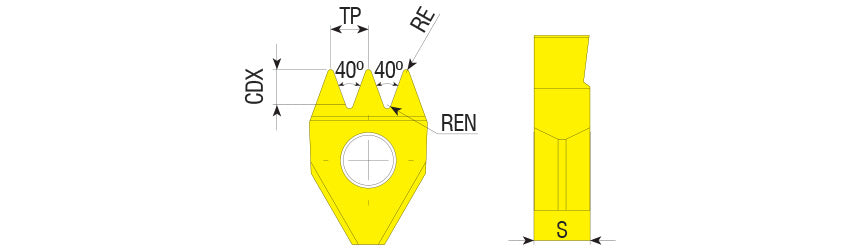

Dimension key (letters as on the drawing):

  • S: Thickness
  • CDX: Maximum cutting depth
  • TP: Thread pitch
  • RE: Corner radius
