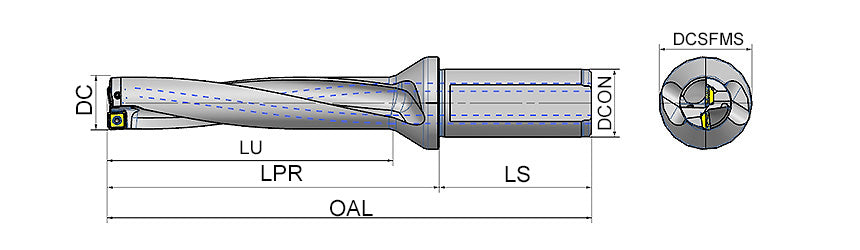

AKKO ATUM-XD5-SOMT ATUM Indexable Drill (U-Drill) - dimension drawing

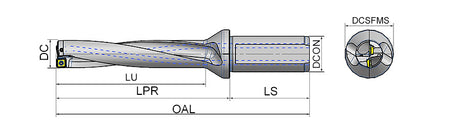

AKKO ATUM-XD5-SOMT ATUM Indexable Drill (U-Drill) - dimension drawing
AKKO

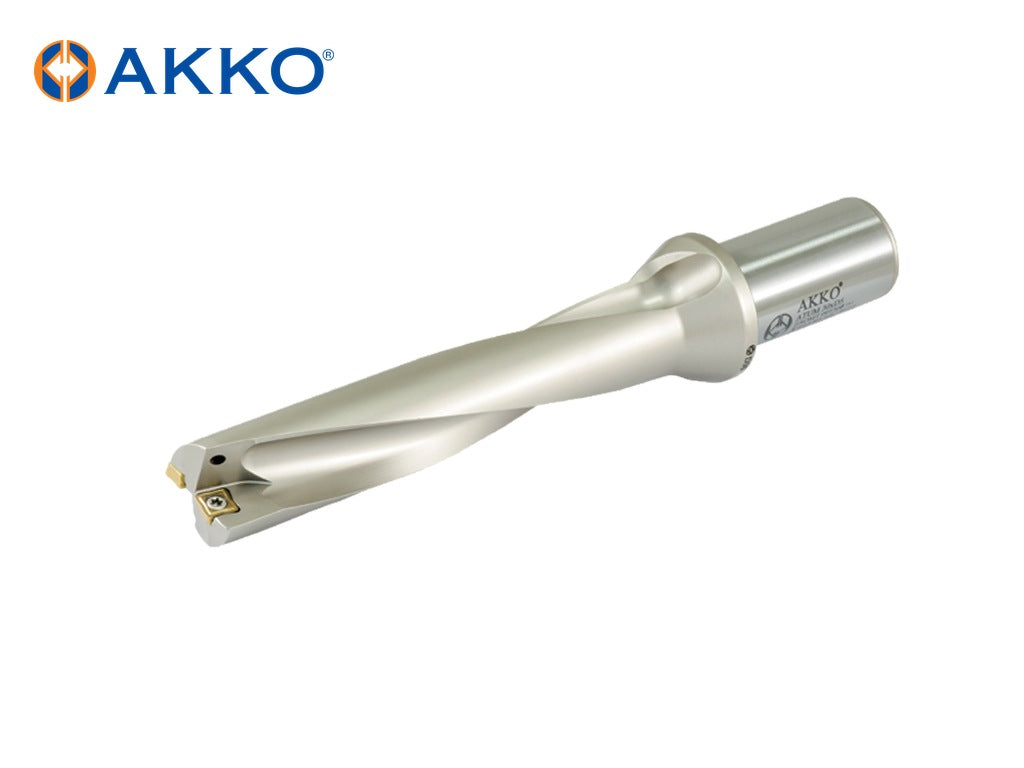

AKKO ATUM-XD5-SOMT ATUM Indexable Drill (U-Drill)

Out of stock
SKU: ATUM 14XD5 SOMT 050204
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedATUM 14XD5 SOMT 050204 SKUATUM 14XD5 SOMT 050204

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ATUM-XD5-SOMT – ATUM Indexable Drill (U-Drill) from the AKKO ATUM Indexable Drills (U-Drills) range. For inserts: SOMT 050204, SOMT 060204, SOMT 070306, SOMT 08T306, SOMT 09T308, SOMT 11T308. 25 sizes listed below.

Specifications

  • Insert Style: SOMT

Sizes and dimensions

AKKO code Overall Length (OAL, mm) Shank Length (LS, mm) Useable Length (LU, mm) Drill Depth By Diameter Ratio Contact surface diameter machine side (DCSFMS, mm) Shank Size (DCON, mm) Drilling Diameter (DC, mm) Insert Size
ATUM 14XD5 SOMT 050204 142 50 70 D5 25 20 14 050204
ATUM 15.5XD5 SOMT 050204 147 50 75 D5 25 20 15.5 050204
ATUM 15XD5 SOMT 050204 147 50 75 D5 25 20 15 050204
ATUM 16.5XD5 SOMT 060204 158 56 80 D5 34 25 16.5 060204
ATUM 16XD5 SOMT 050204 158 56 80 D5 34 25 16 050204
ATUM 17.5XD5 SOMT 060204 163 56 85 D5 34 25 17.5 060204
ATUM 18.5XD5 SOMT 060204 168 56 90 D5 34 25 18.5 060204
ATUM 18XD5 SOMT 060204 168 56 90 D5 34 25 18 060204
ATUM 19.5XD5 SOMT 070306 173 56 95 D5 34 25 19.5 070306
ATUM 19XD5 SOMT 060204 173 56 95 D5 34 25 19 060204
ATUM 20XD5 SOMT 070306 178 56 100 D5 34 25 20 070306
ATUM 21XD5 SOMT 070306 183 56 105 D5 34 25 21 070306
ATUM 22XD5 SOMT 070306 188 56 110 D5 34 25 22 070306
ATUM 23XD5 SOMT 08T306 193 56 115 D5 34 25 23 08T306
ATUM 24XD5 SOMT 08T306 198 56 120 D5 34 25 24 08T306
ATUM 25XD5 SOMT 08T306 203 56 125 D5 34 25 25 08T306
ATUM 26XD5 SOMT 08T306 208 56 130 D5 34 25 26 08T306
ATUM 27XD5 SOMT 09T308 213 56 135 D5 34 25 27 09T308
ATUM 28XD5 SOMT 09T308 218 56 140 D5 34 25 28 09T308
ATUM 29XD5 SOMT 09T308 223 56 145 D5 34 25 29 09T308
ATUM 30XD5 SOMT 09T308 237 60 150 D5 44 32 30 09T308
ATUM 33XD5 SOMT 11T308 252 60 165 D5 44 32 33 11T308
ATUM 34XD5 SOMT 11T308 257 60 170 D5 44 32 34 11T308
ATUM 35XD5 SOMT 11T308 171 70 70 D2 54 40 35 11T308
ATUM 36XD5 SOMT 11T308 267 60 180 D5 44 32 36 11T308

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
ATUM 14XD5 SOMT 050204 82-T06 3006-M2X4
ATUM 15.5XD5 SOMT 050204 82-T06 3006-M2X4
ATUM 15XD5 SOMT 050204 82-T06 3006-M2X4
ATUM 16.5XD5 SOMT 060204 82-T07 3007-M2.2X4.6
ATUM 16XD5 SOMT 050204 82-T06 3006-M2X4
ATUM 17.5XD5 SOMT 060204 82-T07 3007-M2.2X4.6
ATUM 18.5XD5 SOMT 060204 82-T07 3007-M2.2X4.6
ATUM 18XD5 SOMT 060204 82-T07 3007-M2.2X4.6
ATUM 19.5XD5 SOMT 070306 82-T07 3007-M2.2X4.6
ATUM 19XD5 SOMT 060204 82-T07 3007-M2.2X4.6
ATUM 20XD5 SOMT 070306 82-T07 3007-M2.2X4.6
ATUM 21XD5 SOMT 070306 82-T07 3007-M2.2X4.6
ATUM 22XD5 SOMT 070306 82-T07 3007-M2.2X4.6
ATUM 23XD5 SOMT 08T306 82-T08 3008-M2.5X6
ATUM 24XD5 SOMT 08T306 82-T08 3008-M2.5X6
ATUM 25XD5 SOMT 08T306 82-T08 3008-M2.5X6
ATUM 26XD5 SOMT 08T306 82-T08 3008-M2.5X6
ATUM 27XD5 SOMT 09T308 82-T15 4015-M3.5X9
ATUM 28XD5 SOMT 09T308 82-T15 4015-M3.5X9
ATUM 29XD5 SOMT 09T308 82-T15 4015-M3.5X9
ATUM 30XD5 SOMT 09T308 82-T15 4015-M3.5X9
ATUM 33XD5 SOMT 11T308 82-T15 4015-M3.5X9
ATUM 34XD5 SOMT 11T308 82-T15 4015-M3.5X9
ATUM 35XD5 SOMT 11T308 82-T15 4015-M3.5X9
ATUM 36XD5 SOMT 11T308 82-T15 4015-M3.5X9

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
