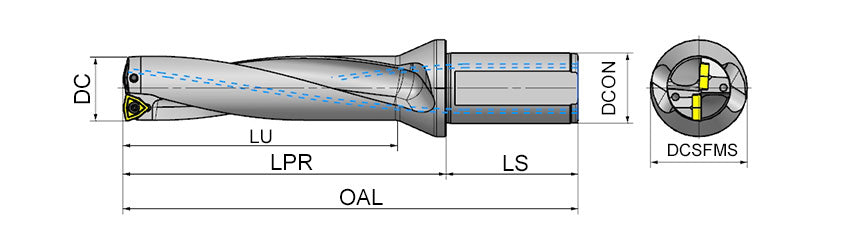

AKKO ATUM-XD4-WCM ATUM Indexable Drill (U-Drill) - dimension drawing
AKKO ATUM-XD4-WCM ATUM Indexable Drill (U-Drill) - dimension drawing
AKKO

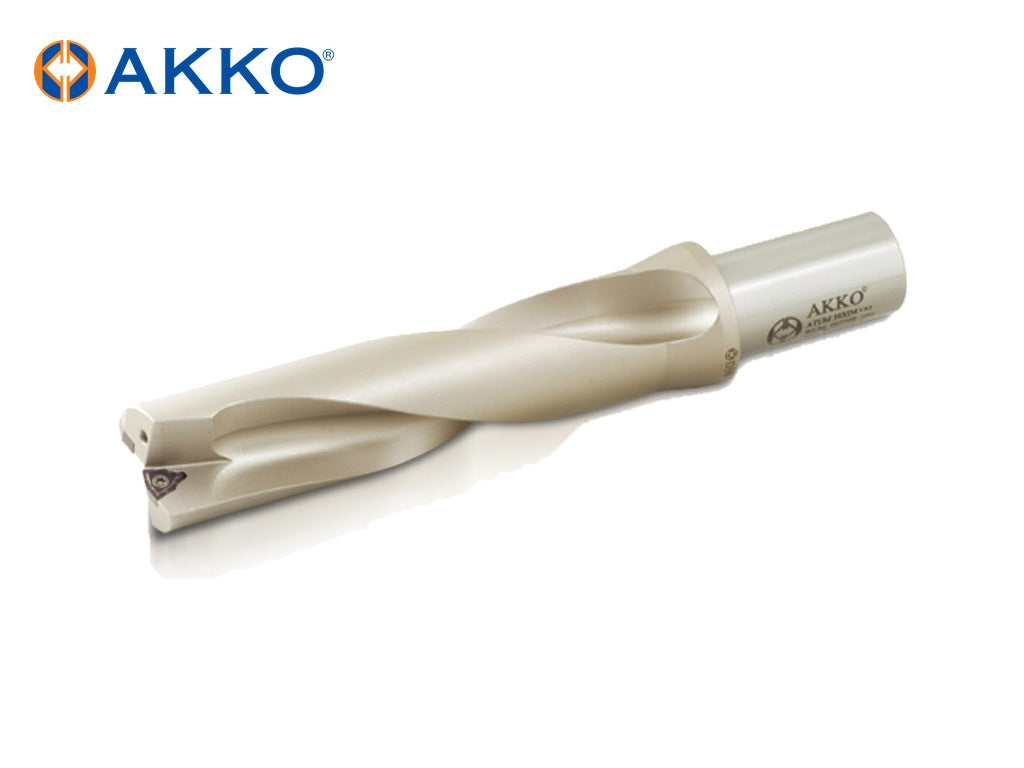

AKKO ATUM-XD4-WCM ATUM Indexable Drill (U-Drill)

Out of stock
SKU: ATUM 16.5XD4 WCM. 030208
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedATUM 16.5XD4 WCM. 030208 SKUATUM 16.5XD4 WCM. 030208

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ATUM-XD4-WCM – ATUM Indexable Drill (U-Drill) from the AKKO ATUM Indexable Drills (U-Drills) range. For inserts: WCMX 030208, WCMX 040208, WCMX 050308, WCMX 06T308, WCMX 080412. 51 sizes listed below.

Specifications

  • Insert Style: WCMX

Sizes and dimensions

AKKO code Overall Length (OAL, mm) Shank Length (LS, mm) Useable Length (LU, mm) Drill Depth By Diameter Ratio Contact surface diameter machine side (DCSFMS, mm) Shank Size (DCON, mm) Drilling Diameter (DC, mm) Insert Size
ATUM 16.5XD4 WCM. 030208 142 56 64 D4 34 25 16.5 030208
ATUM 16XD4 WCM. 030208 142 56 64 D4 34 25 16 030208
ATUM 17.5XD4 WCM. 030208 146 56 68 D4 34 25 17.5 030208
ATUM 17XD4 WCM. 030208 146 56 68 D4 34 25 17 030208
ATUM 18.5XD4 WCM. 030208 150 56 72 D4 34 25 18.5 030208
ATUM 18XD4 WCM. 030208 150 56 72 D4 34 25 18 030208
ATUM 19.5XD4 WCM. 030208 154 56 76 D4 34 25 19.5 030208
ATUM 19XD4 WCM. 030208 154 56 76 D4 34 25 19 030208
ATUM 20.5XD4 WCM. 040208 158 56 80 D4 34 25 20.5 040208
ATUM 20XD4 WCM. 040208 158 56 80 D4 34 25 20 040208
ATUM 21.5XD4 WCM. 040208 162 56 84 D4 34 25 21.5 040208
ATUM 21XD4 WCM. 040208 162 56 84 D4 34 25 21 040208
ATUM 22.5XD4 WCM. 040208 166 56 88 D4 34 25 22.5 040208
ATUM 22XD4 WCM. 040208 166 56 88 D4 34 25 22 040208
ATUM 23.5XD4 WCM. 040208 170 56 92 D4 34 25 23.5 040208
ATUM 23XD4 WCM. 040208 170 56 92 D4 34 25 23 040208
ATUM 24.5XD4 WCM. 050308 174 56 96 D4 34 25 24.5 050308
ATUM 24XD4 WCM. 050308 174 56 96 D4 34 25 24 050308
ATUM 25.5XD4 WCM. 050308 131 56 50 D2 32 25 25.5 050308
ATUM 25XD4 WCM. 050308 178 56 100 D4 34 25 25 050308
ATUM 26.5XD4 WCM. 050308 182 56 104 D4 34 25 26.5 050308
ATUM 26XD4 WCM. 050308 182 56 104 D4 34 25 26 050308
ATUM 27.5XD4 WCM. 050308 186 56 108 D4 34 25 27.5 050308
ATUM 27XD4 WCM. 050308 186 56 108 D4 34 25 27 050308
ATUM 28.5XD4 WCM. 050308 190 56 112 D4 34 25 28.5 050308
ATUM 28XD4 WCM. 050308 190 56 112 D4 34 25 28 050308
ATUM 29.5XD4 WCM. 050308 194 56 116 D4 34 25 29.5 050308
ATUM 29XD4 WCM. 050308 194 56 116 D4 34 25 29 050308
ATUM 30XD4 WCM. 06T308 207 60 120 D4 44 32 30 06T308
ATUM 31XD4 WCM. 06T308 211 60 124 D4 44 32 31 06T308
ATUM 32XD4 WCM. 06T308 215 60 128 D4 44 32 32 06T308
ATUM 33.5XD4 WCM. 06T308 219 60 132 D4 44 32 33.5 06T308
ATUM 33XD4 WCM. 06T308 219 60 132 D4 44 32 33 06T308
ATUM 34XD4 WCM. 06T308 223 60 136 D4 44 32 34 06T308
ATUM 35XD4 WCM. 06T308 171 70 70 D2 54 40 35 06T308
ATUM 36XD4 WCM. 06T308 231 60 144 D4 44 32 36 06T308
ATUM 37XD4 WCM. 06T308 235 60 148 D4 44 32 37 06T308
ATUM 38.5XD4 WCM. 06T308 239 60 152 D4 44 32 38.5 06T308
ATUM 38XD4 WCM. 06T308 239 60 152 D4 44 32 38 06T308
ATUM 39XD4 WCM. 06T308 243 60 156 D4 44 32 39 06T308
ATUM 40XD4 WCM. 06T308 247 60 160 D4 44 32 40 06T308
ATUM 41XD4 WCM. 06T308 251 60 164 D4 44 32 41 06T308
ATUM 42XD4 WCM. 06T308 255 60 168 D4 44 32 42 06T308
ATUM 43XD4 WCM. 06T308 259 60 172 D4 44 32 43 06T308
ATUM 44XD4 WCM. 06T308 263 60 176 D4 44 32 44 06T308
ATUM 45XD4 WCM. 080412 282 70 180 D4 54 40 45 080412
ATUM 46XD4 WCM. 080412 286 70 184 D4 54 40 46 080412
ATUM 47XD4 WCM. 080412 290 70 188 D4 54 40 47 080412
ATUM 48XD4 WCM. 080412 294 70 192 D4 54 40 48 080412
ATUM 49XD4 WCM. 080412 298 70 196 D4 54 40 49 080412
ATUM 50XD4 WCM. 080412 302 70 200 D4 54 40 50 080412

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
ATUM 16.5XD4 WCM. 030208 82-T08 3008-M2.5X6
ATUM 16XD4 WCM. 030208 82-T08 3008-M2.5X6
ATUM 17.5XD4 WCM. 030208 82-T08 3008-M2.5X6
ATUM 17XD4 WCM. 030208 82-T08 3008-M2.5X6
ATUM 18.5XD4 WCM. 030208 82-T08 3008-M2.5X6
ATUM 18XD4 WCM. 030208 82-T08 3008-M2.5X6
ATUM 19.5XD4 WCM. 030208 82-T08 3008-M2.5X6
ATUM 19XD4 WCM. 030208 82-T08 3008-M2.5X6
ATUM 20.5XD4 WCM. 040208 82-T08 3008-M2.5X6
ATUM 20XD4 WCM. 040208 82-T08 3008-M2.5X6
ATUM 21.5XD4 WCM. 040208 82-T08 3008-M2.5X6
ATUM 21XD4 WCM. 040208 82-T08 3008-M2.5X6
ATUM 22.5XD4 WCM. 040208 82-T08 3008-M2.5X6
ATUM 22XD4 WCM. 040208 82-T08 3008-M2.5X6
ATUM 23.5XD4 WCM. 040208 82-T08 3008-M2.5X6
ATUM 23XD4 WCM. 040208 82-T08 3008-M2.5X6
ATUM 24.5XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 24XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 25.5XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 25XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 26.5XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 26XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 27.5XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 27XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 28.5XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 28XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 29.5XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 29XD4 WCM. 050308 82-T08 3008-M3X8
ATUM 30XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 31XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 32XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 33.5XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 33XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 34XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 35XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 36XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 37XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 38.5XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 38XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 39XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 40XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 41XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 42XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 43XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 44XD4 WCM. 06T308 82-T10 3010-M3.5X9
ATUM 45XD4 WCM. 080412 82-T15 4015-M4X11
ATUM 46XD4 WCM. 080412 82-T15 4015-M4X11
ATUM 47XD4 WCM. 080412 82-T15 4015-M4X11
ATUM 48XD4 WCM. 080412 82-T15 4015-M4X11
ATUM 49XD4 WCM. 080412 82-T15 4015-M4X11
ATUM 50XD4 WCM. 080412 82-T15 4015-M4X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
