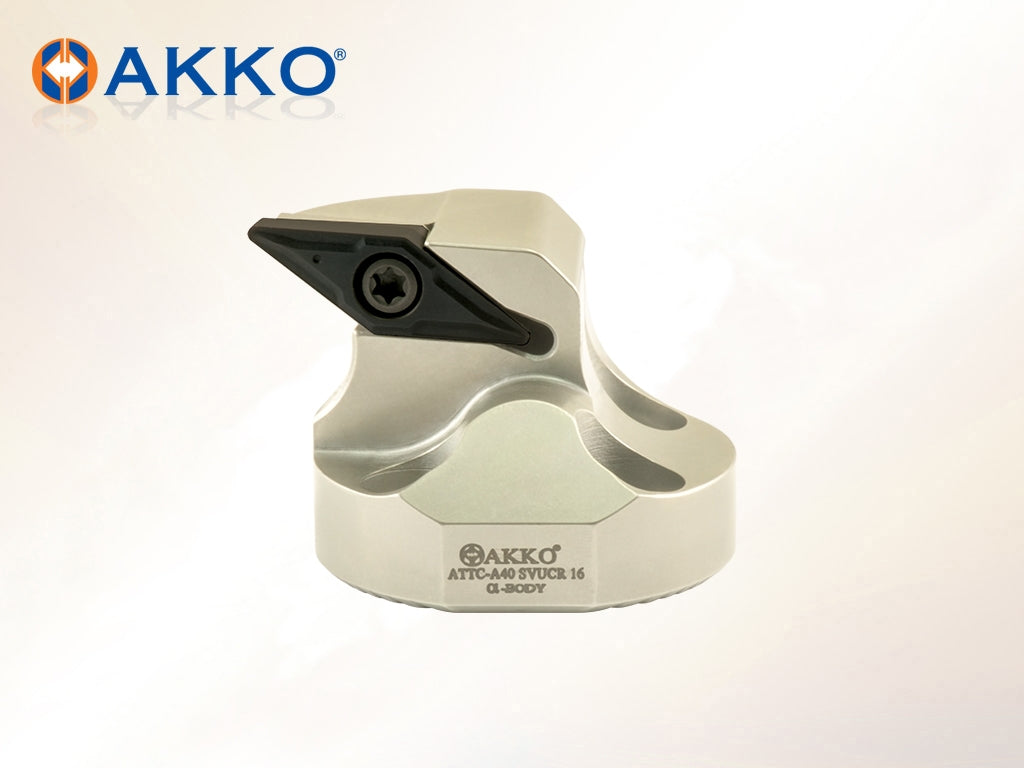

AKKO ATTC-SVUCR/L Antivibration Boring Bar

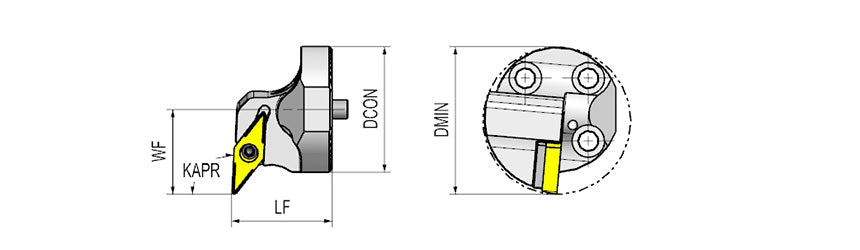

AKKO ATTC-SVUCR/L Antivibration Boring Bar - dimension drawing
AKKO ATTC-SVUCR/L Antivibration Boring Bar
AKKO ATTC-SVUCR/L Antivibration Boring Bar - dimension drawing
AKKO

AKKO ATTC-SVUCR/L Antivibration Boring Bar

Out of stock
SKU: ATTC-A20 SVUCL 11
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedATTC-A20 SVUCL 11 SKUATTC-A20 SVUCL 11

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO ATTC-SVUCR/L Antivibration Boring Bar from the AKKO Antivibration Boring Bars range. Available in right-hand and left-hand versions. For inserts: VC.T 1103.., VC.T 1604.. 8 sizes listed below.

Sizes and dimensions (mm)

AKKO code Insert Hand (R/L) DCON LF WF D min
ATTC-A20 SVUCL 11 VC.T 1103.. L 20 20 15 27
ATTC-A20 SVUCR 11 VC.T 1103.. R 20 20 15 27
ATTC-A25 SVUCL 11 VC.T 1103.. L 25 23 17 32
ATTC-A25 SVUCR 11 VC.T 1103.. R 25 23 17 32
ATTC-A32 SVUCL 16 VC.T 1604.. L 32 32 22 40
ATTC-A32 SVUCR 16 VC.T 1604.. R 32 32 22 40
ATTC-A40 SVUCL 16 VC.T 1604.. L 40 32 27 50
ATTC-A40 SVUCR 16 VC.T 1604.. R 40 32 27 50

Dimension key (letters as on the drawing):

  • DCON: Connection diameter
  • LF: Functional length
  • WF: Functional width
  • D min: Minimum bore diameter

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
