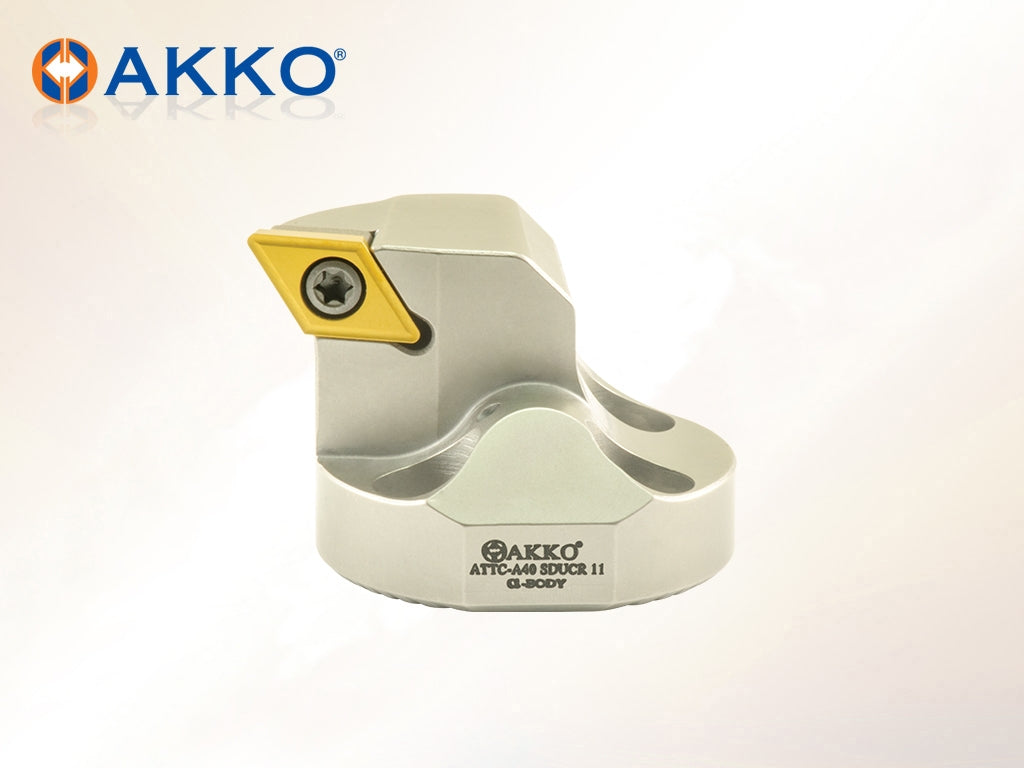

AKKO ATTC-SDUCR/L Antivibration Boring Bar from the AKKO Antivibration Boring Bars range. Available in right-hand and left-hand versions. For inserts: DC.T 0702.., DC.T 11T3.. 10 sizes listed below.
| AKKO code | Insert | Hand (R/L) | DCON | LF | WF | D min |
|---|---|---|---|---|---|---|
| ATTC-A25 SDUCR 11 | DC.T 11T3.. | R | 25 | 23 | 17 | 32 |
| ATTC-A20 SDUCL 11 | DC.T 11T3.. | L | 20 | 20 | 13 | 25 |
| ATTC-A25 SDUCL 11 | DC.T 11T3.. | L | 25 | 23 | 17 | 32 |
| ATTC-A16 SDUCR 07 | DC.T 0702.. | R | 16 | 20 | 11 | 20 |
| ATTC-A16 SDUCL 07 | DC.T 0702.. | L | 16 | 20 | 11 | 20 |
| ATTC-A40 SDUCL 11 | DC.T 11T3.. | L | 40 | 32 | 27 | 50 |
| ATTC-A20 SDUCR 11 | DC.T 11T3.. | R | 20 | 20 | 13 | 25 |
| ATTC-A32 SDUCL 11 | DC.T 11T3.. | L | 32 | 32 | 22 | 40 |
| ATTC-A32 SDUCR 11 | DC.T 11T3.. | R | 32 | 32 | 22 | 40 |
| ATTC-A40 SDUCR 11 | DC.T 11T3.. | R | 40 | 32 | 27 | 50 |

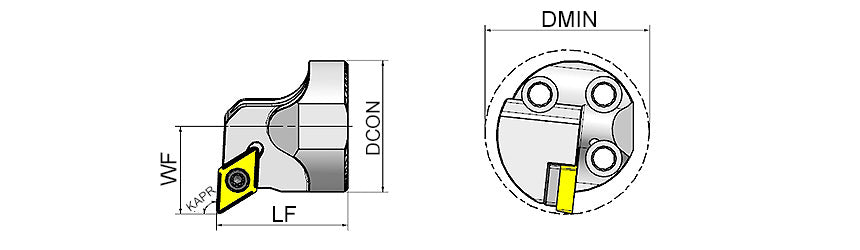

Dimension key (letters as on the drawing):
