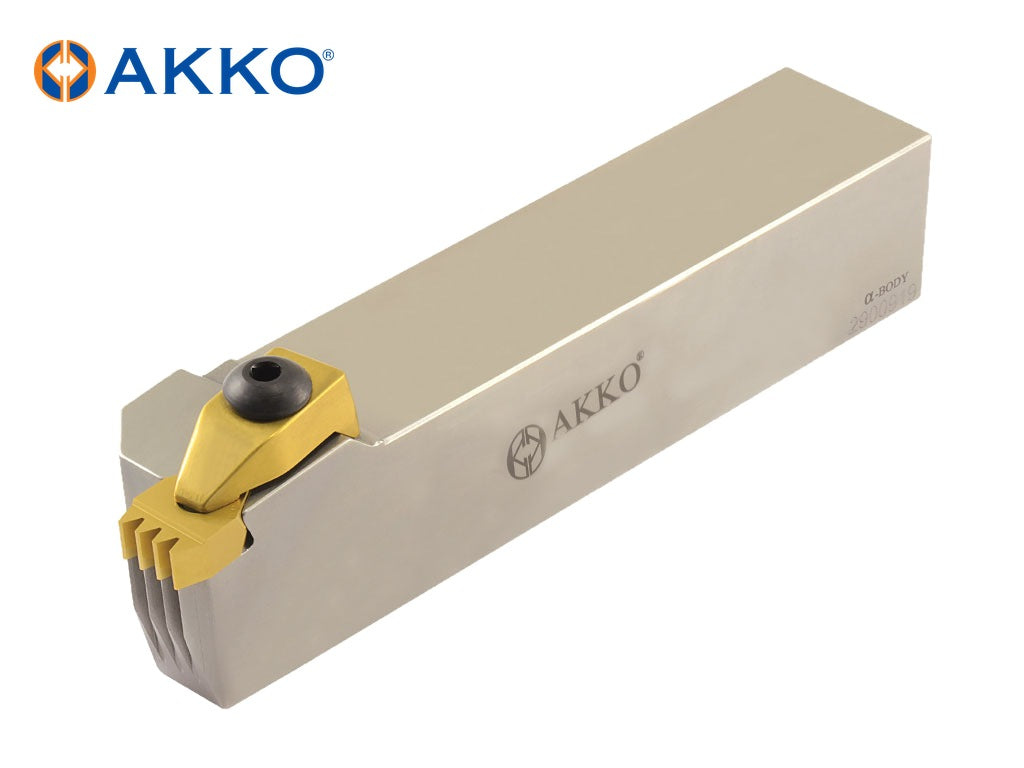

AKKO ATPVK – Poly-V Belt Pulley Grooving Toolholder from the AKKO Poly-V Belt Pulley Grooving Toolholders range. For inserts: B26.07.0234PJ.x4, B26.07.0356PK.x4, B26.07.0470PL.x3. 9 sizes listed below.

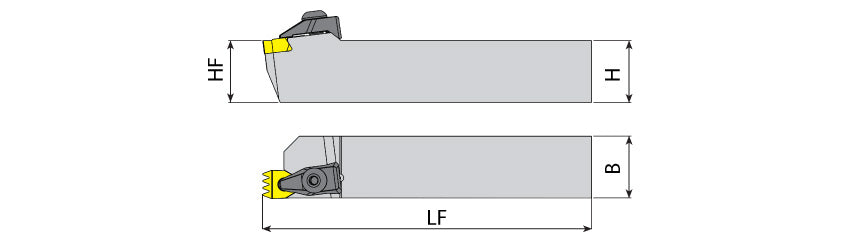

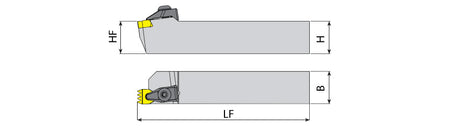

| AKKO code | Shank Height (H, mm) | Shank Width (B, mm) | Functional Length (LF, mm) | Insert Style |
|---|---|---|---|---|
| ATPVK 2020 K2.34X4 | 20 | 20 | 125 | B26.07.0234PJ.x4 |
| ATPVK 2020 K3.56X4 | 20 | 20 | 125 | B26.07.0356PK.x4 |
| ATPVK 2020 K4.7X3 | 20 | 20 | 125 | B26.07.0470PL.x3 |
| ATPVK 2525 M2.34X4 | 25 | 25 | 150 | B26.07.0234PJ.x4 |
| ATPVK 2525 M3.56X4 | 25 | 25 | 150 | B26.07.0356PK.x4 |
| ATPVK 2525 M4.7X3 | 25 | 25 | 150 | B26.07.0470PL.x3 |
| ATPVK 3232 P2.34X4 | 32 | 32 | 170 | B26.07.0234PJ.x4 |
| ATPVK 3232 P3.56X4 | 32 | 32 | 170 | B26.07.0356PK.x4 |
| ATPVK 3232 P4.7X3 | 32 | 32 | 170 | B26.07.0470PL.x3 |
| AKKO code | Stamp | Ring |
|---|---|---|
| ATPVK 2020 K2.34X4 | – | – |
| ATPVK 2020 K3.56X4 | – | – |
| ATPVK 2020 K4.7X3 | – | – |
| ATPVK 2525 M2.34X4 | ABPL-02 | AS-02 |
| ATPVK 2525 M3.56X4 | ABPL-02 | AS-02 |
| ATPVK 2525 M4.7X3 | ABPL-02 | AS-02 |
| ATPVK 3232 P2.34X4 | ABPL-02 | AS-02 |
| ATPVK 3232 P3.56X4 | ABPL-02 | AS-02 |
| ATPVK 3232 P4.7X3 | ABPL-02 | AS-02 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
