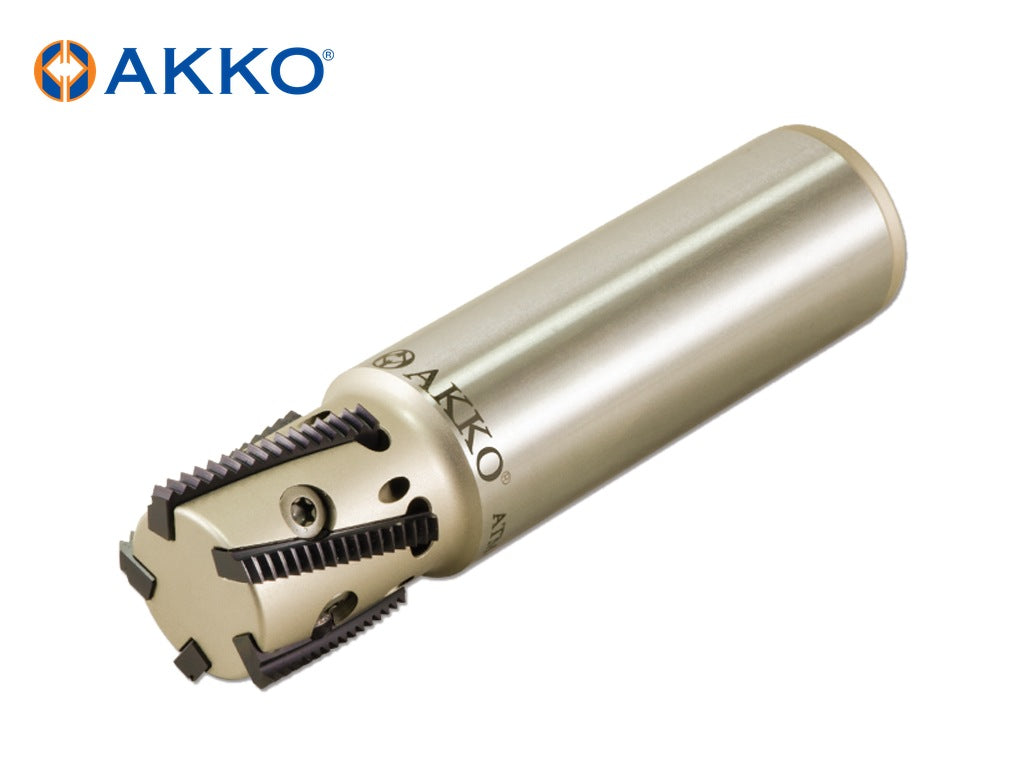

AKKO ATM-H – Thread Milling Tool from the AKKO Thread Milling Tools range. For inserts: H23 23, H32 32. 2 sizes listed below.

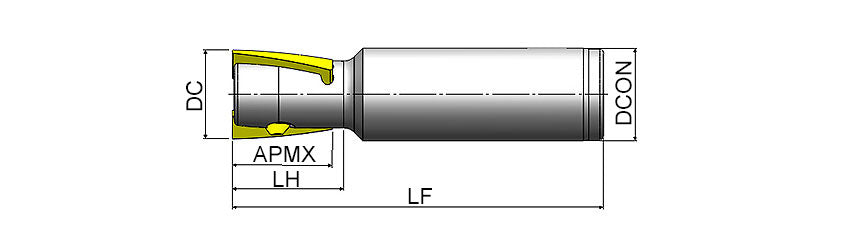

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Maximum Depth of Cut (APMX, mm) | Number of Flutes (ZEFP) | Usable Length (LU, mm) | Neck Length (LH, mm) | Insert Size | Insert Style |
|---|---|---|---|---|---|---|---|---|---|
| ATM-H23-D23-C25-L100-Z02-H | 23 | 25 | 100 | 27 | 2 | 30 | 30 | 23 | H23 |
| ATM-H32-D32-C32-L130-Z05-H | 32 | 32 | 130 | 32 | 5 | 35 | 35 | 32 | H32 |
| AKKO code | Torx Key | Torx Screw |
|---|---|---|
| ATM-H23-D23-C25-L100-Z02-H | 82-T15 | 1015-M4X8 |
| ATM-H32-D32-C32-L130-Z05-H | 80-T20 | 1720-U8-32x10 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
