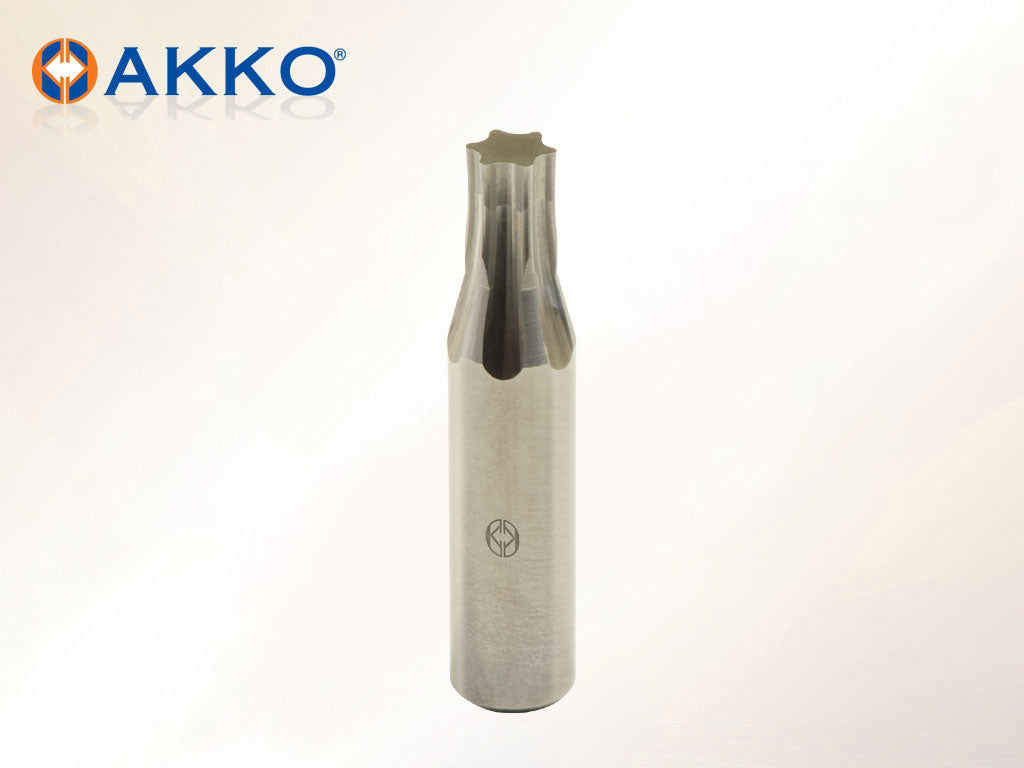

AKKO APTX Torx Punch Set

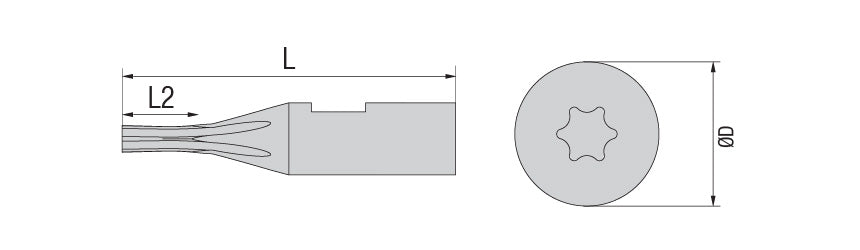

AKKO APTX Torx Punch Set - dimension drawing
AKKO APTX Torx Punch Set

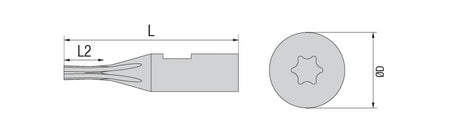

AKKO APTX Torx Punch Set - dimension drawing
AKKO

AKKO APTX Torx Punch Set

Out of stock
SKU: APTX-006
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAPTX-006 SKUAPTX-006

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO APTX Torx Punch Set from the AKKO Torx Punch Sets range. 10 sizes listed below.

Sizes and dimensions (mm)

AKKO code Hand (R/L) B Socket Number L2 ØD
APTX-006 R 1.27 T6 1.82 8
APTX-008 R 1.75 T8 3.05 8
APTX-010 R 2.05 T10 3.56 8
APTX-015 R 2.4 T15 3.81 8
APTX-020 R 2.85 T20 4.07 8
APTX-025 R 3.25 T25 4.45 10
APTX-030 R 4.05 T30 4.95 10
APTX-040 R 4.85 T40 5.59 10
APTX-045 R 5.64 T45 6.22 10
APTX-050 R 6.45 T50 6.48 10

Dimension key (letters as on the drawing):

  • B: Shank width

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
