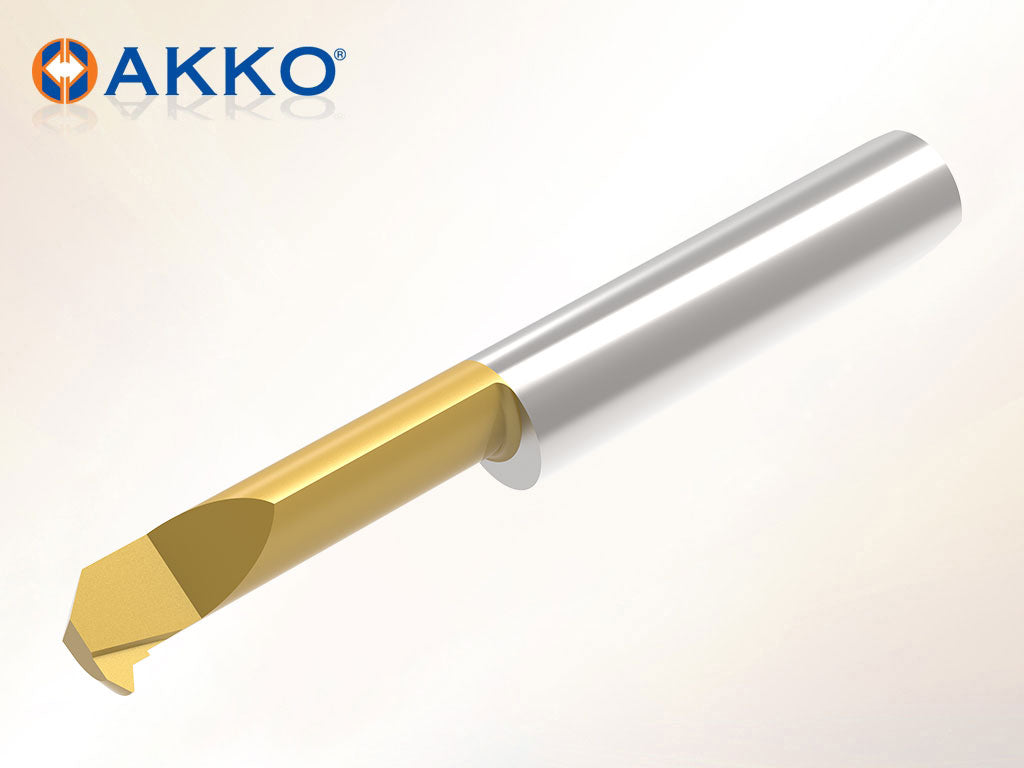

AKKO APT01 Threading Mini Cut Tool
AKKO APT01 Threading Mini Cut Tool - dimension drawing
AKKO APT01 Threading Mini Cut Tool
AKKO APT01 Threading Mini Cut Tool - dimension drawing
AKKO

AKKO APT01 Threading Mini Cut Tool

Out of stock
SKU: APT.06.152.100
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAPT.06.152.100 SKUAPT.06.152.100

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO APT01 Threading Mini Cut Tool from the AKKO Threading Mini Cut Tools range. 16 sizes listed below.

Sizes and dimensions (mm)

AKKO code Hand (R/L) LH S W L2 Ødmin tmax ØD a d f PiTCH min PiTCH maks
APT.06.152.100 R 18 0.55 0.12 15.2 6.2 0.7 6 5.95 3.95 2.95 1 1.25
APT.06.203.150 R 23 0.8 0.18 20.3 6.2 0.98 6 5.95 3.95 2.95 1.5 1.75
APT.04.152.080 R 18 0.45 0.1 15.2 3.9 0.46 4 3.65 2.7 1.95 0.8 1
APT.04.152.050 R 18 0.35 0.06 15.2 4.2 0.4 4 3.95 2.95 1.95 0.5 0.7
APT.05.152.100 R 18 0.55 0.12 15.2 4.8 0.7 5 4.55 3.55 2.25 1 1.25
APT.05.203.100 R 23 0.55 0.12 20.3 4.8 0.7 5 4.55 3.55 2.25 1 1.25
APT.05.254.100 R 28 0.55 0.12 25.4 4.8 0.7 5 4.55 3.55 2.25 1 1.25
APT.05.152.075 R 18 0.45 0.09 15.2 5.1 0.57 5 4.85 3.65 2.4 0.75 1
APT.05.152.050 R 18 0.35 0.06 15.2 5.2 0.43 5 4.95 3.75 2.45 0.5 0.75
APT.06.152.125 R 18 0.55 0.12 15.2 6.2 0.7 6 5.95 3.95 2.95 1 1.25
APT.06.152.150 R 18 0.75 0.16 15.2 6.2 0.84 6 5.95 3.95 2.95 1.25 1.5
APT.06.203.125 R 23 0.75 0.16 20.3 6.2 0.84 6 5.95 3.95 2.95 1.25 1.5
APT.06.254.125 R 28 0.75 0.16 25.4 6.2 0.84 6 5.95 3.95 2.95 1.25 1.5
APT.06.152.175 R 18 0.8 0.18 15.2 6.2 0.98 6 5.95 3.95 2.95 1.5 1.75
APT.06.203.175 R 23 0.8 0.18 20.3 6.2 0.98 6 5.95 3.95 2.95 1.5 1.75
APT.06.254.175 R 28 0.8 0.18 25.4 6.2 0.98 6 5.95 3.95 2.95 1.5 1.75

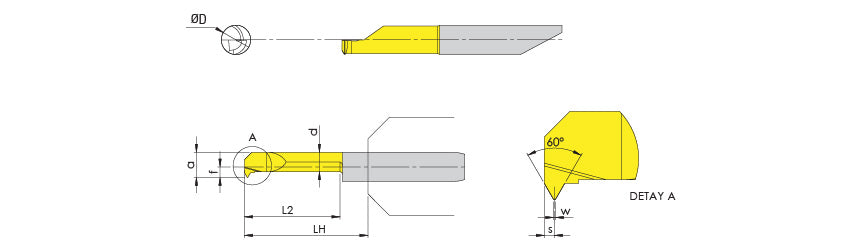

Dimension key (letters as on the drawing):

  • LH: Head/neck length
  • S: Thickness
  • W: Width

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
