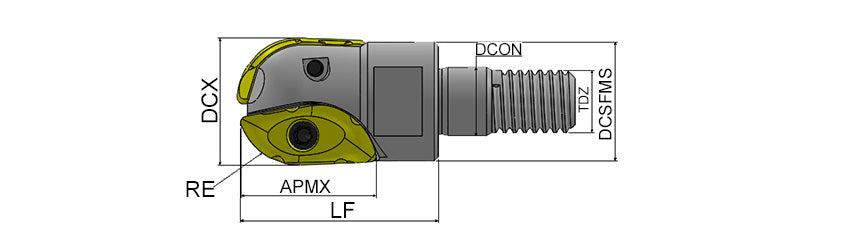

AKKO APMR-XP Ball Nose Modular End Mill - dimension drawing
AKKO APMR-XP Ball Nose Modular End Mill - dimension drawing
AKKO

AKKO APMR-XP Ball Nose Modular End Mill

Out of stock
SKU: APMR-XP16-D16-M08-L25
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAPMR-XP16-D16-M08-L25 SKUAPMR-XP16-D16-M08-L25

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

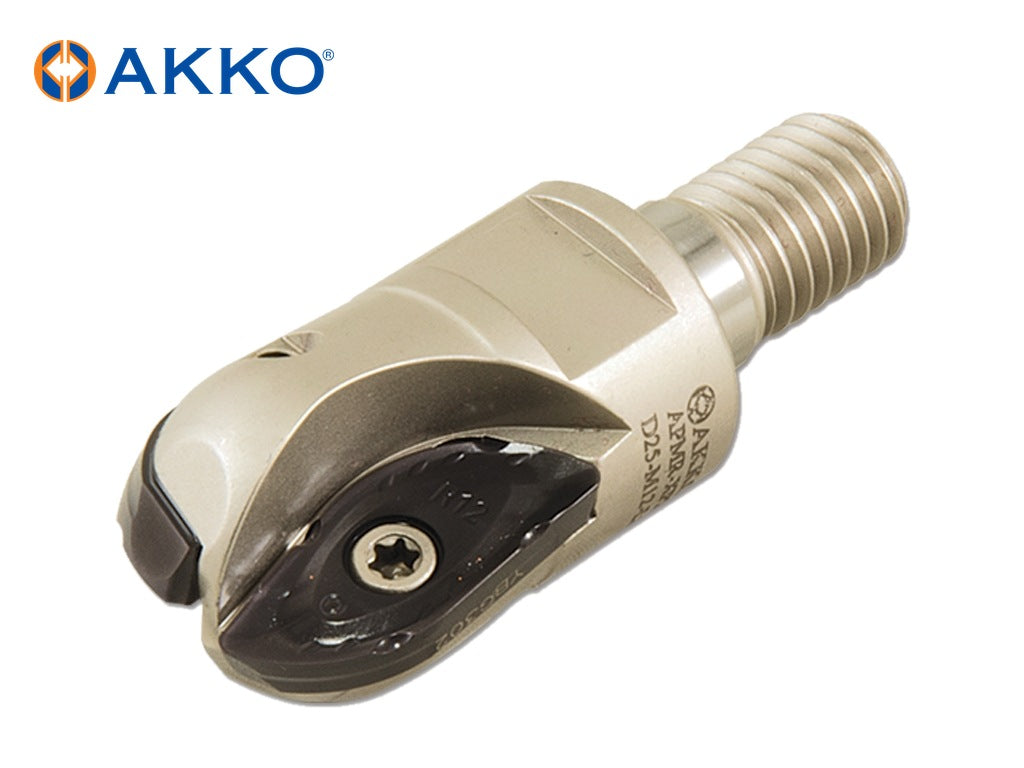

AKKO APMR-XP – Ball Nose Modular End Mill from the AKKO Ball Nose Modular End Mills (Screw Type) range. For inserts: XPHT 16R0803, XPHT 20R10T3, XPHT 25R1204. 3 sizes listed below.

Specifications

  • Number of Flutes (ZEFP): 2
  • Insert Type: XPHT

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Functional Length (LF, mm) Thread Diameter Size (TDZ) Corner Radius (RE, mm) Machine Side Connection Face Diameter (DCSFMS, mm) Insert Size
APMR-XP16-D16-M08-L25 16 25 M08 8 14.75 16R0803
APMR-XP20-D20-M10-L30 20 30 M10 10 18 20R10T3
APMR-XP25-D25-M12-L40 25 40 M12 12.5 22 25R1204

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
APMR-XP16-D16-M08-L25 82-T08 3008-M2.5X6
APMR-XP20-D20-M10-L30 82-T10 3010-M3.5X7
APMR-XP25-D25-M12-L40 82-T15 4015-M4X9

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
