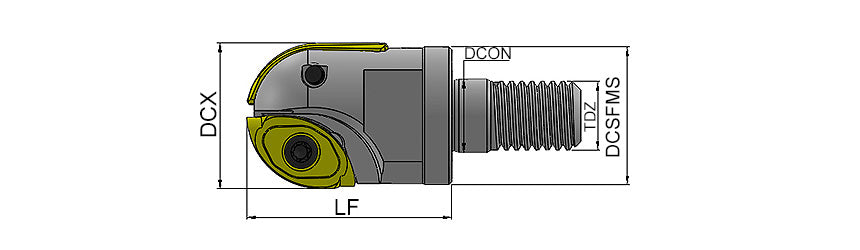

AKKO APMR-SWB Ball Nose Modular End Mill - dimension drawing

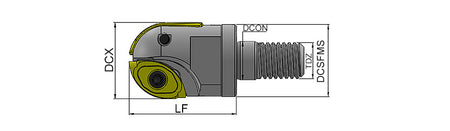

AKKO APMR-SWB Ball Nose Modular End Mill - dimension drawing
AKKO

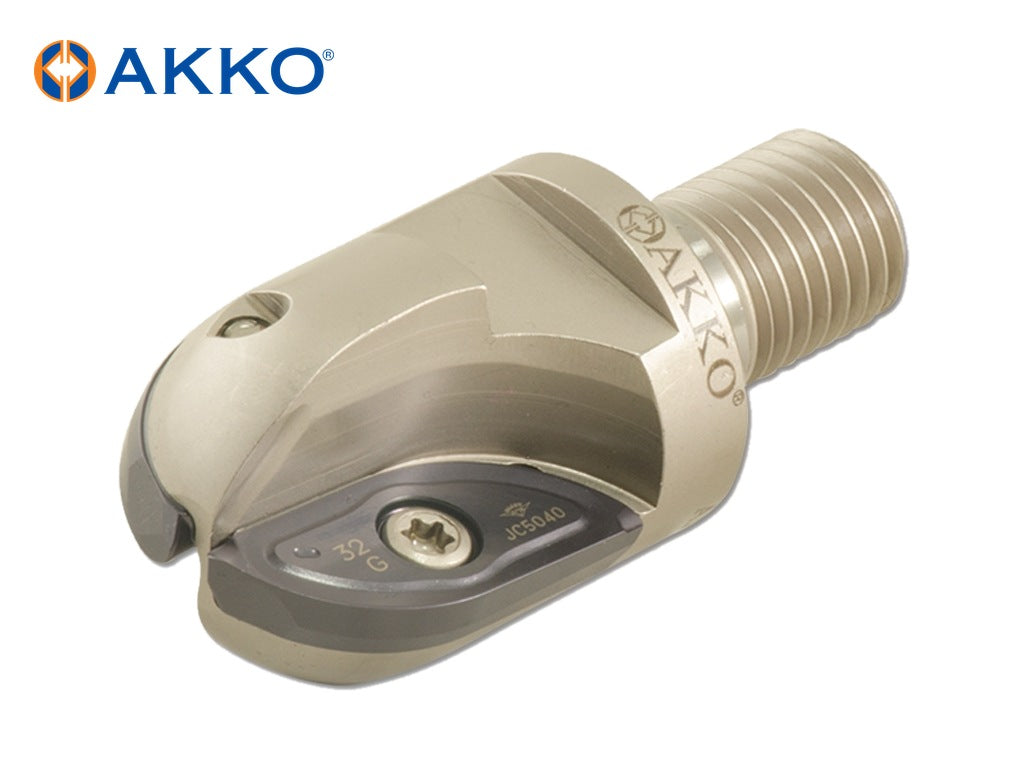

AKKO APMR-SWB Ball Nose Modular End Mill

Out of stock
SKU: APMR-SWB225-D25-M12-L35
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAPMR-SWB225-D25-M12-L35 SKUAPMR-SWB225-D25-M12-L35

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO APMR-SWB – Ball Nose Modular End Mill from the AKKO Ball Nose Modular End Mills (Screw Type) range. For inserts: SWB225HM-HS, SWB230HM-HS, SWB232HM-HS. 3 sizes listed below.

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Functional Length (LF, mm) Thread Diameter Size (TDZ) Corner Radius (RE, mm) Machine Side Connection Face Diameter (DCSFMS, mm) Insert Type
APMR-SWB225-D25-M12-L35 25 35 M12 12.5 23.5 SWB225HM-HS
APMR-SWB230-D30-M16-L43 30 43 M16 15 28 SWB230HM-HS
APMR-SWB232-D32-M16-L43 32 43 M16 16 30 SWB232HM-HS

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
APMR-SWB225-D25-M12-L35 82-T15 4015-M4X9
APMR-SWB230-D30-M16-L43 80-T20 1020-M5X11
APMR-SWB232-D32-M16-L43 80-T20 1020-M5X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
