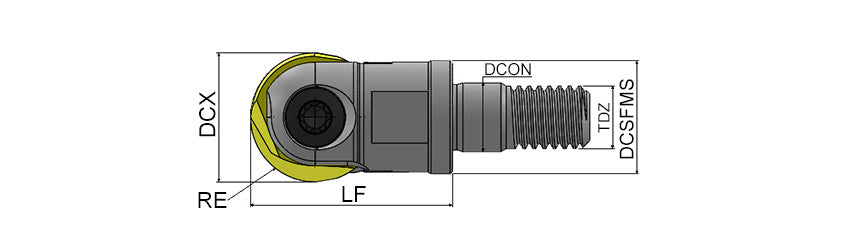

AKKO APMR-P Ball Nose Modular End Mill - dimension drawing

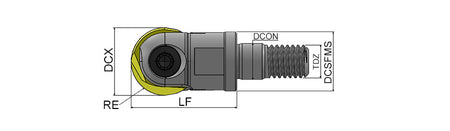

AKKO APMR-P Ball Nose Modular End Mill - dimension drawing
AKKO

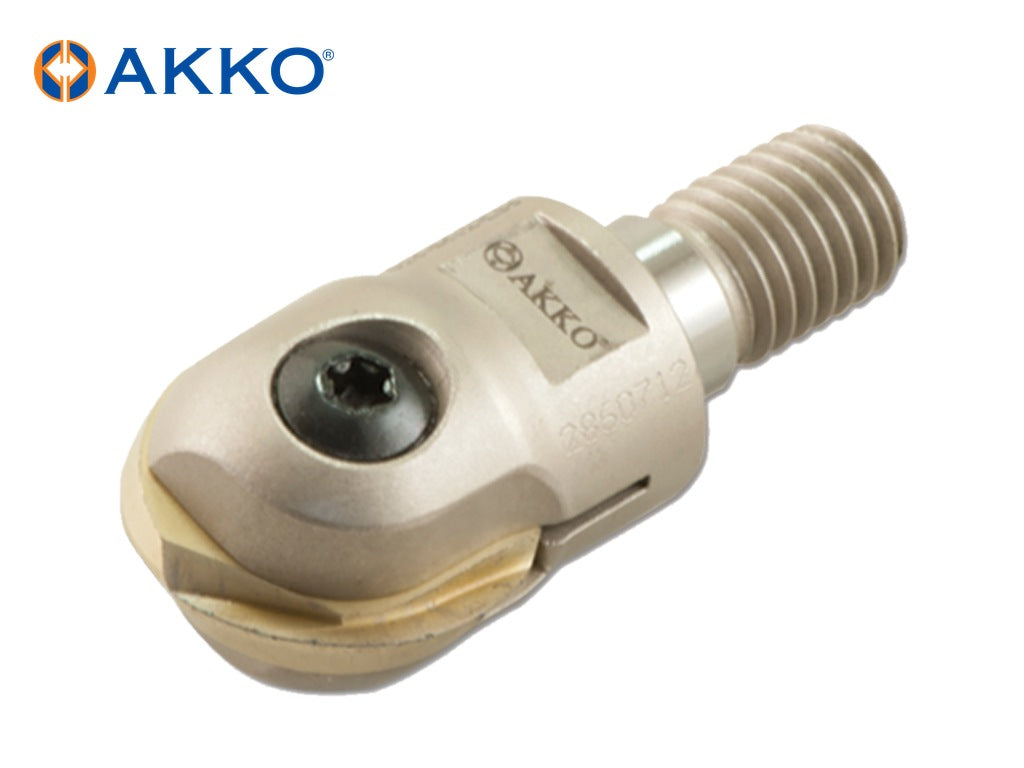

AKKO APMR-P Ball Nose Modular End Mill

Out of stock
SKU: APMR-P3216-D16-M08-L25
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAPMR-P3216-D16-M08-L25 SKUAPMR-P3216-D16-M08-L25

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO APMR-P – Ball Nose Modular End Mill from the AKKO Ball Nose Modular End Mills (Screw Type) range. For inserts: P3216, P3220, P3225, P3232. 4 sizes listed below.

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Functional Length (LF, mm) Thread Diameter Size (TDZ) Corner Radius (RE, mm) Machine Side Connection Face Diameter (DCSFMS, mm) Insert Type
APMR-P3216-D16-M08-L25 16 25 M08 8 14 P3216
APMR-P3220-D20-M10-L30 20 30 M10 10 18 P3220
APMR-P3225-D25-M12-L35 25 35 M12 12.5 21 P3225
APMR-P3232-D32-M16-L43 32 43 M16 16 29 P3232

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Allen Key
APMR-P3216-D16-M08-L25 80-T20 1220-M5X0.5X12 –
APMR-P3220-D20-M10-L30 80-T20 1220-M5X0.5X15 –
APMR-P3225-D25-M12-L35 80-T20 1220-M6X0.75X20 –
APMR-P3232-D32-M16-L43 – 1204-M8X0.75X26 AAL-05-4

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
