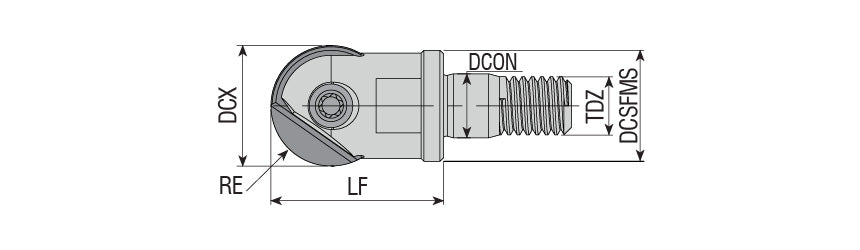

AKKO APMR-BNM-H Ball Nose Modular End Mill - dimension drawing

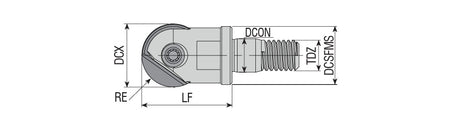

AKKO APMR-BNM-H Ball Nose Modular End Mill - dimension drawing
AKKO

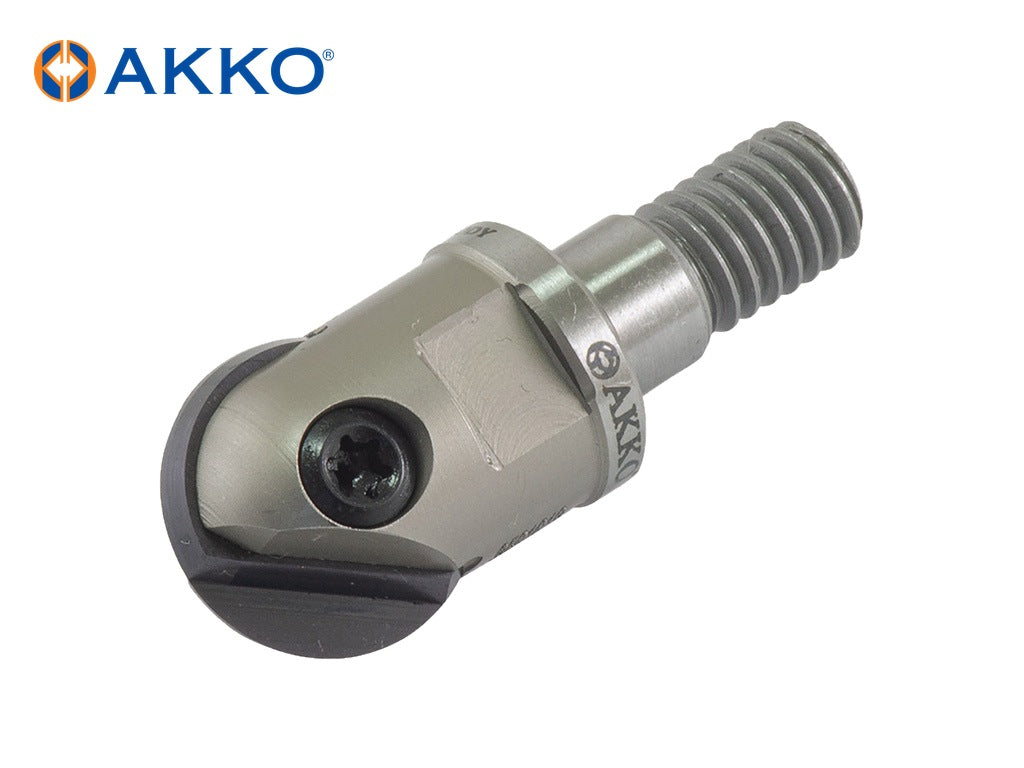

AKKO APMR-BNM-H Ball Nose Modular End Mill

Out of stock
SKU: APMR-BNM12-D12-M06-L20
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAPMR-BNM12-D12-M06-L20 SKUAPMR-BNM12-D12-M06-L20

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO APMR-BNM-H – Ball Nose Modular End Mill from the AKKO Ball Nose Modular End Mills (Screw Type) range. For inserts: BNM 120-S, BNM 160-S, BNM 200-S. 3 sizes listed below.

Specifications

  • Number of Flutes (ZEFP): 6
  • Insert Type: BNM

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Functional Length (LF, mm) Thread Diameter Size (TDZ) Corner Radius (RE, mm) Machine Side Connection Face Diameter (DCSFMS, mm) Insert Size
APMR-BNM12-D12-M06-L20 12 20 M06 6 11 120-S
APMR-BNM16-D16-M08-L23 16 23 M08 8 14.75 160-S
APMR-BNM20-D20-M10-L30 20 30 M10 10 18 200-S

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
APMR-BNM12-D12-M06-L20 82-T10 1210-M3.5X9.6
APMR-BNM16-D16-M08-L23 82-T15 1215-M4X13.5
APMR-BNM20-D20-M10-L30 80-T20 1220-M5X0.5X15

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
