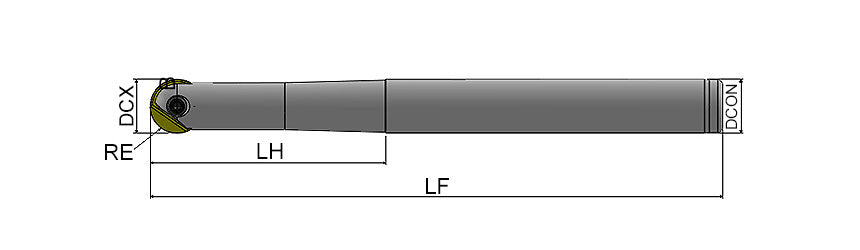

AKKO APMR-BNM Ball Nose End Mill - dimension drawing

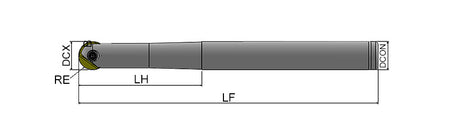

AKKO APMR-BNM Ball Nose End Mill - dimension drawing
AKKO

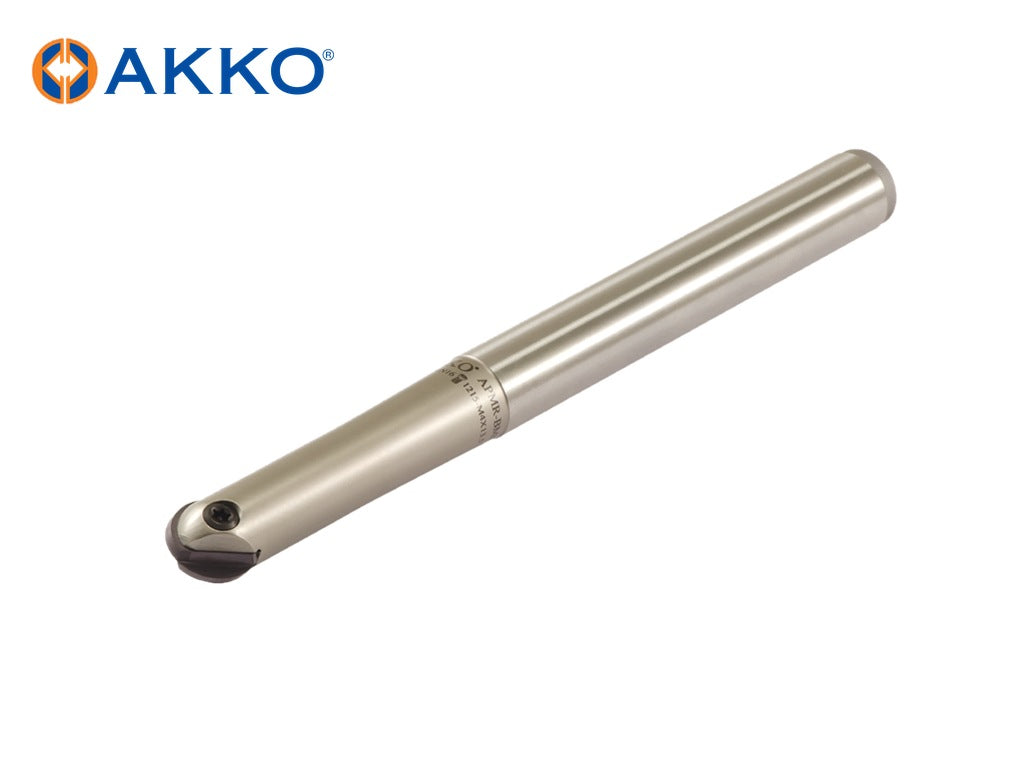

AKKO APMR-BNM Ball Nose End Mill

Out of stock
SKU: APMR-BNM12-D12-C12-L130
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAPMR-BNM12-D12-C12-L130 SKUAPMR-BNM12-D12-C12-L130

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO APMR-BNM – Ball Nose End Mill from the AKKO Ball Nose End Mills range. For inserts: BNM 120-S, BNM 160-S, BNM 200-S, BNM 250-S. 9 sizes listed below.

Specifications

  • Insert Type: BNM

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Corner Radius (RE, mm) Machine Side Connection Face Diameter (DCSFMS, mm) Number of Flutes (ZEFP) Neck Length (LH, mm) Insert Size
APMR-BNM12-D12-C12-L130 12 12 130 6 12 5 32 120-S
APMR-BNM16-D16-C16-L175 16 16 175 8 16 7 70 160-S
APMR-BNM16-D16-C16-L200 16 16 200 8 16 5 100 160-S
APMR-BNM20-D20-C20-L160 20 20 160 10 20 7 70 200-S
APMR-BNM20-D20-C20-L200 20 20 200 10 20 4 100 200-S
APMR-BNM20-D20-C20-L250 20 20 250 10 20 5 150 200-S
APMR-BNM25-D25-C25-L160 25 25 160 12.5 25 6 70 250-S
APMR-BNM25-D25-C25-L200 25 25 200 12.5 25 7 100 250-S
APMR-BNM25-D25-C25-L250 25 25 250 12.5 25 – 150 250-S

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
APMR-BNM12-D12-C12-L130 82-T10 1210-M3.5X9.6
APMR-BNM16-D16-C16-L175 82-T15 1215-M4X13.5
APMR-BNM16-D16-C16-L200 82-T15 1215-M4X13.5
APMR-BNM20-D20-C20-L160 80-T20 1220-M5X0.5X15
APMR-BNM20-D20-C20-L200 80-T20 1220-M5X0.5X15
APMR-BNM20-D20-C20-L250 80-T20 1220-M5X0.5X15
APMR-BNM25-D25-C25-L160 80-T20 1220-M6X0.75X20
APMR-BNM25-D25-C25-L200 80-T20 1220-M6X0.75X20
APMR-BNM25-D25-C25-L250 80-T20 1220-M6X0.75X20

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
