AKKO APHX Allen Punch Set
AKKO APHX Allen Punch Set - dimension drawing
AKKO APHX Allen Punch Set
AKKO APHX Allen Punch Set - dimension drawing
AKKO

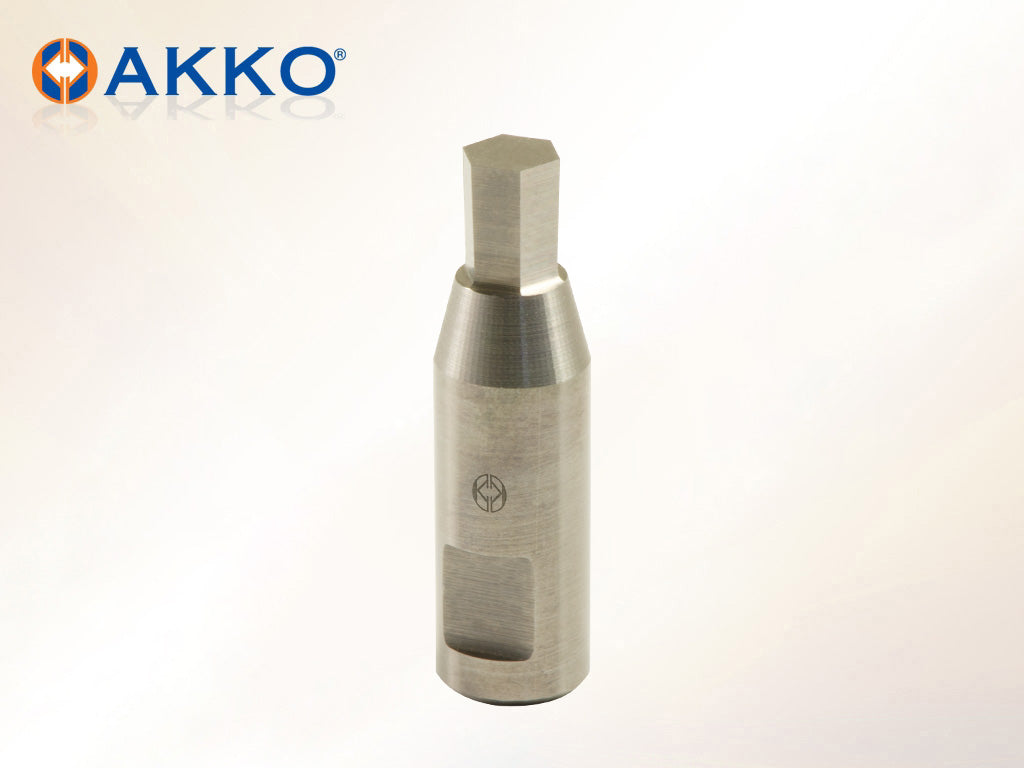

AKKO APHX Allen Punch Set

Out of stock
SKU: APHX-0015
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAPHX-0015 SKUAPHX-0015

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO APHX Allen Punch Set from the AKKO Allen Punch Sets range. 11 sizes listed below.

Sizes and dimensions (mm)

AKKO code Hand (R/L) L Socket Number L2 ØD
APHX-0015 R 30 A1.5 3 8
APHX-0020 R 30 A2.0 4 8
APHX-0025 R 30 A2.5 5 8
APHX-0030 R 30 A3.0 6 8
APHX-0035 R 30 A3.5 6 8
APHX-0040 R 30 A4.0 8 8
APHX-0045 R 30 A4.5 9 8
APHX-0050 R 30 A5.0 10 8
APHX-0060 R 30 A6.0 11 8
APHX-0080 R 30 A8.0 12 8
APHX-0100 R 30 A10 12 8

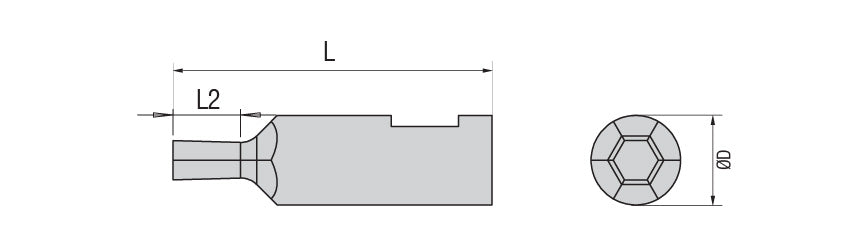

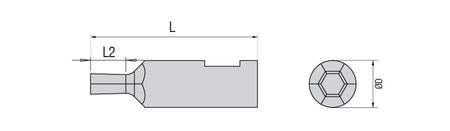

Dimension key (letters as on the drawing):

  • L: Length

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
