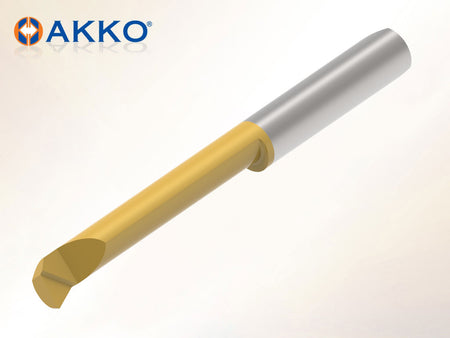

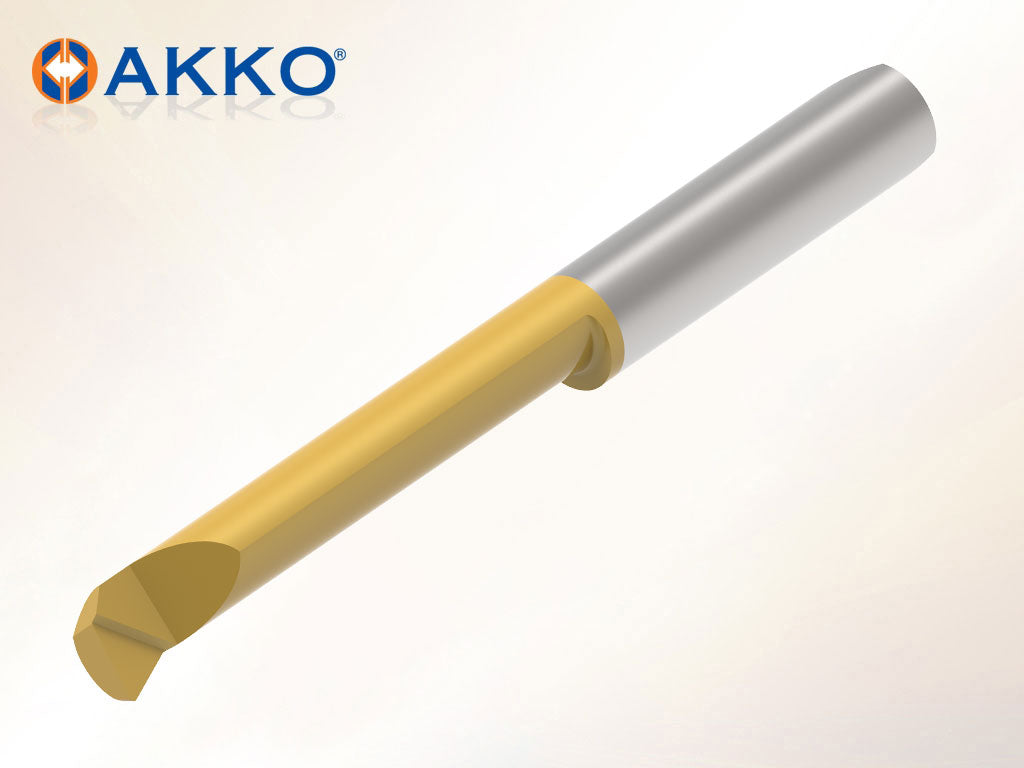

AKKO APB Internal Mini Cut Tool
AKKO APB Internal Mini Cut Tool

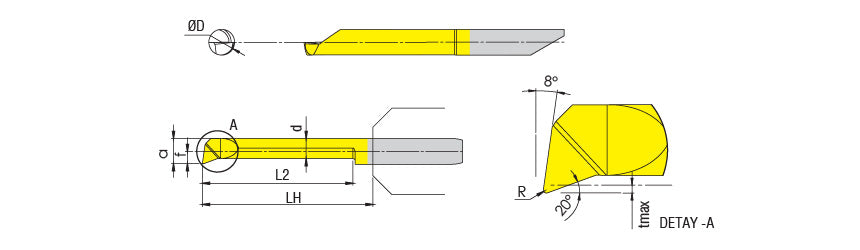

AKKO APB Internal Mini Cut Tool - dimension drawing
AKKO APB Internal Mini Cut Tool - dimension drawing
AKKO APB Internal Mini Cut Tool
AKKO APB Internal Mini Cut Tool
AKKO APB Internal Mini Cut Tool - dimension drawing
AKKO APB Internal Mini Cut Tool - dimension drawing
AKKO

AKKO APB Internal Mini Cut Tool

Out of stock
SKU: APB.04.102.015.32
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAPB.04.102.015.32 SKUAPB.04.102.015.32

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO APB Internal Mini Cut Tool from the AKKO Internal Mini Cut Tools range. 35 sizes listed below.

Sizes and dimensions (mm)

AKKO code Hand (R/L) LH L2 Ødmin R tmax ØD a d f
APB.04.102.015.32 R 13 10.2 3.2 0.15 0.12 4 2.95 2.55 1.45
APB.04.152.015.32 R 18 15.2 3.2 0.15 0.2 4 2.95 2.55 1.45
APB.04.203.015.32 R 23 20.3 3.2 0.15 0.12 4 2.95 2.55 1.45
APB.04.254.015.32 R 28 25.4 3.2 0.15 0.2 4 2.95 2.55 1.45
APB.04.305.015.32 R 33 30.5 3.2 0.15 0.2 4 2.95 2.55 1.45
APB.04.356.015.32 R 38 35.6 3.2 0.15 0.2 4 2.95 2.55 1.45
APB.04.406.020 R 43 40.6 4.2 0.15 0.3 4 3.95 3.45 1.95
APB.04.102.015 R 13 10.2 4.2 0.15 0.3 4 3.95 3.45 1.95
APB.04.152.015 R 18 15.2 4.2 0.15 0.3 4 3.95 3.45 1.95
APB.04.203.015 R 23 20.3 4.2 0.15 0.3 4 3.95 3.45 1.95
APB.04.254.015 R 28 25.4 4.2 0.15 0.3 4 3.95 3.45 1.95
APB.04.305.015 R 33 30.5 4.2 0.15 0.3 4 3.95 3.45 1.95
APB.04.356.015 R 38 35.6 4.2 0.15 0.3 4 3.95 3.45 1.95
APB.05.102.020 R 13 10.2 5.2 0.2 0.5 5 4.95 4.25 2.45
APB.05.152.020 R 18 15.2 5.2 0.2 0.5 5 4.95 4.25 2.45
APB.05.203.020 R 23 20.3 5.2 0.2 0.5 5 4.95 4.25 2.45
APB.05.254.020 R 28 25.4 5.2 0.2 0.5 5 4.95 4.25 2.45
APB.05.305.020 R 33 30.5 5.2 0.2 0.5 5 4.95 4.25 2.45
APB.05.356.020 R 38 35.6 5.2 0.2 0.5 5 4.95 4.25 2.45
APB.05.406.020 R 43 40.6 5.2 0.2 0.5 5 4.95 4.25 2.45
APB.06.102.020 R 13 10.2 6.2 0.2 0.5 6 5.95 5.25 2.95
APB.06.152.020 R 18 15.2 6.2 0.2 0.5 6 5.95 5.25 2.95
APB.06.203.020 R 23 20.3 6.2 0.2 0.5 6 5.95 5.25 2.95
APB.06.254.020 R 28 25.4 6.2 0.2 0.5 6 5.95 5.25 2.95
APB.06.305.020 R 33 30.5 6.2 0.2 0.5 6 5.95 5.25 2.95
APB.06.356.020 R 38 35.6 6.2 0.2 0.5 6 5.95 5.25 2.95
APB.06.406.020 R 43 40.6 6.2 0.2 0.5 6 5.95 5.25 2.95
APB.06.508.020 R 53 50.8 6.2 0.2 0.5 6 5.95 5.25 2.95
APB.07.254.020 R 28 25.4 7.2 0.2 0.5 7 6.95 6.25 3.45
APB.07.305.020 R 33 30.5 7.2 0.2 0.5 7 6.95 6.25 3.45
APB.07.356.020 R 38 35.6 7.2 0.2 0.5 7 6.95 6.25 3.45
APB.07.406.020 R 43 40.6 7.2 0.2 0.5 7 6.95 6.25 3.45
APB.07.508.020 R 53 50.8 7.2 0.2 0.5 7 6.95 6.25 3.45
APB.07.608.020 R 63 60.8 7.2 0.2 0.5 7 6.95 6.25 3.45

Dimension key (letters as on the drawing):

  • LH: Head/neck length
AKKO code Insert Hand (R/L) LH L2 Ødmin R tmax ØD a d f
APB05.356.020 APB.05.356.020 R 38 35.6 5.2 0.2 0.5 5 4.95 4.25 2.45

Dimension key (letters as on the drawing):

  • LH: Head/neck length

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
