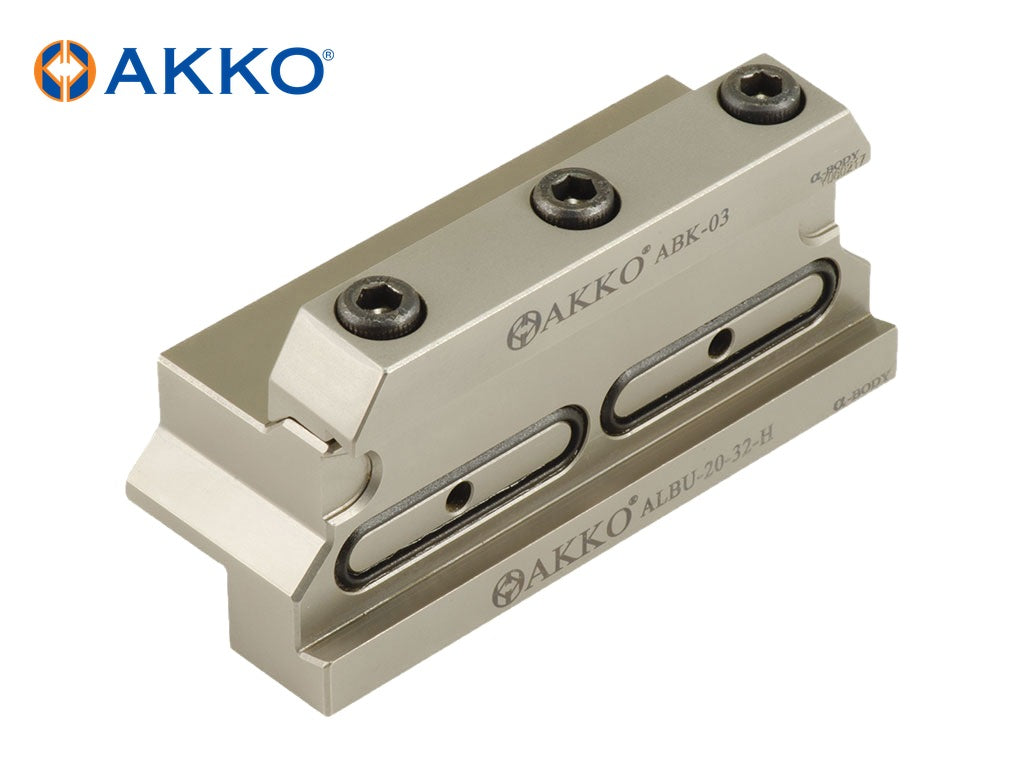

AKKO ALBU-H – Parting Blade Block from the AKKO Blocks for Parting and Deep Grooving Blades range. 4 sizes listed below.

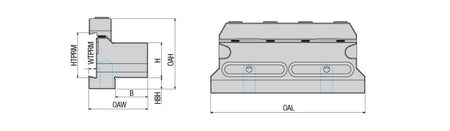

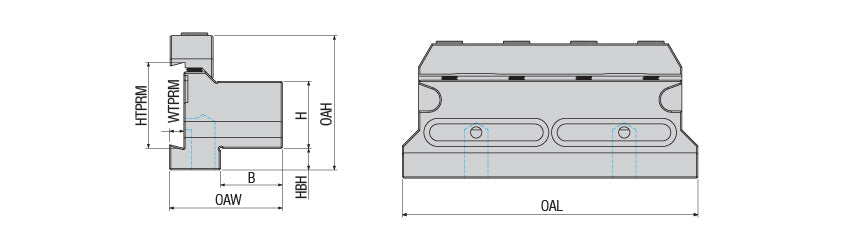

| AKKO code | Shank Height (H, mm) | Shank Width (B, mm) | Functional Length (LF, mm) | Functional Height (HF, mm) | Overall Block Height (mm) |
|---|---|---|---|---|---|
| ALBU-20-126-H | 20 | 20 | – | – | – |
| ALBU-20-32-H | 20 | 20 | 100 | 20 | 36.5 |
| ALBU-25-32-H | – | – | 110 | 25 | 50 |
| ALBU-32-32-H | – | – | 110 | 32 | 40.5 |
| AKKO code | Allen Key | Clamp | O-Ring / X-Ring | Set Screw | Hexagon Screw |
|---|---|---|---|---|---|
| ALBU-20-126-H | – | – | – | – | – |
| ALBU-20-32-H | AAL-07-5 | ABK-03 | AOR-43 | 2705-G1/8x5.5 | 2505-M6x16 |
| ALBU-25-32-H | AAL-07-5 | ABK-04 | AOR-46 | 2705-G1/8x5.5 | 2505-M6x16 |
| ALBU-32-32-H | AAL-07-5 | ABK-04 | AOR-46 | 2705-G1/8x5.5 | 2505-M6x16 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
