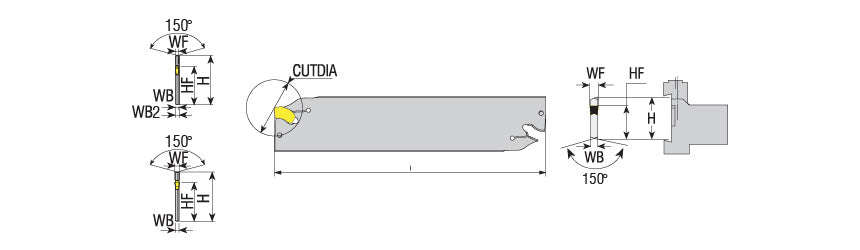

AKKO AKL-SX Parting and Deep Grooving Blade - dimension drawing

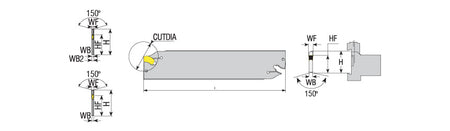

AKKO AKL-SX Parting and Deep Grooving Blade - dimension drawing
AKKO

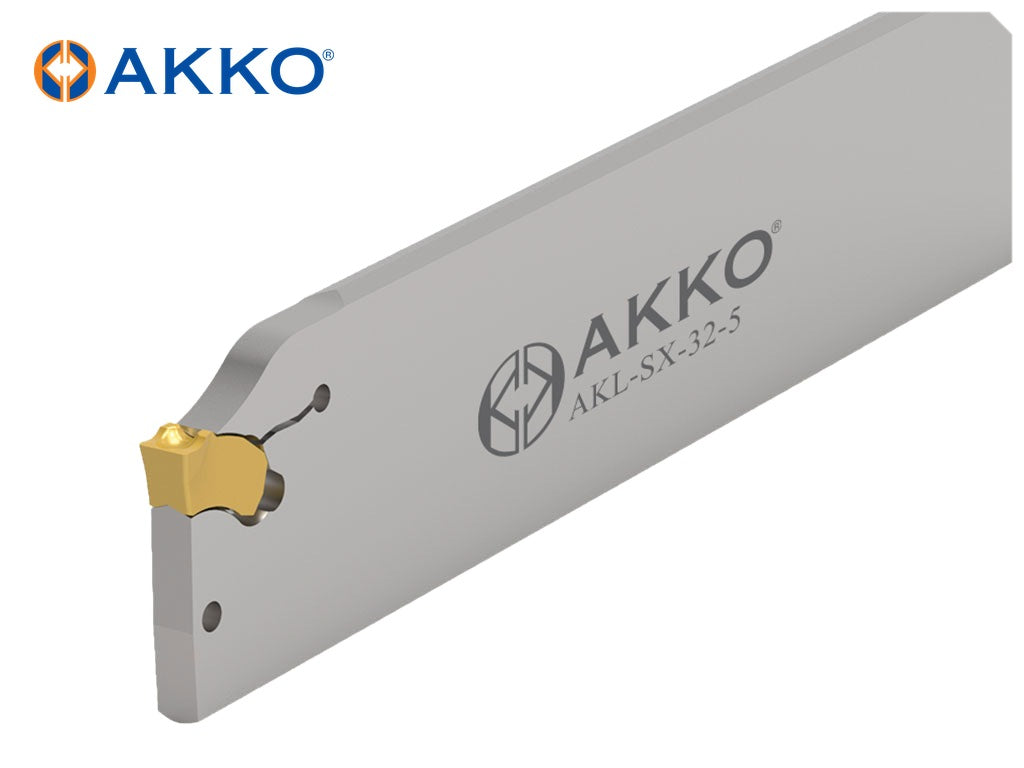

AKKO AKL-SX Parting and Deep Grooving Blade

Out of stock
SKU: AKL-SX-32-3
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAKL-SX-32-3 SKUAKL-SX-32-3

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AKL-SX – Parting and Deep Grooving Blade from the AKKO Blades for Parting and Deep Grooving range. For inserts: SX-3E 3 mm, SX-4E 4 mm, SX-5E 5 mm, SX-6E 6 mm. 4 sizes listed below.

Specifications

  • Shank Height (H): 32 mm
  • Functional Length (LF): 150 mm
  • Coolant Through: No

Sizes and dimensions

AKKO code Functional Width (WF, mm) Functional Height (HF, mm) Body Width (WB, mm) Insert Size (mm) Insert Style
AKL-SX-32-3 3 24.50 2.40 3 SX-3E
AKL-SX-32-4 4 24.50 3.40 4 SX-4E
AKL-SX-32-5 5 24.40 4.30 5 SX-5E
AKL-SX-32-6 6 24.30 5.30 6 SX-6E

Spare parts (AKKO codes)

  • Blade Key: ALA-04

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
