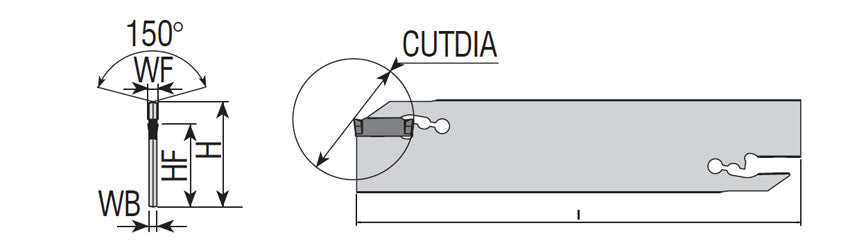

AKKO AKL-SGC Parting and Deep Grooving Blade - dimension drawing
AKKO AKL-SGC Parting and Deep Grooving Blade - dimension drawing
AKKO

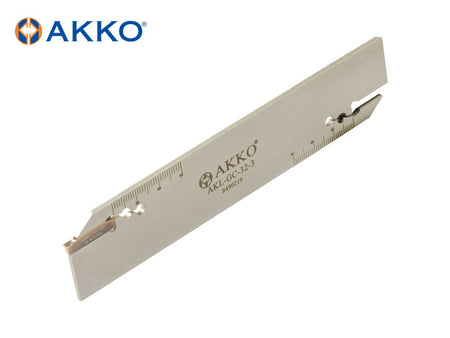

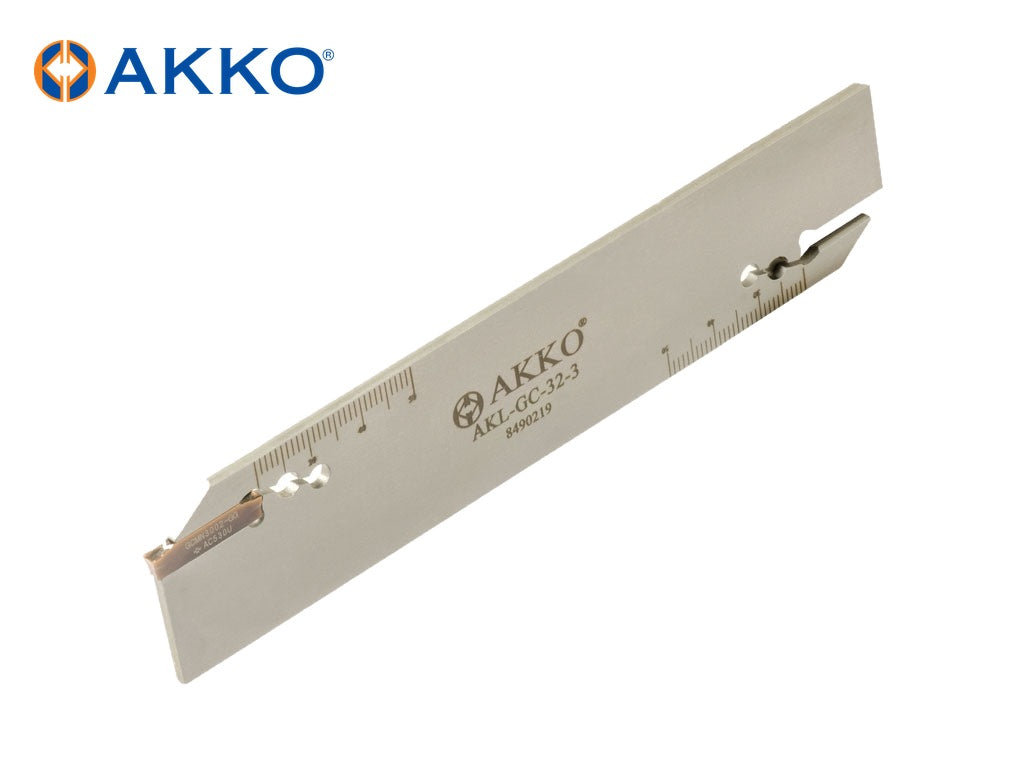

AKKO AKL-SGC Parting and Deep Grooving Blade

Out of stock
SKU: AKL-SGC-26-3
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAKL-SGC-26-3 SKUAKL-SGC-26-3

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AKL-SGC – Parting and Deep Grooving Blade from the AKKO Blades for Parting and Deep Grooving range. For inserts: GCM 3 mm. 2 sizes listed below.

Specifications

  • Functional Width (WF): 3 mm
  • Maximum Parting Diameter (CUTDIA): 39 mm
  • Coolant Through: No
  • Body Width 2 (WB2): 2.40 mm
  • Insert Size: 3 mm
  • Insert Style: GCM

Sizes and dimensions

AKKO code Shank Height (H, mm) Functional Length (LF, mm) Functional Height (HF, mm)
AKL-SGC-26-3 26 110 21.40
AKL-SGC-32-3 32 150 25

Spare parts (AKKO codes)

  • Blade Key: ALA-02

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
