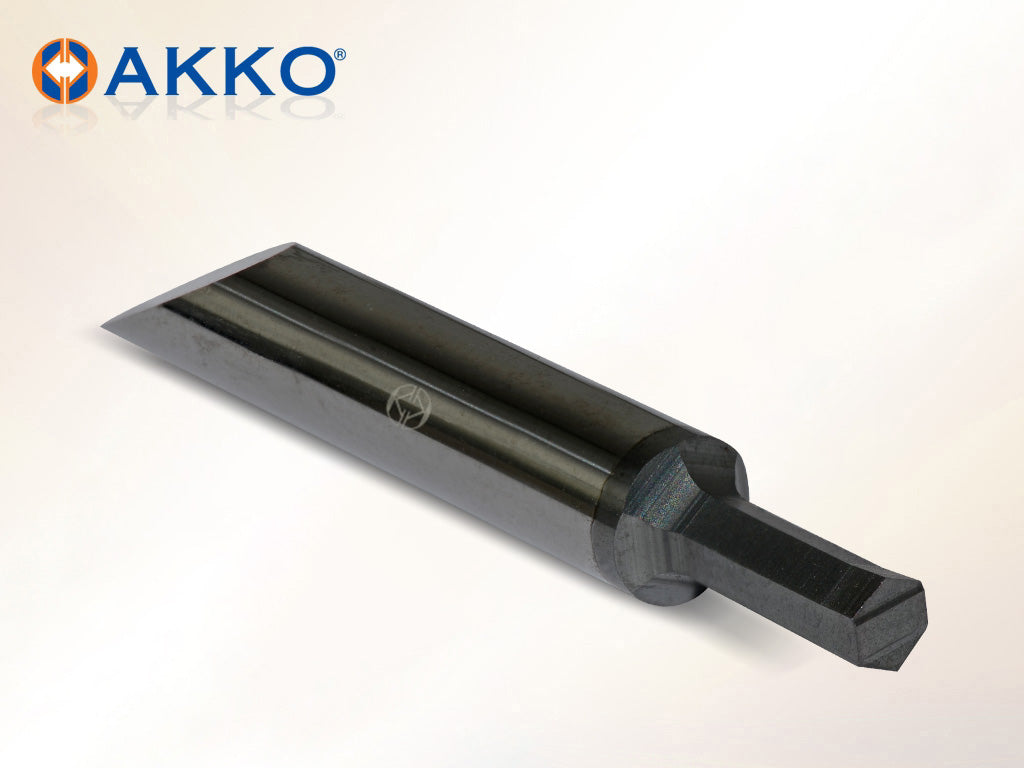

AKKO AKHX Allen Broach Set
AKKO AKHX Allen Broach Set - dimension drawing
AKKO AKHX Allen Broach Set
AKKO AKHX Allen Broach Set - dimension drawing
AKKO

AKKO AKHX Allen Broach Set

Out of stock
SKU: AKHX-025
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAKHX-025 SKUAKHX-025

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AKHX Allen Broach Set from the AKKO Allen Broach Sets range. 6 sizes listed below.

Sizes and dimensions (mm)

AKKO code Hand (R/L) LH Socket Number L2 ØD r tmax
AKHX-025 R - 2.5 4.5 6 0.05 -
AKHX-035 R - 3.5 7 6 0.05 -
AKHX-002-002 R 5 2 3 6 0.05 0.6
AKHX-003-003 R 8 3 6 6 0.05 1
AKHX-004-006 R 10 4-6 8 6 0.1 1
AKHX-007-012 R 15 7-12 12 8 0.15 1.5

Dimension key (letters as on the drawing):

  • LH: Head/neck length

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
