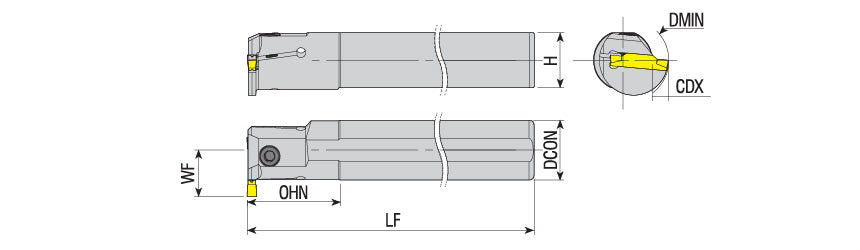

AKKO AIKT-151-R/L Internal Grooving Toolholder - dimension drawing
AKKO AIKT-151-R/L Internal Grooving Toolholder - dimension drawing
AKKO

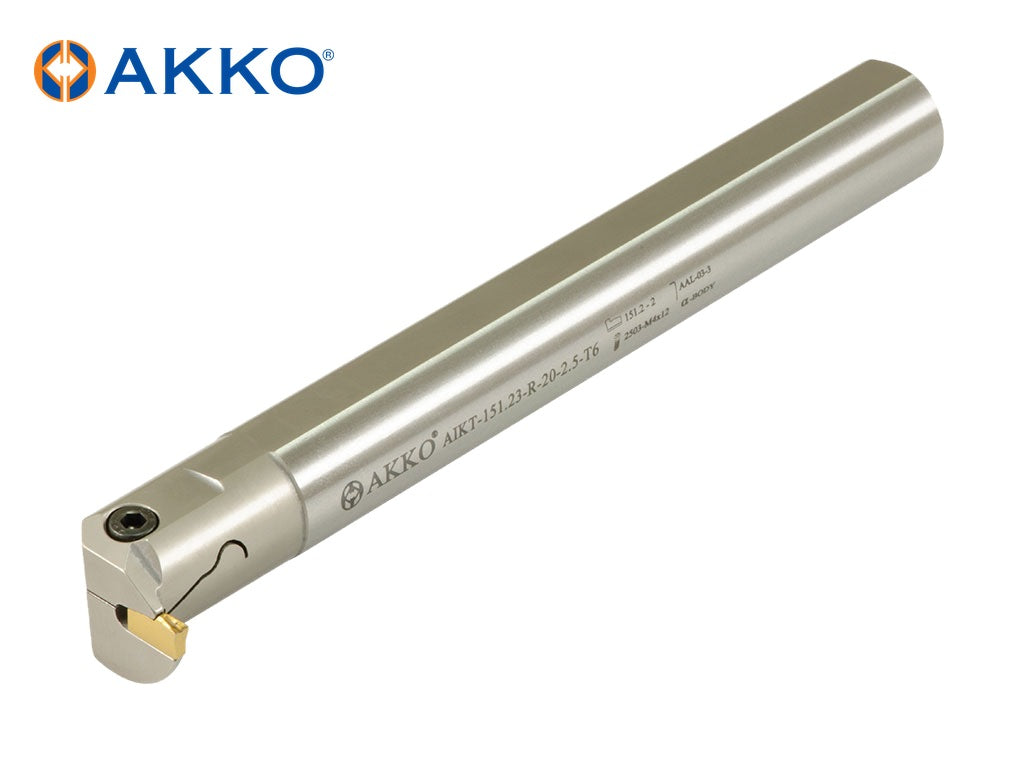

AKKO AIKT-151-R/L Internal Grooving Toolholder

Out of stock
SKU: AIKT-151.22-L-25-3-T6
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAIKT-151.22-L-25-3-T6 SKUAIKT-151.22-L-25-3-T6

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AIKT-151-R/L – Internal Grooving Toolholder from the AKKO Internal Grooving Toolholders range. Available in right-hand and left-hand versions. For inserts: 151.23 2 mm, 151.23 2.5 mm, 151.23 3 mm. 7 sizes listed below.

Specifications

  • Reinforced Type: Standard
  • Insert Style: 151.23
  • Cutting Depth Maximum (CDX): 6 mm

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin, mm) Minimum Overhang (OHN, mm) Coolant Through Insert Size (mm) Shank Diameter (mm)
AIKT-151.22-L-25-3-T6 L 25 200 18.50 37 32 No 3 25
AIKT-151.22-L-25-3-T6-H L 25 200 18.50 37 32 Yes 3 25
AIKT-151.22-R-25-3-T6 R 25 200 18.50 37 32 No 3 25
AIKT-151.23-L-20-2-T6 L 20 170 16 32 30 No 2 20
AIKT-151.23-L-20-2.5-T6 L 20 170 16 32 30 No 2.5 20
AIKT-151.23-R-20-2-T6 R 20 170 16 32 30 No 2 20
AIKT-151.23-R-20-2.5-T6 R 20 170 16 32 30 No 2.5 20

Spare parts (AKKO codes)

AKKO code Allen Key Hexagon Screw
AIKT-151.22-L-25-3-T6 AAL-05-4 2504-M5X16
AIKT-151.22-L-25-3-T6-H – –
AIKT-151.22-R-25-3-T6 AAL-03-3 2503-M4X12
AIKT-151.23-L-20-2-T6 AAL-03-3 2503-M4X12
AIKT-151.23-L-20-2.5-T6 AAL-03-3 2503-M4X12
AIKT-151.23-R-20-2-T6 AAL-03-3 2503-M4X12
AIKT-151.23-R-20-2.5-T6 AAL-03-3 2503-M4X12

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
