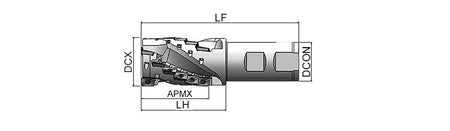

AKKO AHM90-AP S-System Helix End Mill - dimension drawing

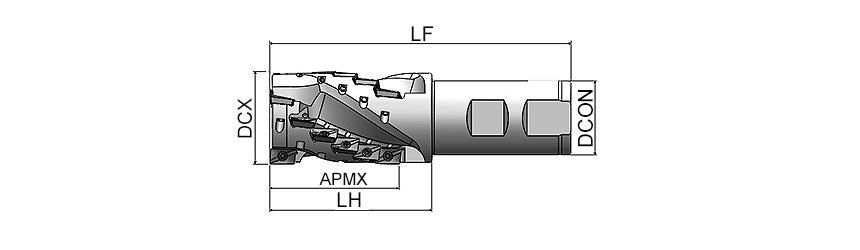

AKKO AHM90-AP S-System Helix End Mill - dimension drawing
AKKO

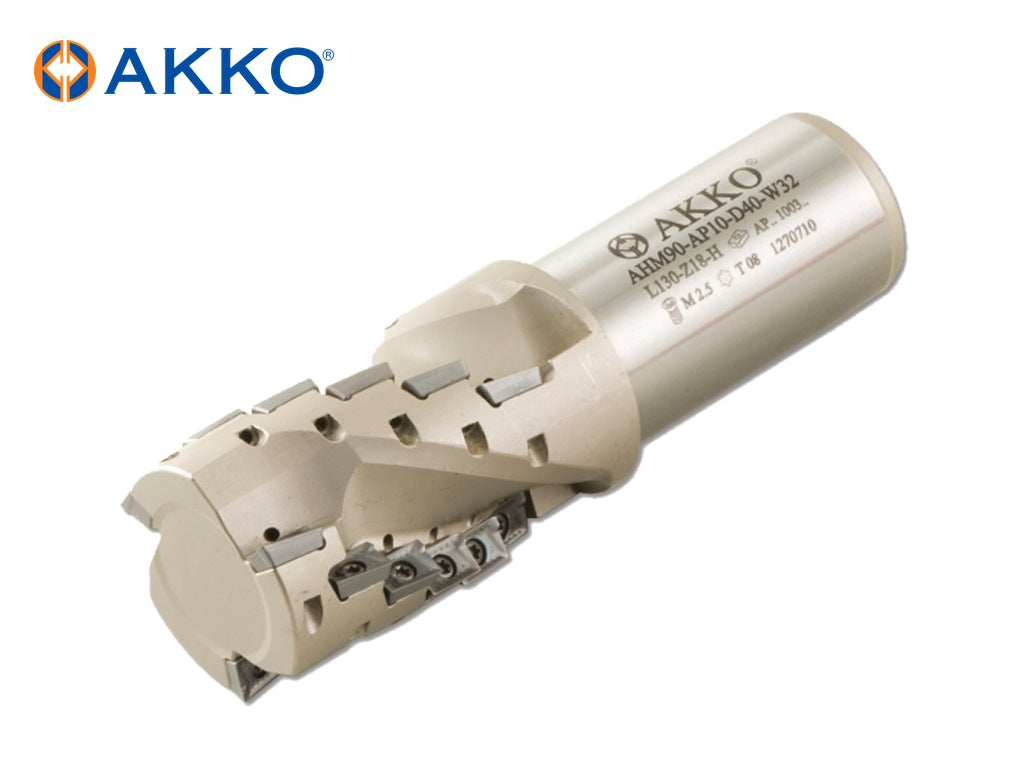

AKKO AHM90-AP S-System Helix End Mill

Out of stock
SKU: AHM90-AP10-D20-W20-L087-Z0204
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAHM90-AP10-D20-W20-L087-Z0204 SKUAHM90-AP10-D20-W20-L087-Z0204

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AHM90-AP – S-System Helix End Mill from the AKKO S-System Helix End Mills range. For inserts: APKT 1003.. 5 sizes listed below.

Specifications

  • Shank Type: Weldon
  • Side Cutting Angle (KAPR): 90°
  • Insert Size: 1003..
  • Insert Style: APKT

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Maximum Depth of Cut (APMX, mm) Number of Flutes (ZEFP) Head Length (LH, mm)
AHM90-AP10-D20-W20-L087-Z0204 20 20 87 28 4 37
AHM90-AP10-D20-W20-L087-Z0206 20 20 87 28 6 37
AHM90-AP10-D25-W25-L105-Z0208-H 25 25 105 37 8 50
AHM90-AP10-D32-W32-L115-Z0315-H 32 32 115 46 15 55
AHM90-AP10-D40-W32-L130-Z0318-H 40 32 130 55 18 55

Spare parts (AKKO codes)

  • Torx Key: 82-T08
  • Torx Screw: 3008-M2.5X6

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
