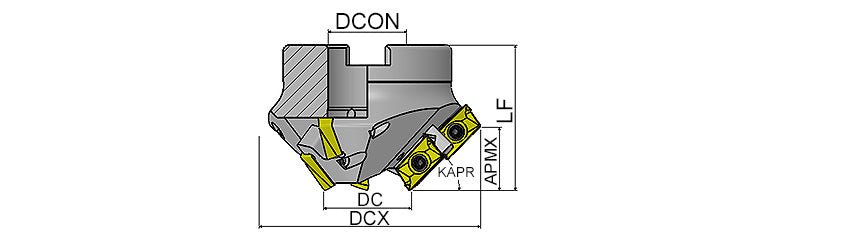

AKKO AHM-CHAMFER Helix Chamfer Milling Tool - dimension drawing

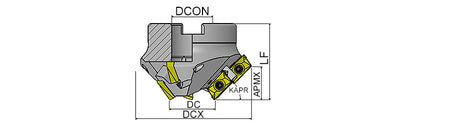

AKKO AHM-CHAMFER Helix Chamfer Milling Tool - dimension drawing
AKKO

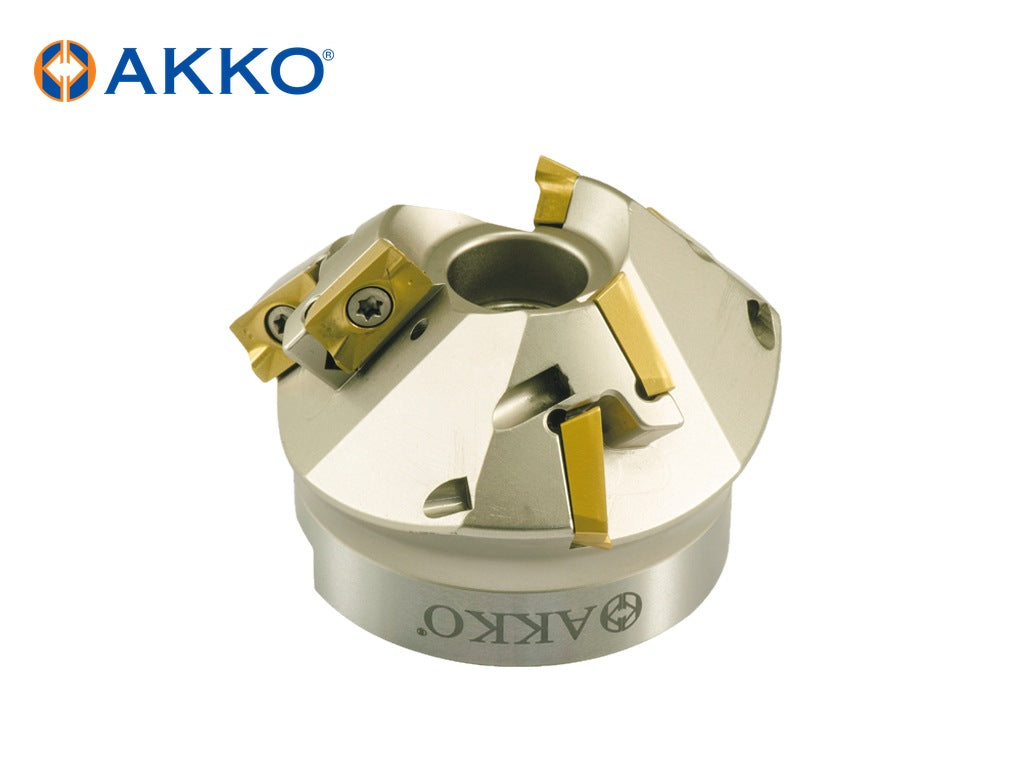

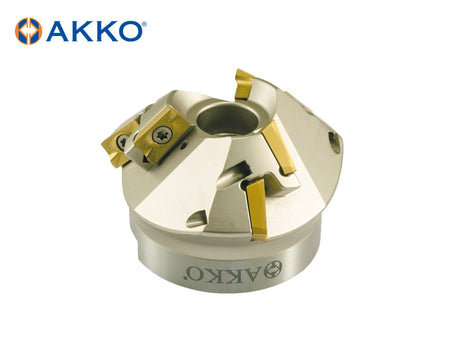

AKKO AHM-CHAMFER Helix Chamfer Milling Tool

Out of stock
SKU: AHM15-AP16-D35x93-A27-Z0306-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAHM15-AP16-D35x93-A27-Z0306-H SKUAHM15-AP16-D35x93-A27-Z0306-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AHM-CHAMFER – Helix Chamfer Milling Tool from the AKKO Helix Chamfer Milling Tools range. For inserts: APKT 1604.. 5 sizes listed below.

Specifications

  • Functional Length (LF): 50 mm
  • Cutting Diameter (DC): 35 mm
  • Number of Cutting Edges (ZEFP): 3-6
  • Insert Size: 1604..
  • Insert Type: APKT

Sizes and dimensions

AKKO code Connection Diameter (DCON, mm) Maximum Depth of Cut (APMX, mm) Maximum Cutting Diameter (DCX, mm) Side Cutting Angle (KAPR)
AHM15-AP16-D35x93-A27-Z0306-H 27 31.5 93 15°
AHM30-AP16-D35x87-A27-Z0306-H 27 15 87 30°
AHM45-AP16-D35x77-A27-Z0306-H 27 21.5 77 45°
AHM60-AP16-D35x65-A22-Z0306-H 22 26.5 65 60°
AHM75-AP16-D35x50-A22-Z0306-H 22 29.5 50 75°

Spare parts (AKKO codes)

  • Torx Key: 82-T15
  • Torx Screw: 4015-M4X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
