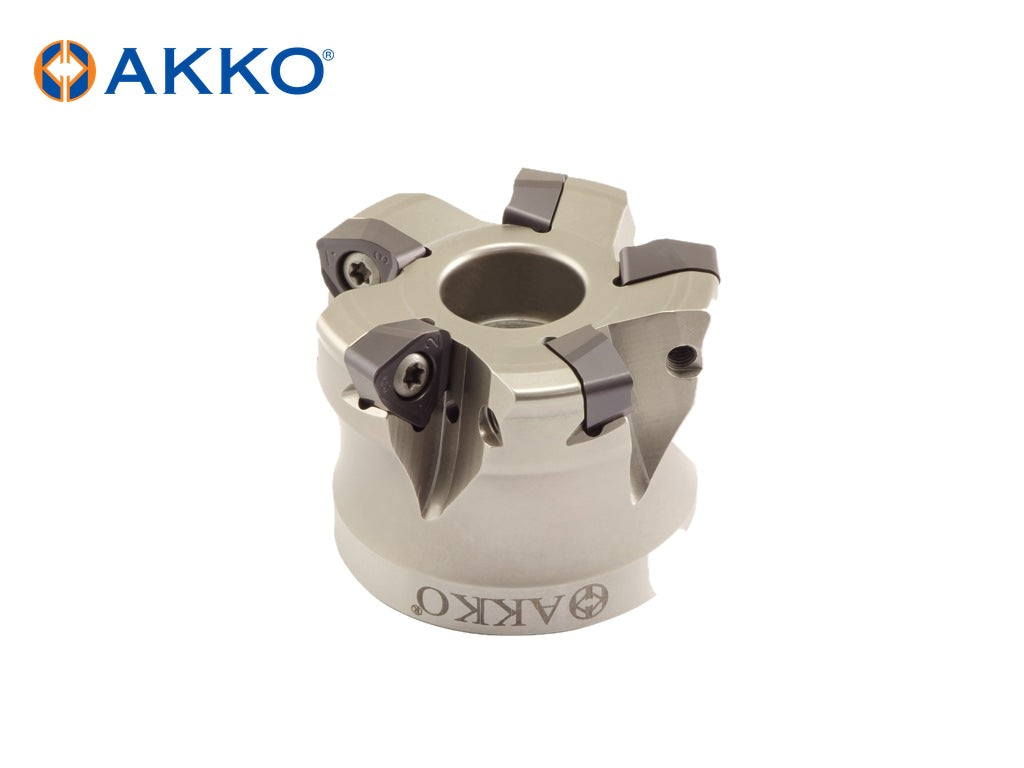

AKKO AHFML-WN – High Feed Face Mill from the AKKO High Feed Face Mills (Arbor Type) range. For inserts: WNMU 0706.., WNMU 0907.. 8 sizes listed below.

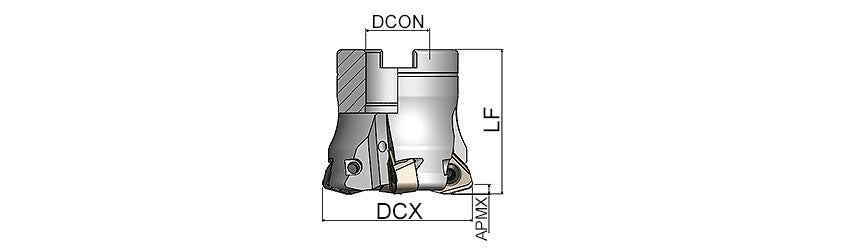

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Maximum Depth of Cut (APMX, mm) | Number of Flutes (ZEFP) | Insert Size |
|---|---|---|---|---|---|
| AHFM-WN0706-D050-A22-Z05-H | 50 | 22 | 2 | 5 | 0706.. |
| AHFM-WN0706-D063-A22-Z06-H | 63 | 22 | 1.5 | 6 | 0706.. |
| AHFM-WN0907-D050-A22-Z04-H | 50 | 22 | 3 | 4 | 0907.. |
| AHFM-WN0907-D052-A22-Z04-H | 52 | 22 | 3 | 4 | 0907.. |
| AHFM-WN0907-D063-A22-Z05-H | 63 | 22 | 3 | 5 | 0907.. |
| AHFM-WN0907-D066-A27-Z05-H | 66 | 27 | 3 | 5 | 0907.. |
| AHFM-WN0907-D080-A27-Z06-H | 80 | 27 | 3 | 6 | 0907.. |
| AHFM-WN0907-D100-A32-Z07-H | 100 | 32 | 3 | 7 | 0907.. |
| AKKO code | Torx Key | Torx Screw | Hexagon Screw | Clamp Screw |
|---|---|---|---|---|
| AHFM-WN0706-D050-A22-Z05-H | 82-T15 | 4015-M4X11 | 2508-M10x30 | – |
| AHFM-WN0706-D063-A22-Z06-H | 82-T15 | 4015-M4X11 | 2508-M10x30 | – |
| AHFM-WN0907-D050-A22-Z04-H | 80-T20 | 1020-M5X14 | – | AKV-28-M10x1.5x43 |
| AHFM-WN0907-D052-A22-Z04-H | 80-T20 | 1020-M5X14 | 2508-M10x30 | – |
| AHFM-WN0907-D063-A22-Z05-H | 80-T20 | 1020-M5X14 | 2508-M10x30 | – |
| AHFM-WN0907-D066-A27-Z05-H | 80-T20 | 1020-M5X14 | 2510-M12x35 | – |
| AHFM-WN0907-D080-A27-Z06-H | 80-T20 | 1020-M5X14 | 2510-M12x35 | – |
| AHFM-WN0907-D100-A32-Z07-H | 80-T20 | 1020-M5X14 | 2514-M16x35 | – |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
