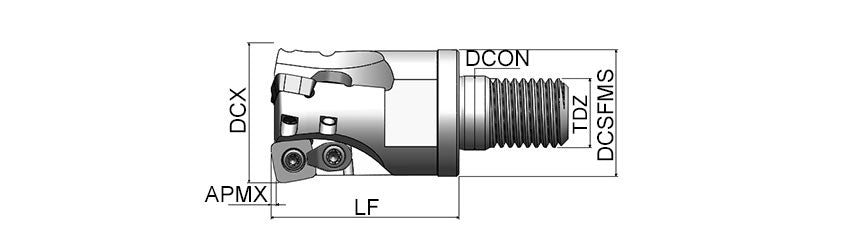

AKKO AHFMC-SD S-System High Feed Modular End Mill - dimension drawing
AKKO AHFMC-SD S-System High Feed Modular End Mill - dimension drawing
AKKO

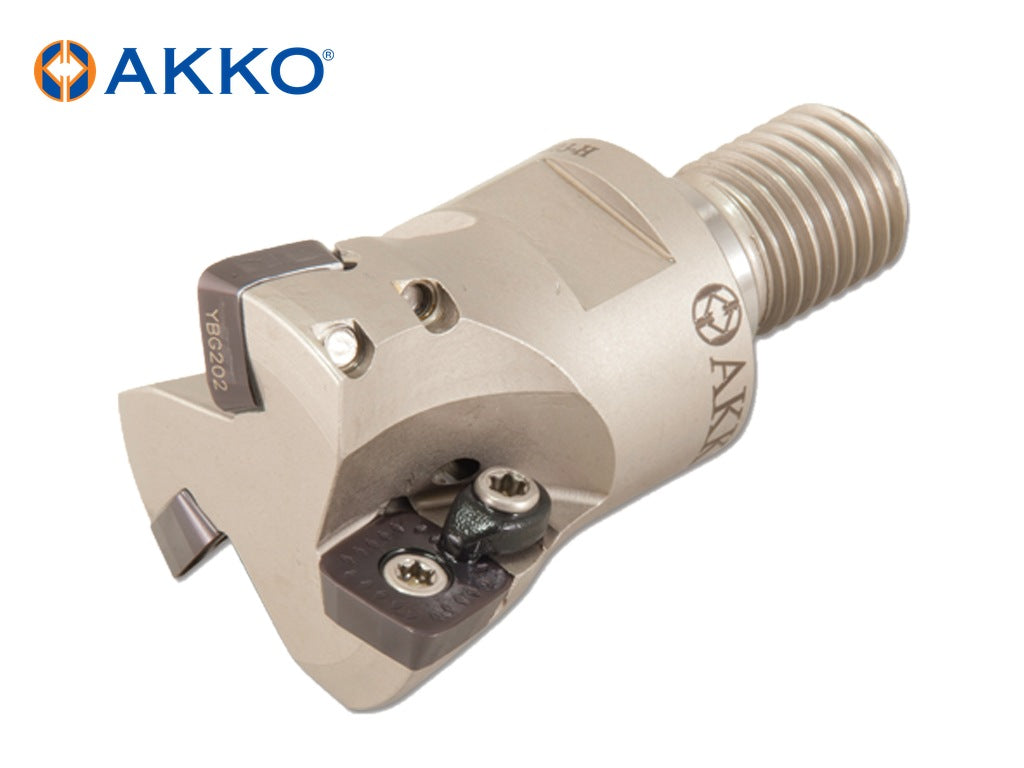

AKKO AHFMC-SD S-System High Feed Modular End Mill

Out of stock
SKU: AHFMC-SD09T3-D25-M12-L30-Z02-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAHFMC-SD09T3-D25-M12-L30-Z02-H SKUAHFMC-SD09T3-D25-M12-L30-Z02-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AHFMC-SD – S-System High Feed Modular End Mill from the AKKO S-System High Feed Modular End Mills (Screw Type) range. For inserts: SDMT 1204.., SDNMT 09T3.. 6 sizes listed below.

Specifications

  • Coolant Through: Yes

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Insert Style Number of Flutes (ZEFP) Insert Size Thread Diameter Size (TDZ) Contact Surface Diameter Machine Side (DCSFMS, mm) Axial Depth of Cut (mm)
AHFMC-SD09T3-D25-M12-L30-Z02-H 25 12.5 30 SDNMT 2 09T3.. M12 21 1.4
AHFMC-SD09T3-D32-M16-L43-Z03-H 32 17 43 SDNMT 3 09T3.. M16 29 1.4
AHFMC-SD09T3-D35-M16-L43-Z03-H 35 17 43 SDNMT 3 09T3.. M16 29 1.4
AHFMC-SD09T3-D40-M16-L43-Z04-H 40 17 43 SDNMT 4 09T3.. M16 29 1.4
AHFMC-SD1204-D32-M16-L43-Z02-H 32 17 43 SDMT 2 1204.. M16 29 1.8
AHFMC-SD1204-D40-M16-L43-Z03-H 40 17 43 SDMT 3 1204.. M16 29 1.8

Spare parts (AKKO codes)

  • Clamp: ACK-15
AKKO code Torx Key Torx Screw
AHFMC-SD09T3-D25-M12-L30-Z02-H 82-T10 3010-M3.5X9
AHFMC-SD09T3-D32-M16-L43-Z03-H 82-T10 3010-M3.5X9
AHFMC-SD09T3-D35-M16-L43-Z03-H 82-T10 3010-M3.5X9
AHFMC-SD09T3-D40-M16-L43-Z04-H 82-T10 3010-M3.5X9
AHFMC-SD1204-D32-M16-L43-Z02-H 82-T15 4015-M4X9
AHFMC-SD1204-D40-M16-L43-Z03-H 82-T15 4015-M4X9

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
