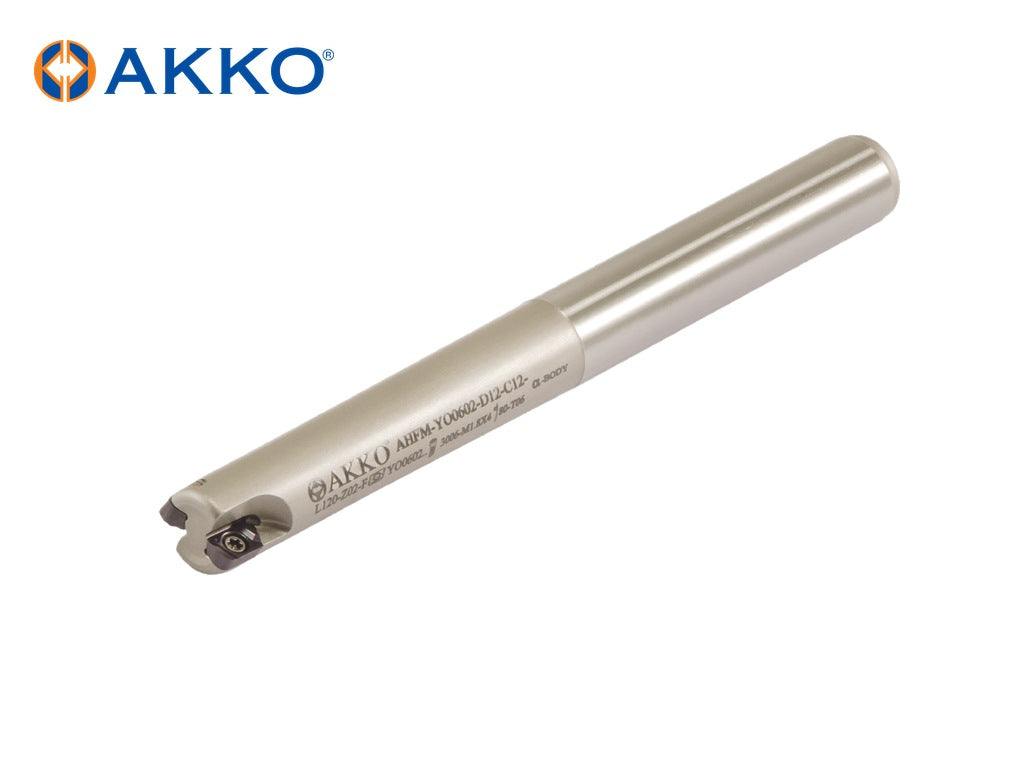

AKKO AHFM-YO0602 – S-System High Feed End Mill from the AKKO S-System High Feed End Mills range. For inserts: YOHW 0602.. 15 sizes listed below.

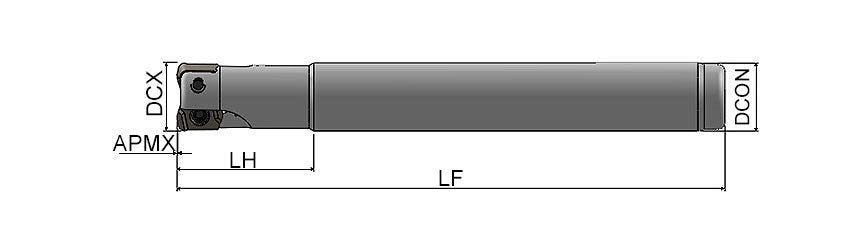

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Number of Flutes (ZEFP) | Head Length (LH, mm) |
|---|---|---|---|---|---|
| AHFM-YO0602-D10-C09-L120-Z02-F | 10 | 9 | 120 | 2 | 15 |
| AHFM-YO0602-D10-C10-L080-Z02-F | 10 | 10 | 80 | 2 | 20 |
| AHFM-YO0602-D10-C10-L120-Z02-F | 10 | 10 | 120 | 2 | 60 |
| AHFM-YO0602-D10-C10-L120-Z02-H | 10 | 10 | 120 | 2 | 60 |
| AHFM-YO0602-D10-C10-L120-Z02-H-F | 10 | 10 | 120 | 2 | 60 |
| AHFM-YO0602-D12-C11-L120-Z02-F | 12 | 11 | 120 | 2 | 15 |
| AHFM-YO0602-D12-C11-L120-Z02-H | 12 | 11 | 120 | 2 | 15 |
| AHFM-YO0602-D12-C11-L120-Z02-H-F | 12 | 11 | 120 | 2 | 15 |
| AHFM-YO0602-D12-C11-L120-Z03-F | 12 | 11 | 120 | 3 | 15 |
| AHFM-YO0602-D12-C12-L080-Z02-F | 12 | 12 | 80 | 2 | 20 |
| AHFM-YO0602-D12-C12-L080-Z03-F | 12 | 12 | 80 | 3 | 20 |
| AHFM-YO0602-D12-C12-L120-Z02-F | 12 | 12 | 120 | 2 | 60 |
| AHFM-YO0602-D12-C12-L120-Z02-H | 12 | 12 | 120 | 2 | 60 |
| AHFM-YO0602-D12-C12-L120-Z03-F | 12 | 12 | 120 | 3 | 60 |
| AHFM-YO0602-D12-C12-L120-Z03-H | 12 | 12 | 120 | 3 | 60 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
