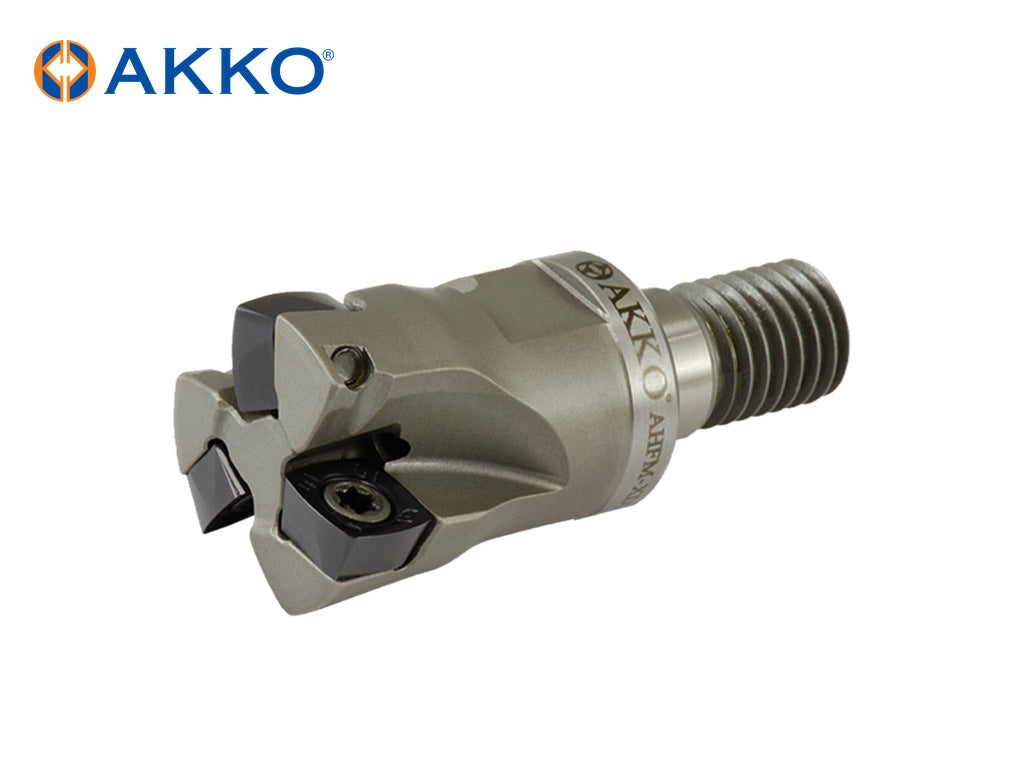

AKKO AHFM-XD0904WD – S-System High Feed Modular End Mill from the AKKO S-System High Feed Modular End Mills (Screw Type) range. For inserts: XDPT 0904.. 2 sizes listed below.
Specifications
-
Insert Style: XDPT
-
Coolant Through: Yes
-
Insert Size: 0904..
-
Axial Depth of Cut: 1.5 mm

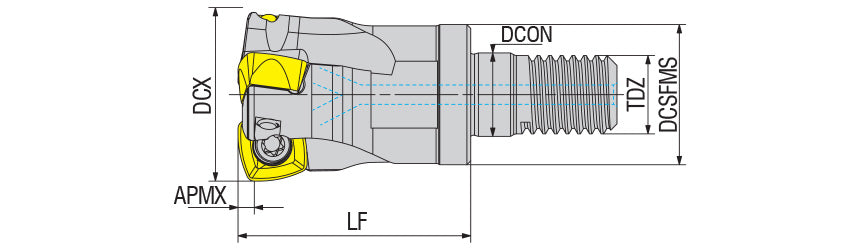

Sizes and dimensions
| AKKO code |
Cutting Diameter (DC, mm) |
Connection Diameter (DCON, mm) |
Functional Length (LF, mm) |
Number of Flutes (ZEFP) |
Thread Diameter Size (TDZ) |
Contact Surface Diameter Machine Side (DCSFMS, mm) |
| AHFM-XD0904WD-D26-M12-L35-Z03-H |
26 |
12.5 |
35 |
3 |
M12 |
21 |
| AHFM-XD0904WD-D33-M16-L43-Z04-H |
33 |
17 |
43 |
4 |
M16 |
29 |
Spare parts (AKKO codes)
-
Torx Key: 82-T15
-
Torx Screw: 4015-M3.5X9
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
