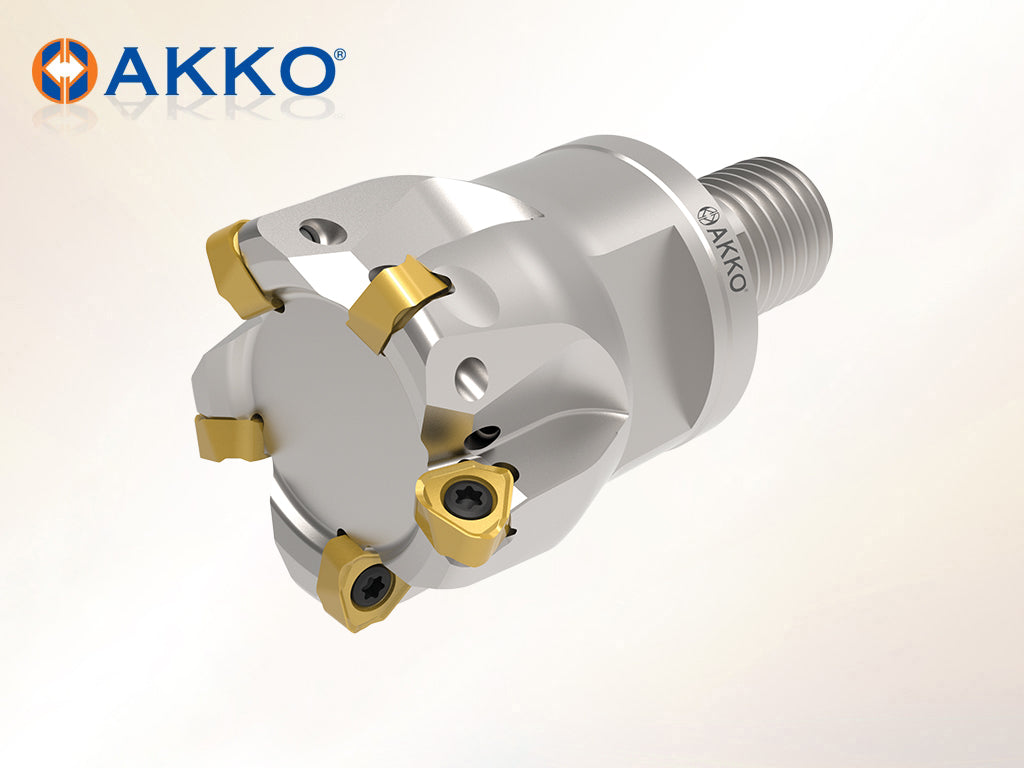

AKKO AHFM-WN0503-H S-System High Feed Modular End Mill
AKKO AHFM-WN0503-H S-System High Feed Modular End Mill - dimension drawing
AKKO AHFM-WN0503-H S-System High Feed Modular End Mill
AKKO AHFM-WN0503-H S-System High Feed Modular End Mill - dimension drawing
AKKO

AKKO AHFM-WN0503-H S-System High Feed Modular End Mill

Out of stock
SKU: AHFM-WN0503-D32-M16-L43-Z04-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAHFM-WN0503-D32-M16-L43-Z04-H SKUAHFM-WN0503-D32-M16-L43-Z04-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AHFM-WN0503-H S-System High Feed Modular End Mill from the AKKO S-System High Feed Modular End Mills (Screw Type) range. For inserts: WN.. 0503.. 3 sizes listed below.

Sizes and dimensions (mm)

AKKO code Insert Hand (R/L) DC DCON DCSFMS LF ZEFP APMX TDZ
AHFM-WN0503-D32-M16-L43-Z04-H WN.. 0503.. R 32 17 29 43 4 1.25 M16
AHFM-WN0503-D35-M16-L43-Z04-H WN.. 0503.. R 35 17 29 43 4 1.25 M16
AHFM-WN0503-D40-M16-L43-Z05-H WN.. 0503.. R 40 17 32.3 43 5 1.25 M16

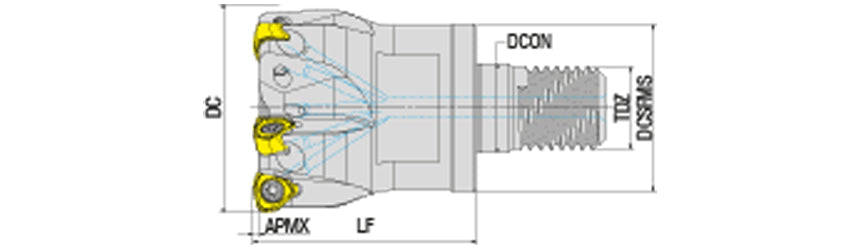

Dimension key (letters as on the drawing):

  • DC: Cutting diameter
  • DCON: Connection diameter
  • LF: Functional length
  • ZEFP: Number of effective cutting edges
  • APMX: Maximum depth of cut

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
