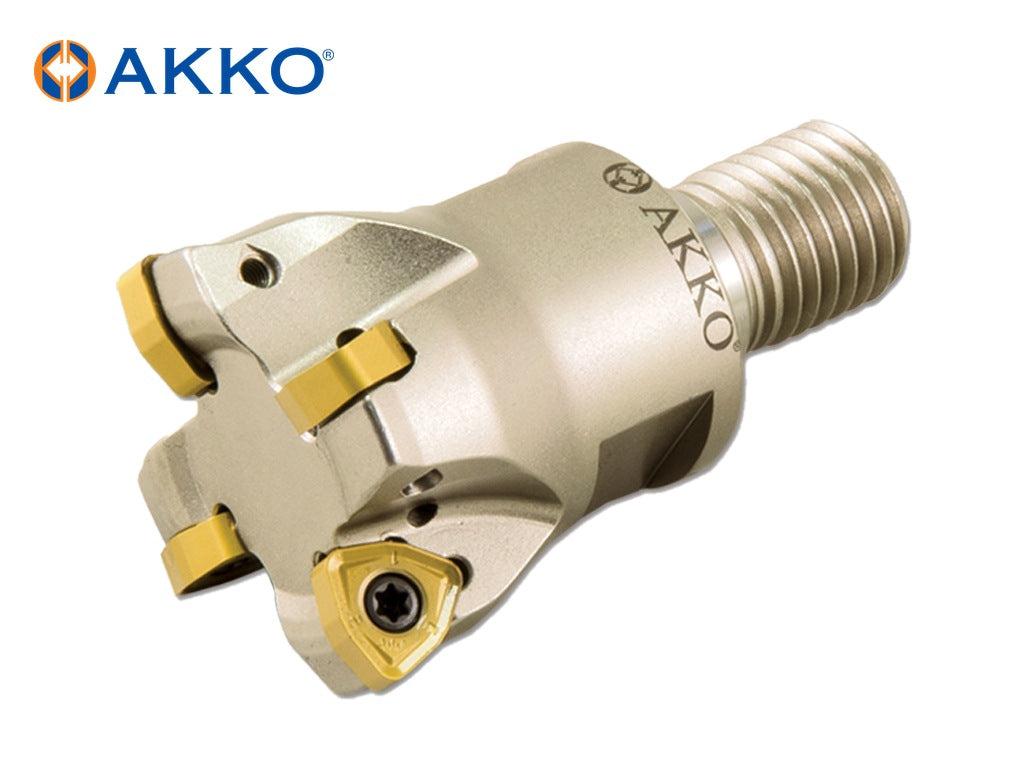

AKKO AHFM-WN – S-System High Feed Modular End Mill from the AKKO S-System High Feed Modular End Mills (Screw Type) range. For inserts: WNMX 09T3.. 3 sizes listed below.
Specifications
-
Insert Style: WNMX
-
Coolant Through: Yes
-
Functional Length (LF): 40 mm
-
Insert Size: 09T3..
-
Thread Diameter Size (TDZ): M16
-
Contact Surface Diameter Machine Side (DCSFMS): 29 mm
-
Connection Diameter (DCON): 17 mm
-
Axial Depth of Cut: 1.5 mm

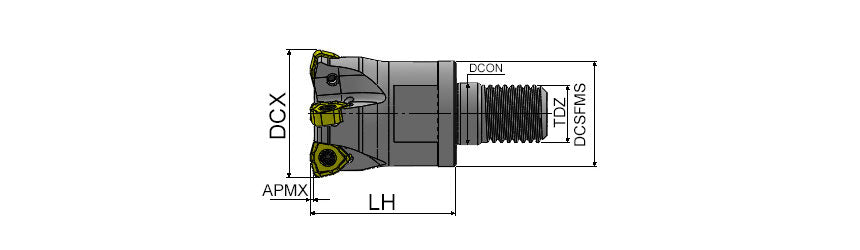

Sizes and dimensions
| AKKO code |
Cutting Diameter (DC, mm) |
Number of Flutes (ZEFP) |
| AHFM-WN09T3-D32-M16-L40-Z03-H |
32 |
3 |
| AHFM-WN09T3-D35-M16-L40-Z04-H |
35 |
4 |
| AHFM-WN09T3-D40-M16-L40-Z04-H |
40 |
4 |
Spare parts (AKKO codes)
-
Torx Key: 82-T10
-
Torx Screw: 4010-M3X8
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
