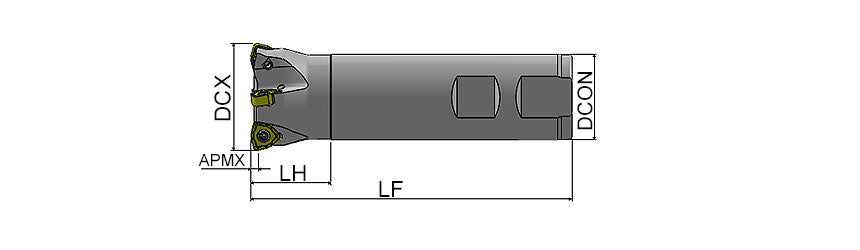

AKKO AHFM-WN S-System High Feed End Mill - dimension drawing
AKKO AHFM-WN S-System High Feed End Mill - dimension drawing
AKKO

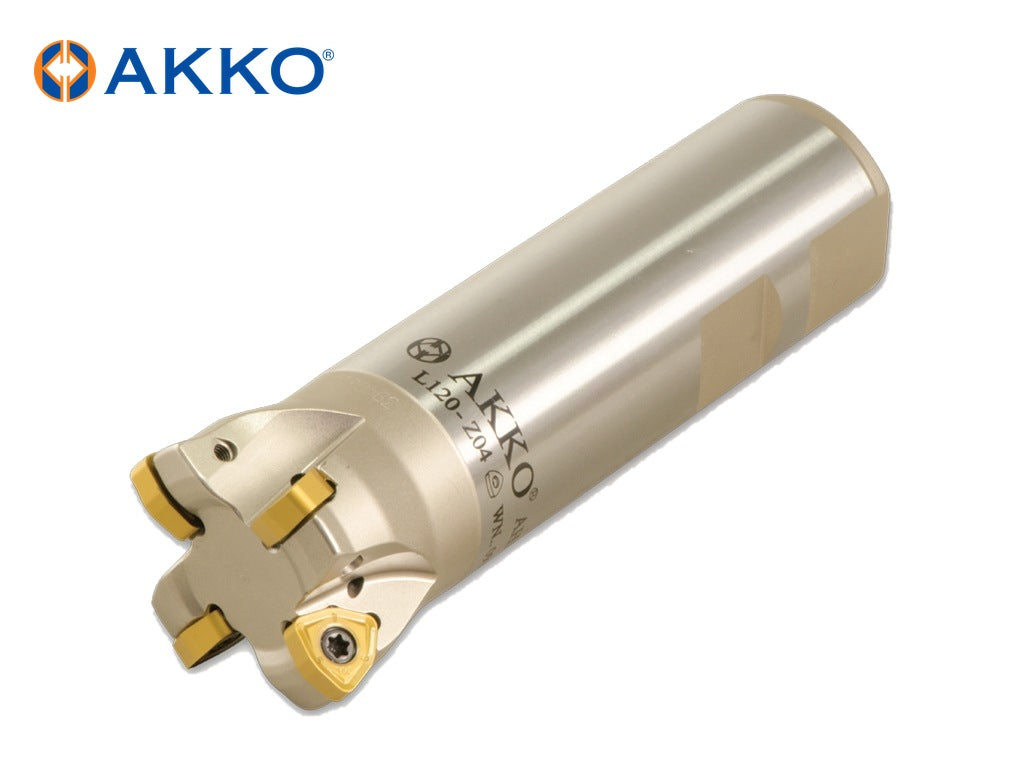

AKKO AHFM-WN S-System High Feed End Mill

Out of stock
SKU: AHFM-WN0603-D16-C16-L110-Z02-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAHFM-WN0603-D16-C16-L110-Z02-H SKUAHFM-WN0603-D16-C16-L110-Z02-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AHFM-WN – S-System High Feed End Mill from the AKKO S-System High Feed End Mills range. For inserts: WNMX 0603.., WNMX 09T3.., WNMX 1305.. 18 sizes listed below.

Specifications

  • Insert Style: WNMX

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Shank Type Maximum Depth of Cut (APMX, mm) Number of Flutes (ZEFP) Head Length (LH, mm) Insert Size
AHFM-WN0603-D16-C16-L110-Z02-H 16 16 110 Cylindrical 1 2 30 0603..
AHFM-WN0603-D16-C16-L150-Z02-H 16 16 150 Cylindrical 1 2 70 0603..
AHFM-WN0603-D17-C16-L150-Z02-H 17 16 150 Cylindrical 1 2 20 0603..
AHFM-WN0603-D20-C20-L150-Z02-H 20 20 150 Cylindrical 1 2 70 0603..
AHFM-WN0603-D20-C20-L200-Z02-H 20 20 200 Cylindrical 1 2 100 0603..
AHFM-WN0603-D21-C20-L150-Z02-H 21 20 150 Cylindrical 1 2 20 0603..
AHFM-WN09T3-D25-C25-L200-Z02 25 25 200 Cylindrical 1.5 2 120 09T3..
AHFM-WN09T3-D25-W25-L120-Z02-H 25 25 120 Weldon 1.5 2 40 09T3..
AHFM-WN09T3-D30-W25-L120-Z03-H 30 25 120 Weldon 1.5 3 – 09T3..
AHFM-WN09T3-D32-W32-L120-Z03-H 32 32 120 Weldon 1.5 3 30 09T3..
AHFM-WN09T3-D32-W32-L200-Z03-H 32 32 200 Weldon 1.5 3 100 09T3..
AHFM-WN09T3-D35-W32-L200-Z04-H 35 32 200 Weldon 1.5 4 50 09T3..
AHFM-WN09T3-D40-C32-L200-Z04 40 32 200 Cylindrical 1.5 4 30 09T3..
AHFM-WN09T3-D40-W32-L120-Z04-H 40 32 120 Weldon 1.5 4 30 09T3..
AHFM-WN1305-D32-C32-L150-Z02-H 32 32 150 Cylindrical 2 2 70 1305..
AHFM-WN1305-D32-C32-L200-Z02-H 32 32 200 Cylindrical 2 2 120 1305..
AHFM-WN1305-D40-C32-L200-Z03-H 40 32 200 Cylindrical 2 3 30 1305..
AHFML-WN09T3-D25-W25-L120-Z02-H 25 25 120 Weldon 1.5 2 40 09T3..

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw
AHFM-WN0603-D16-C16-L110-Z02-H 82-T08 3008-M2.5X6
AHFM-WN0603-D16-C16-L150-Z02-H 82-T08 3008-M2.5X6
AHFM-WN0603-D17-C16-L150-Z02-H 82-T08 3008-M2.5X6
AHFM-WN0603-D20-C20-L150-Z02-H 82-T08 3008-M2.5X6
AHFM-WN0603-D20-C20-L200-Z02-H 82-T08 3008-M2.5X6
AHFM-WN0603-D21-C20-L150-Z02-H 82-T08 3008-M2.5X6
AHFM-WN09T3-D25-C25-L200-Z02 82-T10 4010-M3X8
AHFM-WN09T3-D25-W25-L120-Z02-H 82-T10 4010-M3X8
AHFM-WN09T3-D30-W25-L120-Z03-H 82-T10 4010-M3X8
AHFM-WN09T3-D32-W32-L120-Z03-H 82-T10 4010-M3X8
AHFM-WN09T3-D32-W32-L200-Z03-H 82-T10 4010-M3X8
AHFM-WN09T3-D35-W32-L200-Z04-H 82-T10 4010-M3X8
AHFM-WN09T3-D40-C32-L200-Z04 82-T10 4010-M3X8
AHFM-WN09T3-D40-W32-L120-Z04-H 82-T10 4010-M3X8
AHFM-WN1305-D32-C32-L150-Z02-H 82-T15 4015-M4X11
AHFM-WN1305-D32-C32-L200-Z02-H 82-T15 4015-M4X11
AHFM-WN1305-D40-C32-L200-Z03-H 82-T15 4015-M4X11
AHFML-WN09T3-D25-W25-L120-Z02-H 82-T10 4010-M3X8

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
