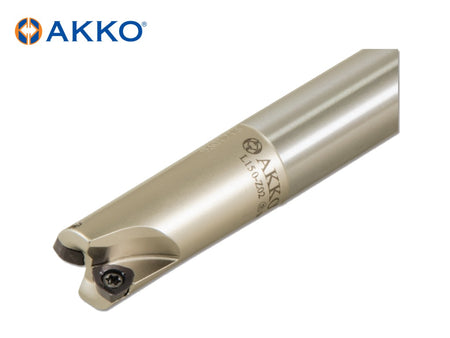

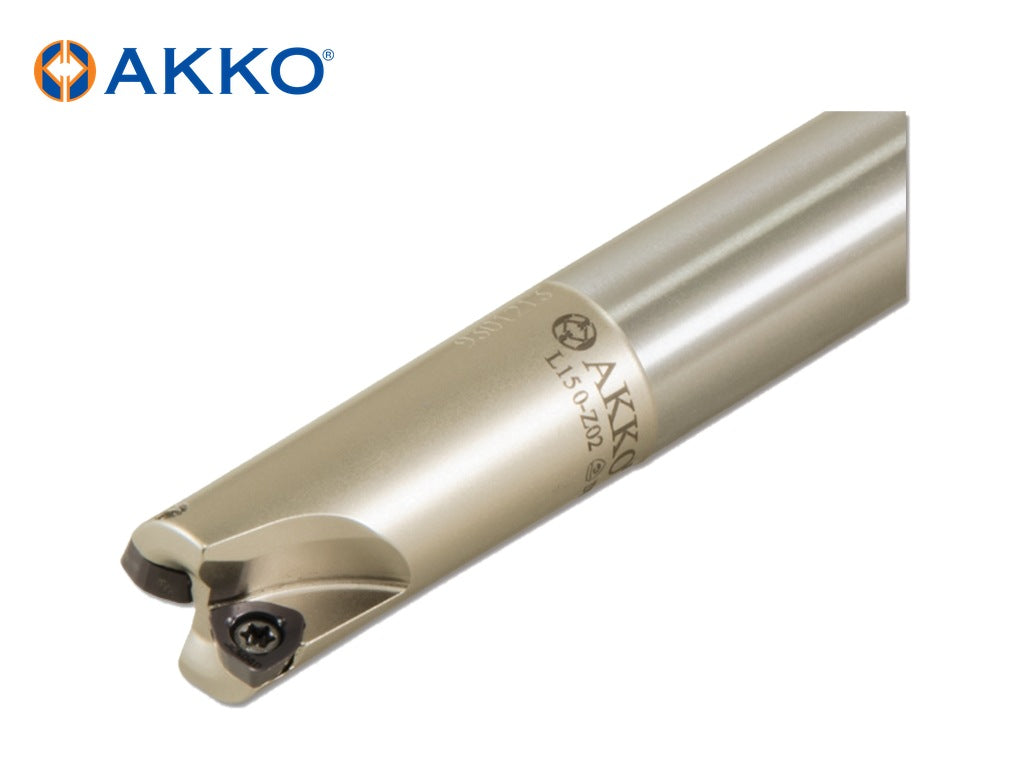

AKKO AHFM-WD0503D – S-System High Feed End Mill from the AKKO S-System High Feed End Mills range. For inserts: WDHW 06T3.., WDMT 0804.., WDMT 1205.., WDMW 0503.. 7 sizes listed below.

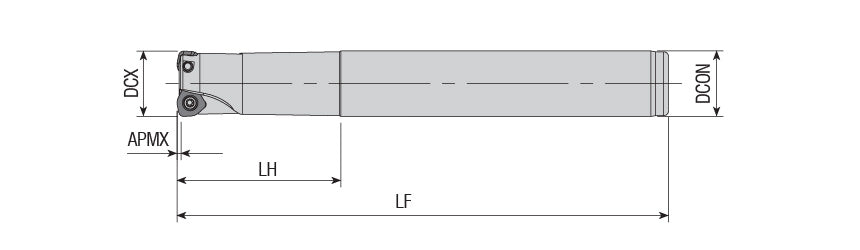

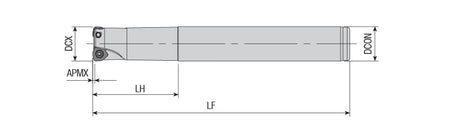

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Maximum Depth of Cut (APMX, mm) | Number of Flutes (ZEFP) | Head Length (LH, mm) | Insert Size | Insert Style |
|---|---|---|---|---|---|---|---|---|
| AHFM-WD0503D-D20-C20-L150-Z02 | 20 | 20 | 150 | 1.25 | 2 | 50 | 0503.. | WDMW |
| AHFM-WD0503D-D21-C20-L150-Z02 | 21 | 20 | 150 | 1.25 | 2 | 30 | 0503.. | WDMW |
| AHFMC-WD06T3D-D26-C25-L200-Z02 | 26 | 25 | 200 | 1.5 | 2 | 30 | 06T3.. | WDHW |
| AHFMC-WD06T3D-D33-C32-L200-Z03 | 33 | 32 | 200 | 1.5 | 3 | 32 | 06T3.. | WDHW |
| AHFMC-WD0804-D25-C25-L150-Z02 | 25 | 25 | 150 | 1.5 | 2 | 60 | 0804.. | WDMT |
| AHFMC-WD0804-D32-C32-L150-Z03 | 32 | 32 | 150 | 1.5 | 3 | 70 | 0804.. | WDMT |
| AHFMC-WD1205-D32-C32-L150-Z02 | 32 | 32 | 150 | 3 | 2 | 70 | 1205.. | WDMT |
| AKKO code | Torx Key | Torx Screw | Clamp | Torx Screw-2 |
|---|---|---|---|---|
| AHFM-WD0503D-D20-C20-L150-Z02 | 82-T10 | 4010-M3X6 | – | – |
| AHFM-WD0503D-D21-C20-L150-Z02 | 82-T10 | 4010-M3X6 | – | – |
| AHFMC-WD06T3D-D26-C25-L200-Z02 | 82-T15 | 3015-M3.5X9 | ACK-15 | 4015-M3.5X11 |
| AHFMC-WD06T3D-D33-C32-L200-Z03 | 82-T15 | 3015-M3.5X9 | ACK-15 | 4015-M3.5X11 |
| AHFMC-WD0804-D25-C25-L150-Z02 | 82-T10 | 4010-M3X8 | ACK-15 | – |
| AHFMC-WD0804-D32-C32-L150-Z03 | 82-T10 | 4010-M3X8 | ACK-15 | – |
| AHFMC-WD1205-D32-C32-L150-Z02 | 82-T15 | 1415-M4X11 | ACK-05 | 4015-M4X11 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
