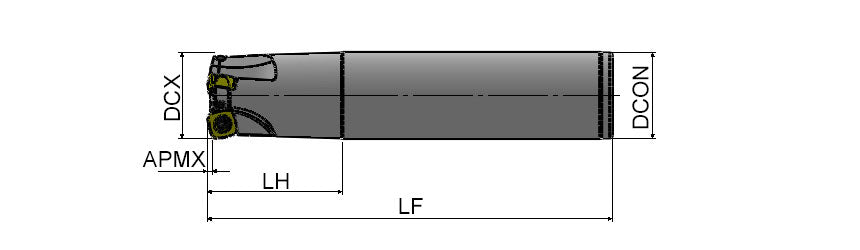

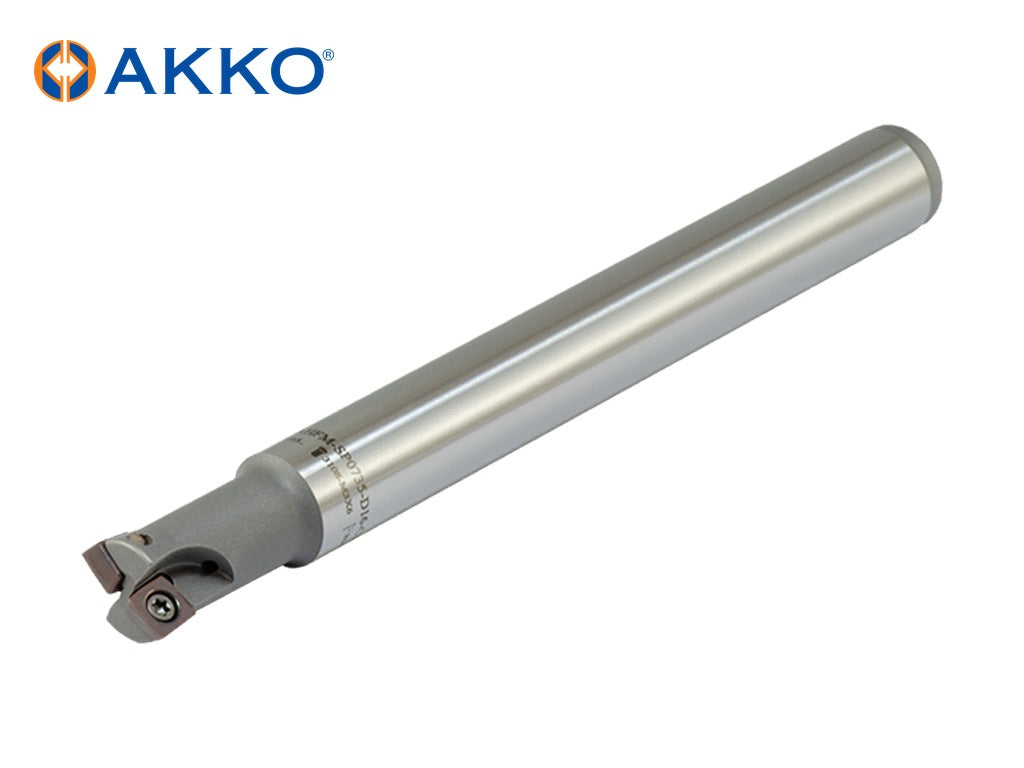

AKKO AHFM-SP0735 – S-System High Feed End Mill from the AKKO S-System High Feed End Mills range. For inserts: SPMX 073505. 4 sizes listed below.
| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Number of Flutes (ZEFP) |
|---|---|---|---|
| AHFM-SP0735-D16-C16-L160-Z02-H | 16 | 16 | 2 |
| AHFM-SP0735-D17-C16-L160-Z02-H | 17 | 16 | 2 |
| AHFM-SP0735-D20-C20-L160-Z03-H | 20 | 20 | 3 |
| AHFM-SP0735-D21-C20-L160-Z03-H | 21 | 20 | 3 |
| AKKO code | Torx Key | Torx Screw |
|---|---|---|
| AHFM-SP0735-D16-C16-L160-Z02-H | 82-T08 | 3108-M3X6 |
| AHFM-SP0735-D17-C16-L160-Z02-H | – | – |
| AHFM-SP0735-D20-C20-L160-Z03-H | 82-T08 | 3108-M3X6 |
| AHFM-SP0735-D21-C20-L160-Z03-H | – | – |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
