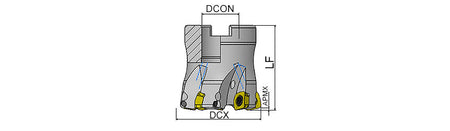

AKKO AHFM-SO High Feed Face Mill - dimension drawing

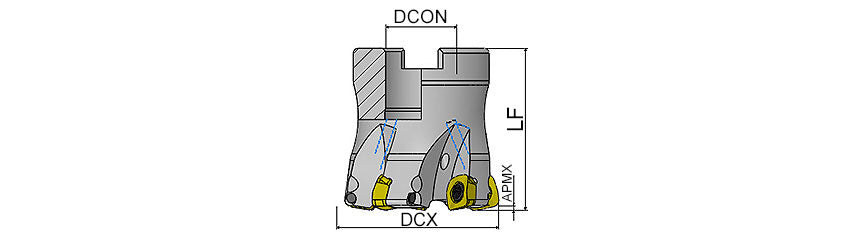

AKKO AHFM-SO High Feed Face Mill - dimension drawing
AKKO

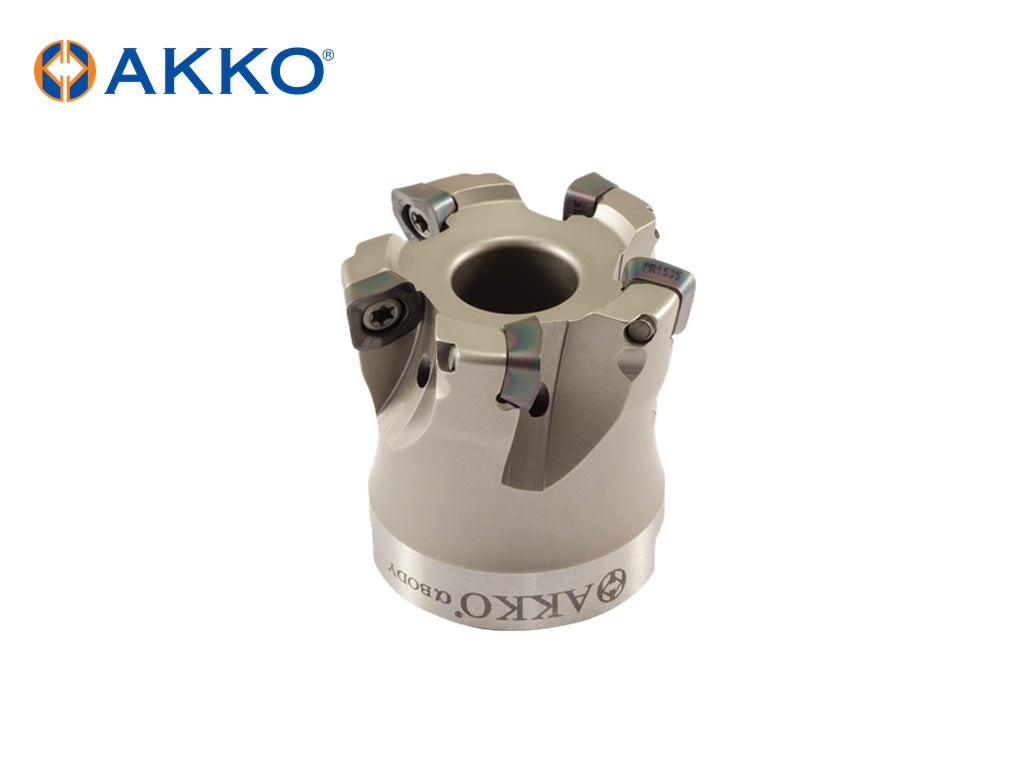

AKKO AHFM-SO High Feed Face Mill

Out of stock
SKU: AHFM-SO1004-D050-A22-Z05-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAHFM-SO1004-D050-A22-Z05-H SKUAHFM-SO1004-D050-A22-Z05-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AHFM-SO – High Feed Face Mill from the AKKO High Feed Face Mills (Arbor Type) range. For inserts: SOMT 1004.. 4 sizes listed below.

Specifications

  • Coolant Through: Yes
  • Maximum Depth of Cut (APMX): 1.5 mm
  • Insert Size: 1004..
  • Insert Type: SOMT

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Number of Flutes (ZEFP)
AHFM-SO1004-D050-A22-Z05-H 50 22 50 5
AHFM-SO1004-D052-A22-Z05-H 52 22 50 5
AHFM-SO1004-D063-A22-Z06-H 63 22 50 6
AHFM-SO1004-D080-A27-Z07-H 80 27 63 7

Spare parts (AKKO codes)

  • Torx Key: 82-T15
  • Torx Screw: 4015-M4X11
AKKO code Hexagon Screw
AHFM-SO1004-D050-A22-Z05-H 2508-M10x30
AHFM-SO1004-D052-A22-Z05-H 2508-M10x30
AHFM-SO1004-D063-A22-Z06-H 2508-M10x30
AHFM-SO1004-D080-A27-Z07-H 2510-M12x35

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
