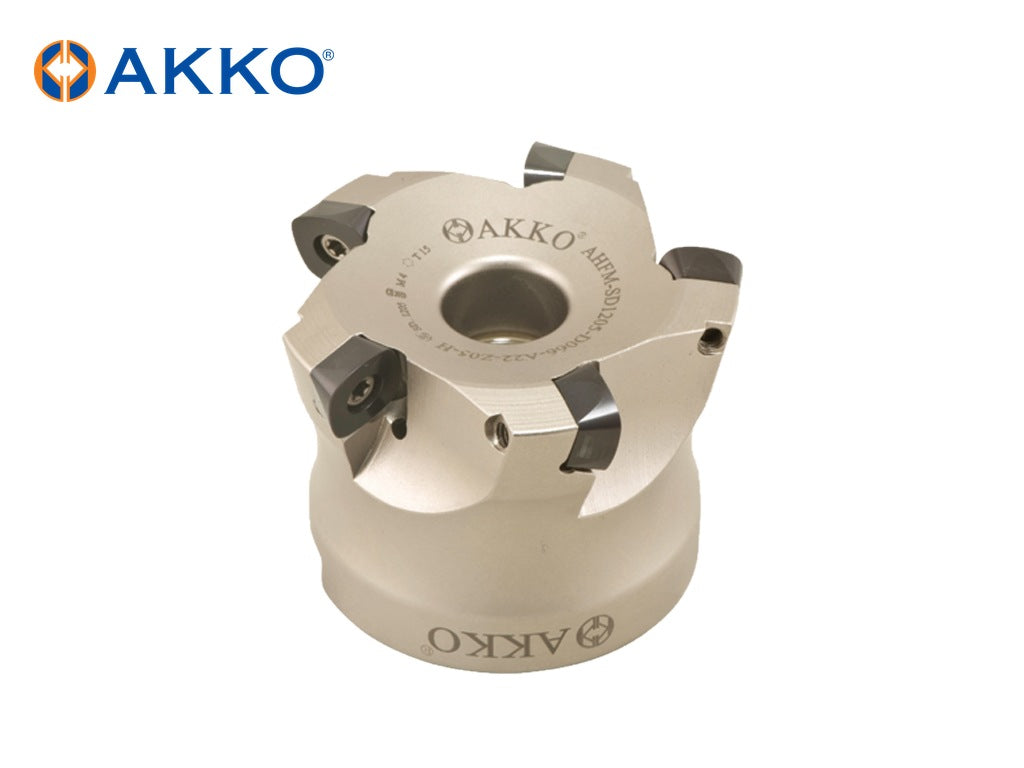

AKKO AHFM-SD – High Feed Face Mill from the AKKO High Feed Face Mills (Arbor Type) range. For inserts: SDNW 1205.. 7 sizes listed below.

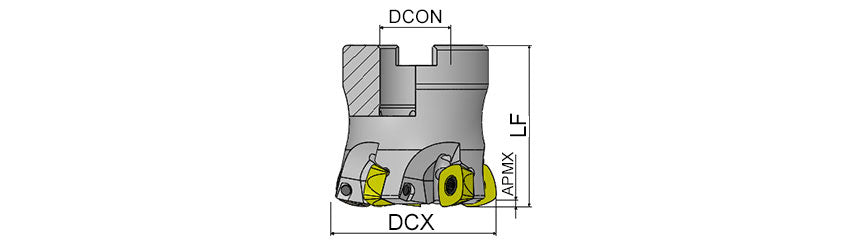

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Number of Flutes (ZEFP) |
|---|---|---|---|---|
| AHFM-SD1205-D052-A22-Z04-H | 52 | 22 | 50 | 4 |
| AHFM-SD1205-D052-A22-Z05-H | 52 | 22 | 50 | 5 |
| AHFM-SD1205-D063-A22-Z05-H | 63 | 22 | 50 | 5 |
| AHFM-SD1205-D066-A22-Z05-H | 66 | 22 | 50 | 5 |
| AHFM-SD1205-D066-A22-Z06-H | 66 | 22 | 50 | 6 |
| AHFM-SD1205-D080-A27-Z06-H | 80 | 27 | 70 | 6 |
| AHFM-SD1205-D100-A32-Z08-H | 100 | 32 | 70 | 8 |
| AKKO code | Hexagon Screw |
|---|---|
| AHFM-SD1205-D052-A22-Z04-H | 2508-M10x30 |
| AHFM-SD1205-D052-A22-Z05-H | 2508-M10x30 |
| AHFM-SD1205-D063-A22-Z05-H | 2508-M10x30 |
| AHFM-SD1205-D066-A22-Z05-H | 2508-M10x30 |
| AHFM-SD1205-D066-A22-Z06-H | 2508-M10x30 |
| AHFM-SD1205-D080-A27-Z06-H | 2510-M12x35 |
| AHFM-SD1205-D100-A32-Z08-H | 2514-M16x35 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
