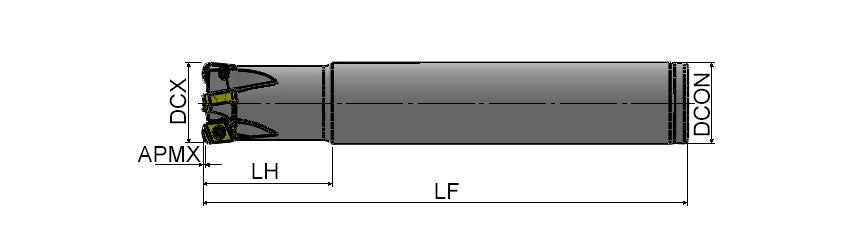

AKKO AHFM-EN S-System High Feed End Mill - dimension drawing
AKKO AHFM-EN S-System High Feed End Mill - dimension drawing
AKKO

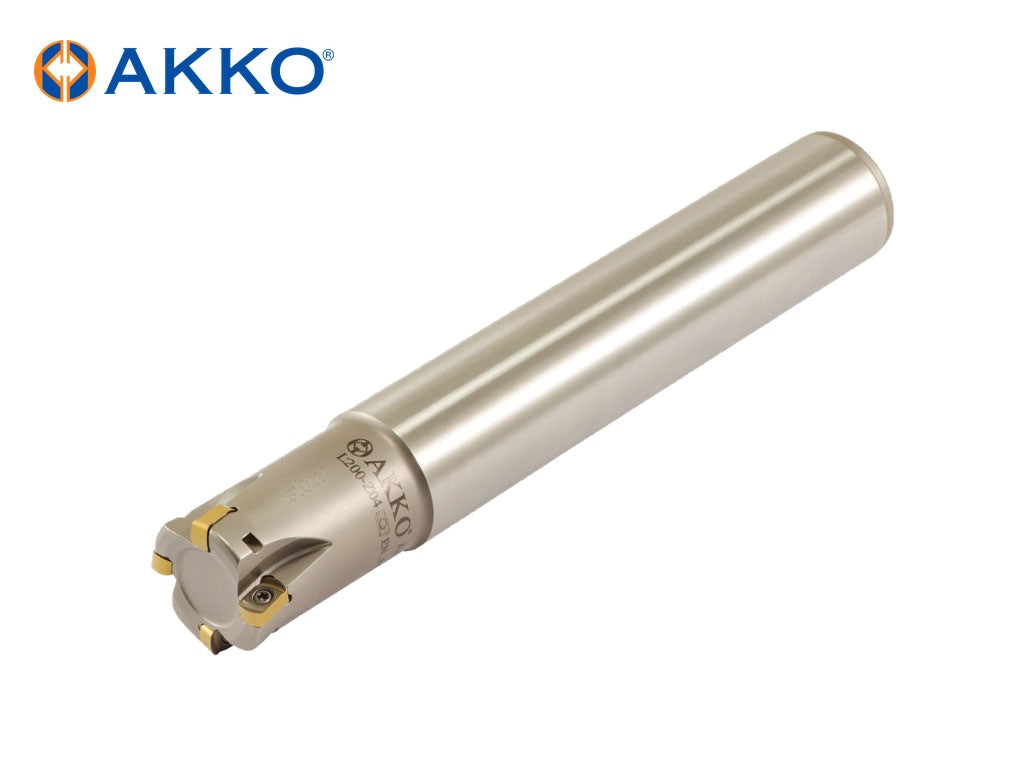

AKKO AHFM-EN S-System High Feed End Mill

Out of stock
SKU: AHFM-EN1004-D16-C15-L150-Z02
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAHFM-EN1004-D16-C15-L150-Z02 SKUAHFM-EN1004-D16-C15-L150-Z02

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AHFM-EN – S-System High Feed End Mill from the AKKO S-System High Feed End Mills range. For inserts: ENMU 1004.. 27 sizes listed below.

Specifications

  • Shank Type: Cylindrical
  • Maximum Depth of Cut (APMX): 1 mm
  • Insert Size: 1004..
  • Insert Style: ENMU

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Number of Flutes (ZEFP) Head Length (LH, mm)
AHFM-EN1004-D16-C15-L150-Z02 16 15 150 2 25
AHFM-EN1004-D16-C16-L150-Z02 16 16 150 2 25
AHFM-EN1004-D16-C16-L200-Z02 16 16 200 2 25
AHFM-EN1004-D16-C16-L250-Z02 16 16 250 2 70
AHFM-EN1004-D17-C16-L150-Z02 17 16 150 2 25
AHFM-EN1004-D17-C16-L150-Z02-H 17 16 150 2 25
AHFM-EN1004-D17-C16-L200-Z02 17 16 200 2 25
AHFM-EN1004-D18-C16-L150-Z02 18 16 150 2 25
AHFM-EN1004-D20-C20-L150-Z03 20 20 150 3 40
AHFM-EN1004-D20-C20-L200-Z03 20 20 200 3 70
AHFM-EN1004-D20-C20-L250-Z03 20 20 250 3 70
AHFM-EN1004-D21-C20-L150-Z02 21 20 150 2 30
AHFM-EN1004-D21-C20-L150-Z03 21 20 150 3 30
AHFM-EN1004-D21-C20-L150-Z03-H 21 20 150 3 30
AHFM-EN1004-D21-C20-L200-Z03 21 20 200 3 30
AHFM-EN1004-D22-C20-L150-Z03 22 20 150 3 30
AHFM-EN1004-D25-C25-L150-Z03 25 25 150 3 40
AHFM-EN1004-D25-C25-L150-Z04 25 25 150 4 40
AHFM-EN1004-D26-C25-L150-Z03 26 25 150 3 30
AHFM-EN1004-D26-C25-L150-Z04 26 25 150 4 30
AHFM-EN1004-D26-C25-L200-Z03 26 25 200 3 30
AHFM-EN1004-D26-C25-L200-Z03-H 26 25 200 3 30
AHFM-EN1004-D26-C25-L250-Z03-H 26 25 250 3 30
AHFM-EN1004-D28-C25-L200-Z04 28 25 200 4 30
AHFM-EN1004-D32-C32-L200-Z04 32 32 200 4 50
AHFM-EN1004-D33-C32-L200-Z04 33 32 200 4 30
AHFM-EN1004-D33-C32-L200-Z04-H 33 32 200 4 30

Spare parts (AKKO codes)

  • Torx Key: 82-T08
  • Torx Screw: 3008-M2.5X6

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
