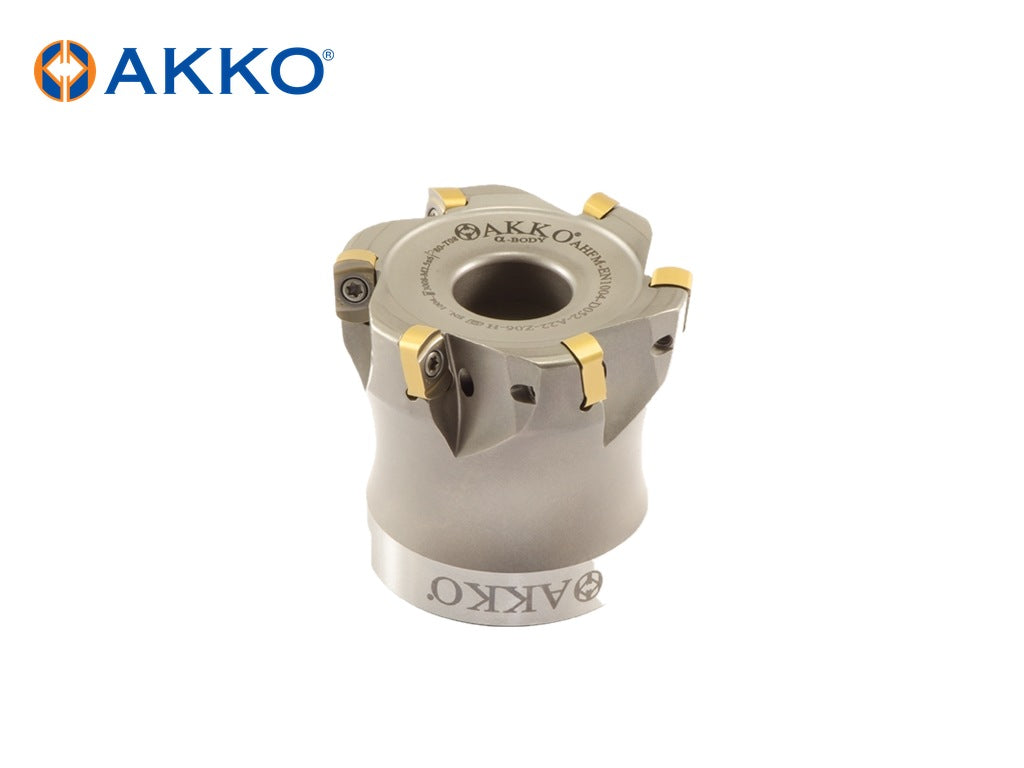

AKKO AHFM-EN – High Feed Face Mill from the AKKO High Feed Face Mills (Arbor Type) range. For inserts: ENMU 1004.. 4 sizes listed below.
Specifications
-
Functional Length (LF): 50 mm
-
Coolant Through: Yes
-
Connection Diameter (DCON): 22 mm
-
Maximum Depth of Cut (APMX): 1 mm
-
Insert Size: 1004..
-
Insert Type: ENMU

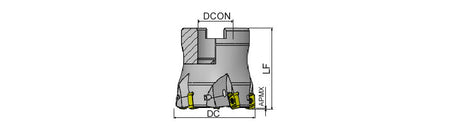

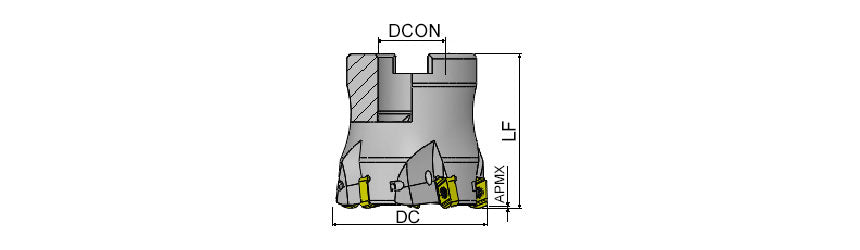

Sizes and dimensions
| AKKO code |
Cutting Diameter (DC, mm) |
Number of Flutes (ZEFP) |
| AHFM-EN1004-D050-A22-Z05-H |
50 |
5 |
| AHFM-EN1004-D050-A22-Z06-H |
50 |
6 |
| AHFM-EN1004-D052-A22-Z06-H |
52 |
6 |
| AHFM-EN1004-D063-A22-Z06-H |
63 |
6 |
Spare parts (AKKO codes)
-
Torx Key: 82-T08
-
Torx Screw: 3008-M2.5X6
-
Hexagon Screw: 2508-M10x30
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
