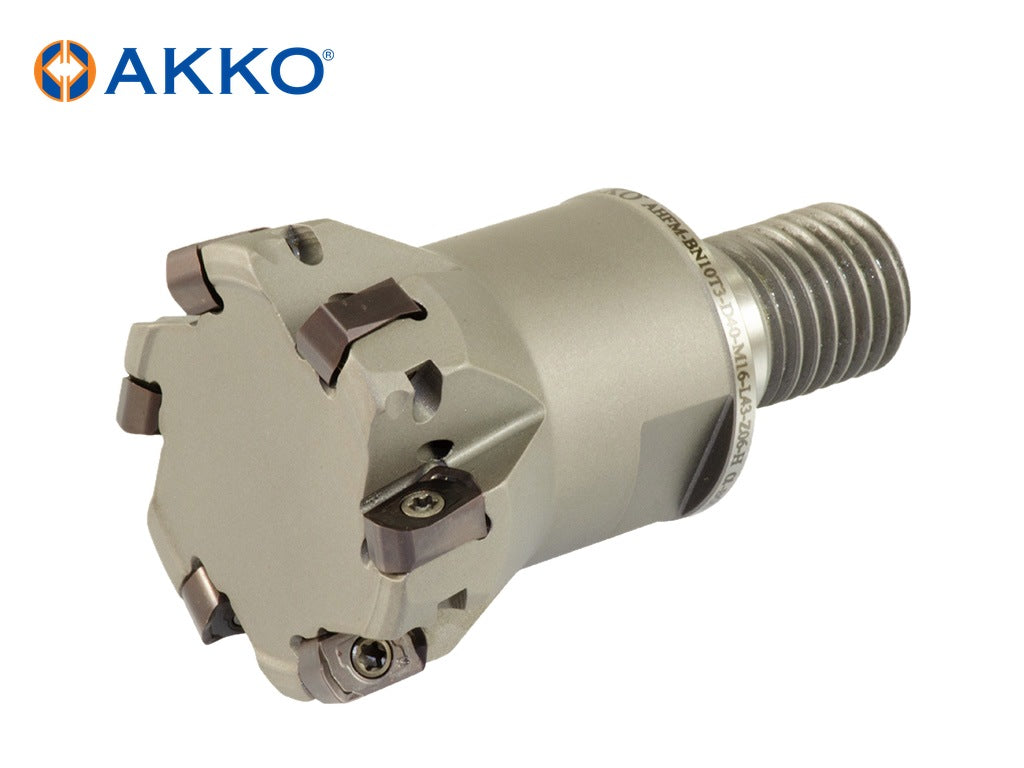

AKKO AHFM-BN10T3 – S-System High Feed Modular End Mill from the AKKO S-System High Feed Modular End Mills (Screw Type) range. For inserts: BNGX 10T3.. 5 sizes listed below.

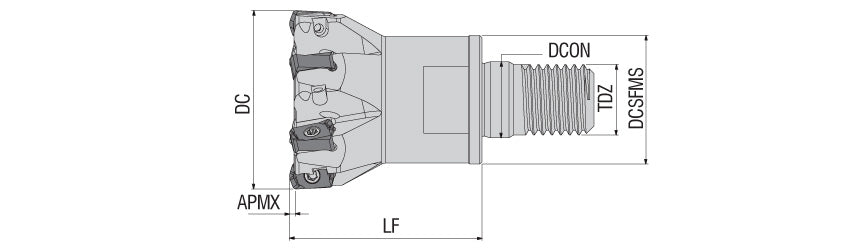

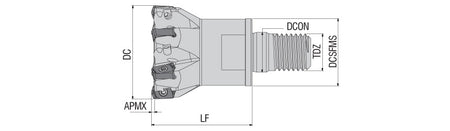

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Number of Flutes (ZEFP) | Thread Diameter Size (TDZ) | Contact Surface Diameter Machine Side (DCSFMS, mm) |
|---|---|---|---|---|---|---|
| AHFM-BN10T3-D16-M08-L25-Z02-H | 16 | 8.5 | 25 | 2 | M08 | 14.75 |
| AHFM-BN10T3-D20-M10-L30-Z04-H | 20 | 10.5 | 30 | 4 | M10 | 18 |
| AHFM-BN10T3-D25-M12-L33-Z05-H | 25 | 12.5 | 33 | 5 | M12 | 21 |
| AHFM-BN10T3-D32-M16-L40-Z06-H | 32 | 17 | 40 | 6 | M16 | 29 |
| AHFM-BN10T3-D40-M16-L43-Z06-H | 40 | 17 | 43 | 6 | M16 | 29 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
