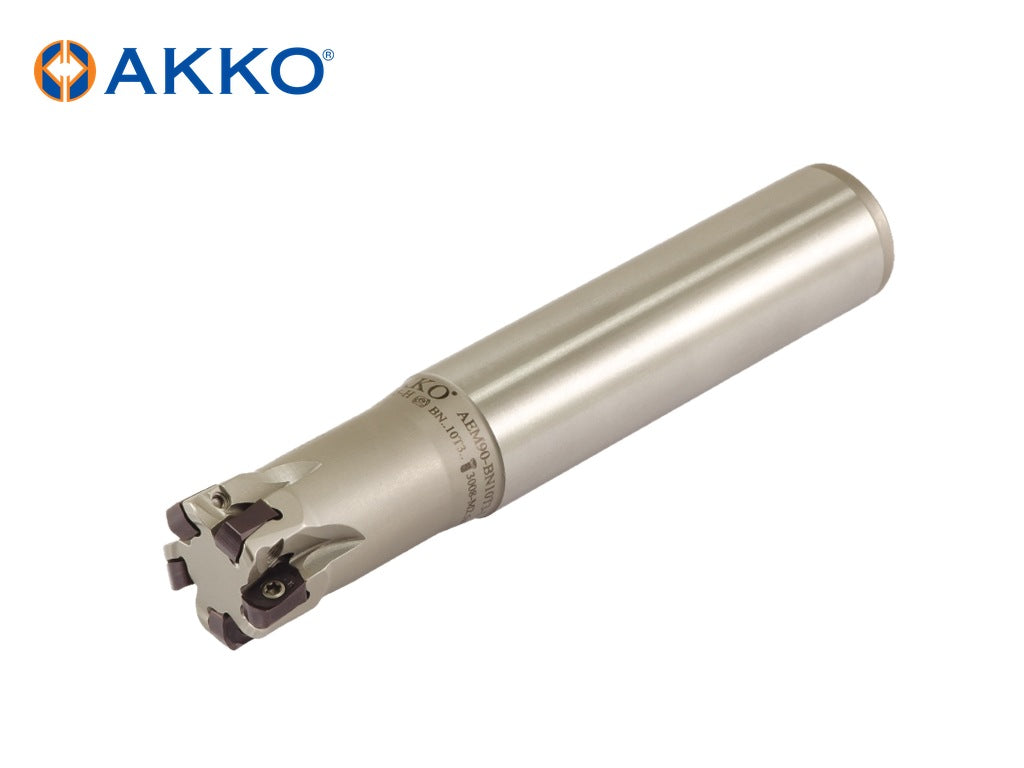

AKKO AHFM-BN – S-System High Feed End Mill from the AKKO S-System High Feed End Mills range. For inserts: BNGX 10T3.. 12 sizes listed below.

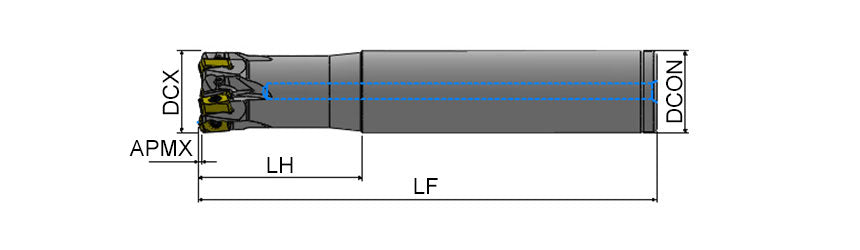

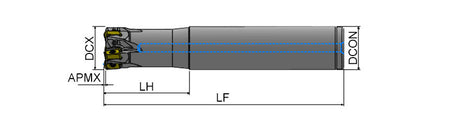

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Shank Type | Number of Flutes (ZEFP) | Head Length (LH, mm) |
|---|---|---|---|---|---|---|
| AHFM-BN10T3-D16-C16-L100-Z02-H | 16 | 16 | 100 | Cylindrical | 2 | 30 |
| AHFM-BN10T3-D16-C16-L150-Z02-H | 16 | 16 | 150 | Cylindrical | 2 | 50 |
| AHFM-BN10T3-D20-C20-L130-Z03-H | 20 | 20 | 130 | Cylindrical | 3 | 40 |
| AHFM-BN10T3-D20-C20-L130-Z04-H | 20 | 20 | 130 | Cylindrical | 4 | 40 |
| AHFM-BN10T3-D20-C20-L160-Z03-H | 20 | 20 | 160 | Cylindrical | 3 | 80 |
| AHFM-BN10T3-D25-C25-L140-Z04-H | 25 | 25 | 140 | Cylindrical | 4 | 50 |
| AHFM-BN10T3-D25-C25-L140-Z05-H | 25 | 25 | 140 | Cylindrical | 5 | 50 |
| AHFM-BN10T3-D25-C25-L180-Z04-H | 25 | 25 | 180 | Cylindrical | 4 | 100 |
| AHFM-BN10T3-D25-W25-L140-Z04-H | 25 | 25 | 140 | Weldon | 4 | 50 |
| AHFM-BN10T3-D32-C32-L150-Z05-H | 32 | 32 | 150 | Cylindrical | 5 | 70 |
| AHFM-BN10T3-D32-C32-L150-Z06-H | 32 | 32 | 150 | Cylindrical | 6 | 70 |
| AHFM-BN10T3-D35-C32-L200-Z06-H | 35 | 32 | 200 | Cylindrical | 6 | 50 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
