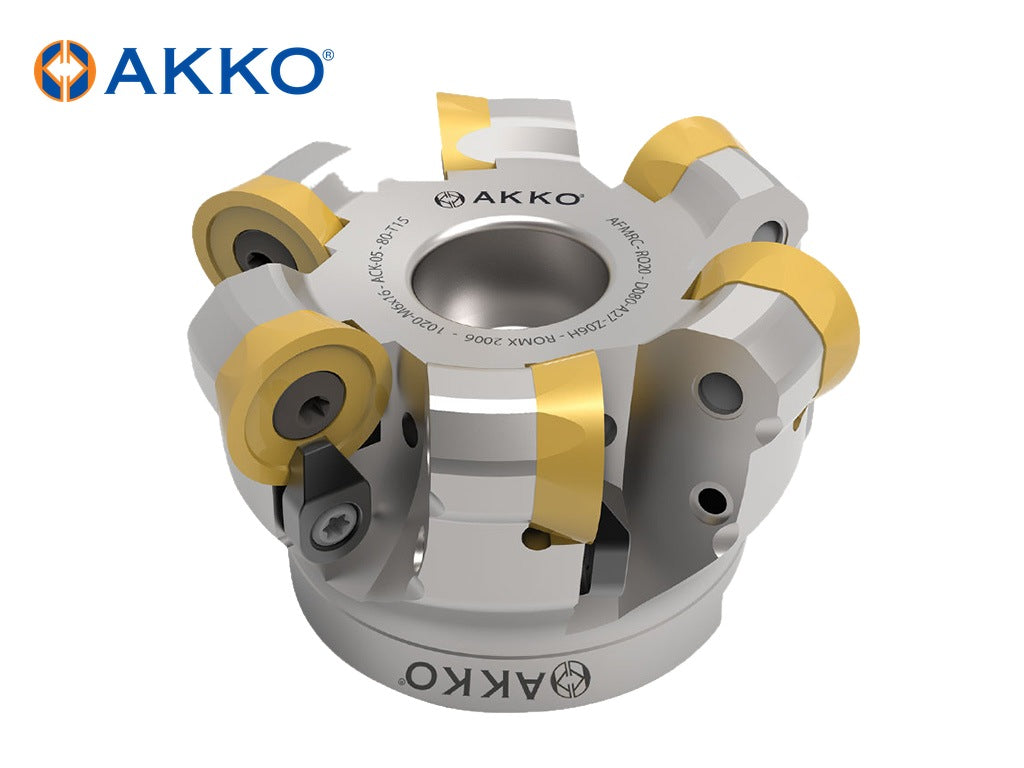

AKKO AFMRC-RO – Face and Copy Mill from the AKKO Face and Copy Mills (Arbor Type) range. For inserts: ROMX 2006. 2 sizes listed below.
Specifications
-
Functional Length (LF): 50 mm
-
Coolant Through: Yes
-
Maximum Depth of Cut (APMX): 10 mm
-
Insert Size: 2006
-
Insert Type: ROMX

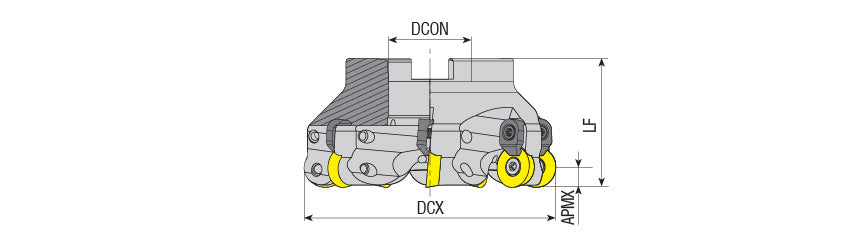

Sizes and dimensions
| AKKO code |
Cutting Diameter (DC, mm) |
Connection Diameter (DCON, mm) |
Number of Flutes (ZEFP) |
| AFMRC-RO20-D063-A22-Z05-H |
63 |
22 |
5 |
| AFMRC-RO20-D080-A27-Z06-H |
80 |
27 |
6 |
Spare parts (AKKO codes)
-
Clamp: ACK-05
-
Torx Screw: 4015-M4X11
-
Torx Screw-2: 1020-M6X16
| AKKO code |
Hexagon Screw |
| AFMRC-RO20-D063-A22-Z05-H |
2508-M10x30 |
| AFMRC-RO20-D080-A27-Z06-H |
2510-M12x35 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
