Home » AKKO AFM90-SO Face Mill
AKKO

AKKO AFM90-SO Face Mill

Out of stock
SKU: AFM90-SO12-D050-A22-Z05
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAFM90-SO12-D050-A22-Z05 SKUAFM90-SO12-D050-A22-Z05

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

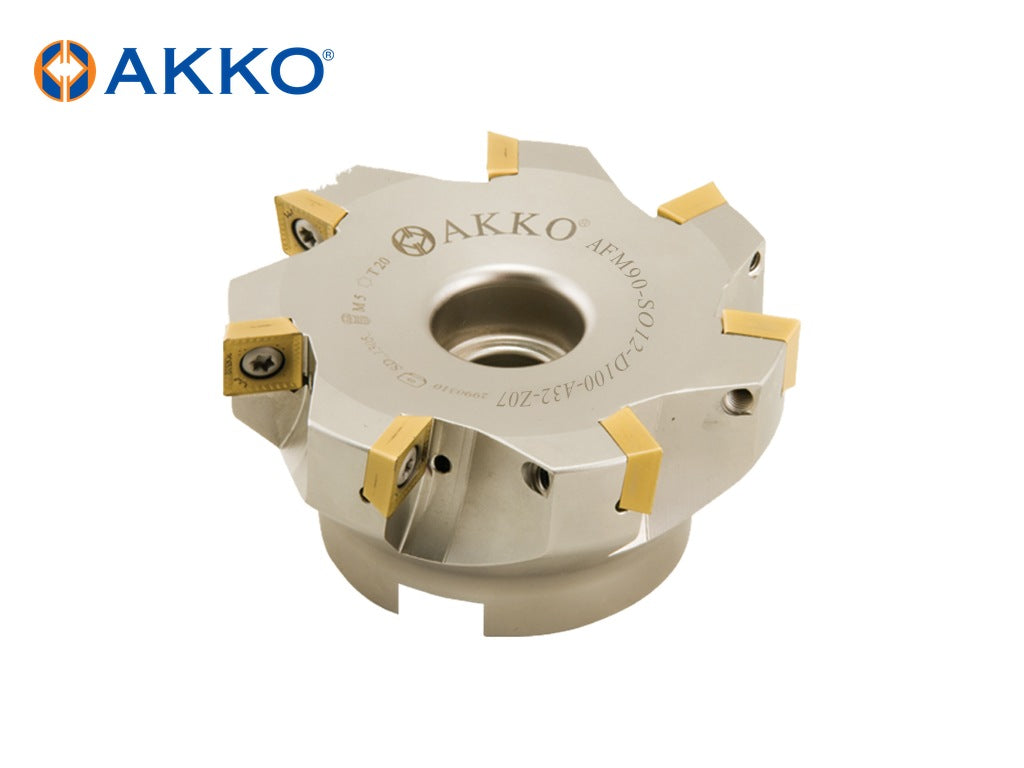

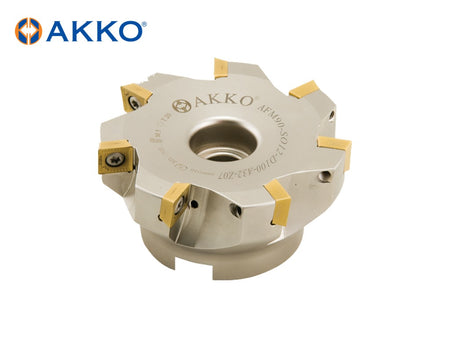

AKKO AFM90-SO – Face Mill from the AKKO Face Mills (Arbor Type) range. For inserts: SOMT 12T3, SOMT 12T3.. 7 sizes listed below.

Specifications

  • Coolant Through: No
  • Insert Type: SOMT

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Number of Flutes (ZEFP) Insert Size
AFM90-SO12-D050-A22-Z05 50 22 5 12T3..
AFM90-SO12-D063-A22-Z05 63 22 5 12T3..
AFM90-SO12-D063-A22-Z06 63 22 6 12T3..
AFM90-SO12-D080-A27-Z08 80 27 8 12T3..
AFM90-SO12-D100-A32-Z07 100 32 7 12T3..
AFM90-SO12-D125-B40-Z08 125 40 8 12T3..
AFM90S-SO12-D050-A22-Z04 50 22 4 12T3

Spare parts (AKKO codes)

  • Hexagon Screw: 2508-M10x30

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
