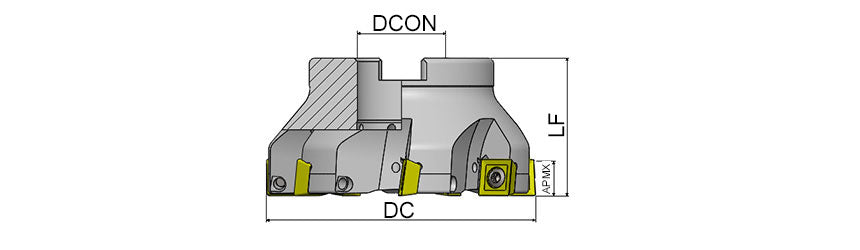

AKKO AFM90-SD-H Face Mill - dimension drawing
AKKO AFM90-SD-H Face Mill - dimension drawing
AKKO

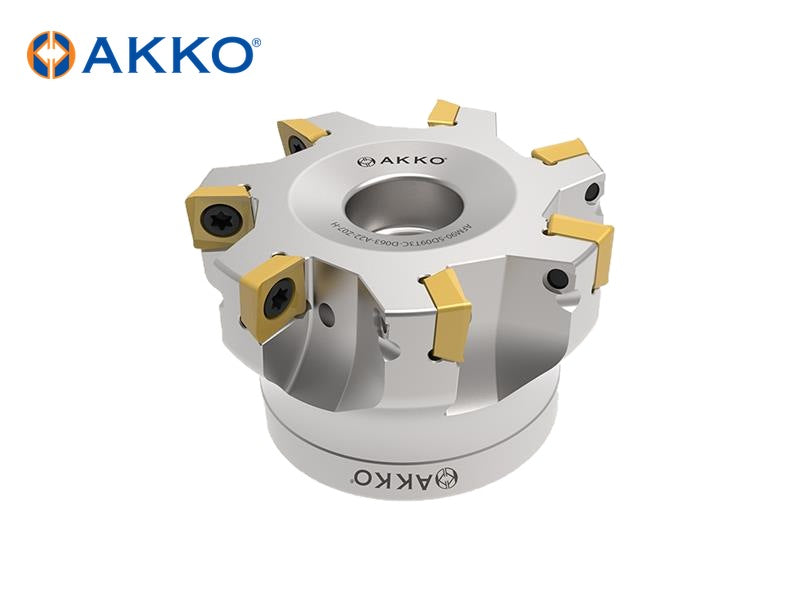

AKKO AFM90-SD-H Face Mill

Out of stock
SKU: AFM90-SD09M4-D040-A16-Z04-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAFM90-SD09M4-D040-A16-Z04-H SKUAFM90-SD09M4-D040-A16-Z04-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO AFM90-SD-H – Face Mill from the AKKO Face Mills (Arbor Type) range. For inserts: SDMT 1305.., SDXT 09M4.. 9 sizes listed below.

Specifications

  • Coolant Through: Yes

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Maximum Depth of Cut (APMX, mm) Number of Flutes (ZEFP) Insert Size Insert Type
AFM90-SD09M4-D040-A16-Z04-H 40 16 40 9 4 09M4.. SDXT
AFM90-SD09M4-D050-A22-Z05-H 50 22 40 9 5 09M4.. SDXT
AFM90-SD09M4-D063-A22-Z06-H 63 22 40 9 6 09M4.. SDXT
AFM90-SD09M4-D063-A27-Z06-H 63 27 40 9 6 09M4.. SDXT
AFM90-SD09M4-D080-A27-Z07-H 80 27 50 9 7 09M4.. SDXT
AFM90-SD1305-D050-A22-Z04-H 50 22 40 13 4 1305.. SDMT
AFM90-SD1305-D063-A22-Z05-H 63 22 50 13 5 1305.. SDMT
AFM90-SD1305-D080-A27-Z06-H 80 27 50 13 6 1305.. SDMT
AFM90-SD1305-D100-A32-Z07-H 100 32 50 13 7 1305.. SDMT

Spare parts (AKKO codes)

AKKO code Torx Key Torx Screw Hexagon Screw
AFM90-SD09M4-D040-A16-Z04-H 82-T15 4015-M3.5X11 2406-M8x30 A16
AFM90-SD09M4-D050-A22-Z05-H 82-T15 4015-M3.5X11 2508-M10x30
AFM90-SD09M4-D063-A22-Z06-H 82-T15 4015-M3.5X11 2508-M10x30
AFM90-SD09M4-D063-A27-Z06-H 82-T15 4015-M3.5X11 2510-M12x35
AFM90-SD09M4-D080-A27-Z07-H 82-T15 4015-M3.5X11 2510-M12x35
AFM90-SD1305-D050-A22-Z04-H 80-T20 1020-M5X11 2408-M10x30
AFM90-SD1305-D063-A22-Z05-H 80-T20 1020-M5X11 2508-M10x30
AFM90-SD1305-D080-A27-Z06-H 80-T20 1020-M5X11 2510-M12x35
AFM90-SD1305-D100-A32-Z07-H 80-T20 1020-M5X11 2514-M16x35

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
