Home » AKKO AFM90-SD Face Mill
AKKO AFM90-SD-H Face Mill - dimension drawing
AKKO AFM90-SD-H Face Mill - dimension drawing
AKKO

AKKO AFM90-SD Face Mill

Out of stock
SKU: AFM90-SD1305-D125-B40-Z08
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAFM90-SD1305-D125-B40-Z08 SKUAFM90-SD1305-D125-B40-Z08

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

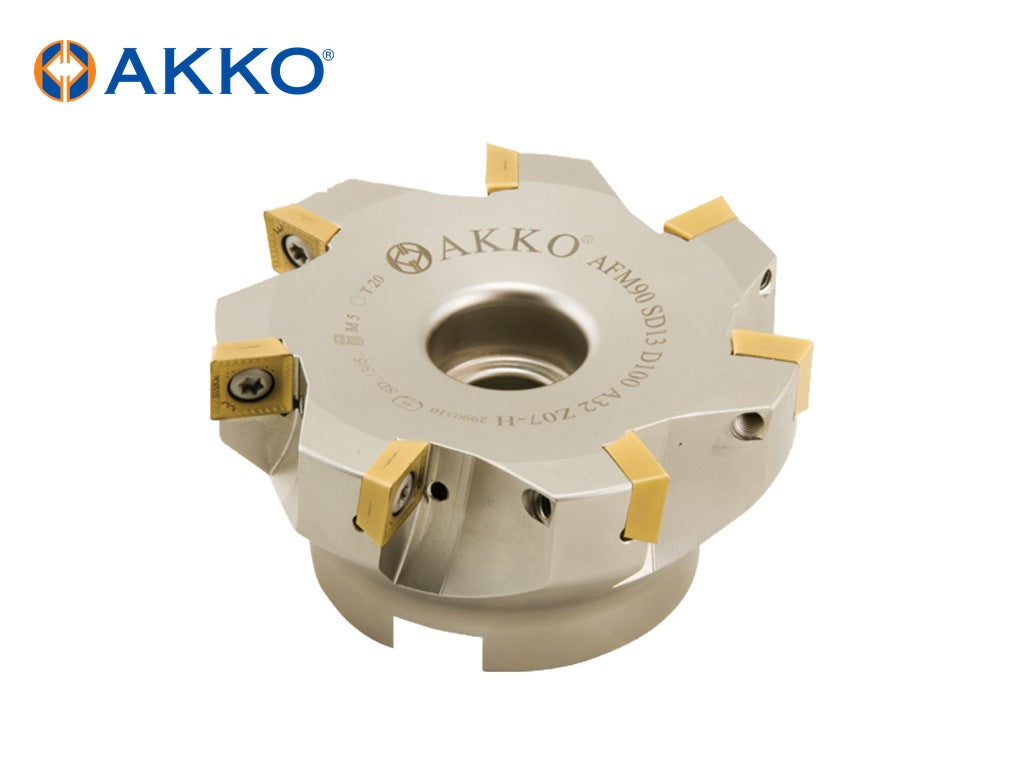

AKKO AFM90-SD – Face Mill from the AKKO Face Mills (Arbor Type) range. For inserts: SDMT 1305.. 2 sizes listed below.

Specifications

  • Functional Length (LF): 63 mm
  • Coolant Through: No
  • Connection Diameter (DCON): 40 mm
  • Maximum Depth of Cut (APMX): 13 mm
  • Insert Size: 1305..
  • Insert Type: SDMT

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Number of Flutes (ZEFP)
AFM90-SD1305-D125-B40-Z08 125 8
AFM90-SD1305-D160-C40-Z10 160 10

Spare parts (AKKO codes)

  • Torx Key: 80-T20
  • Torx Screw: 1020-M5X11

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
