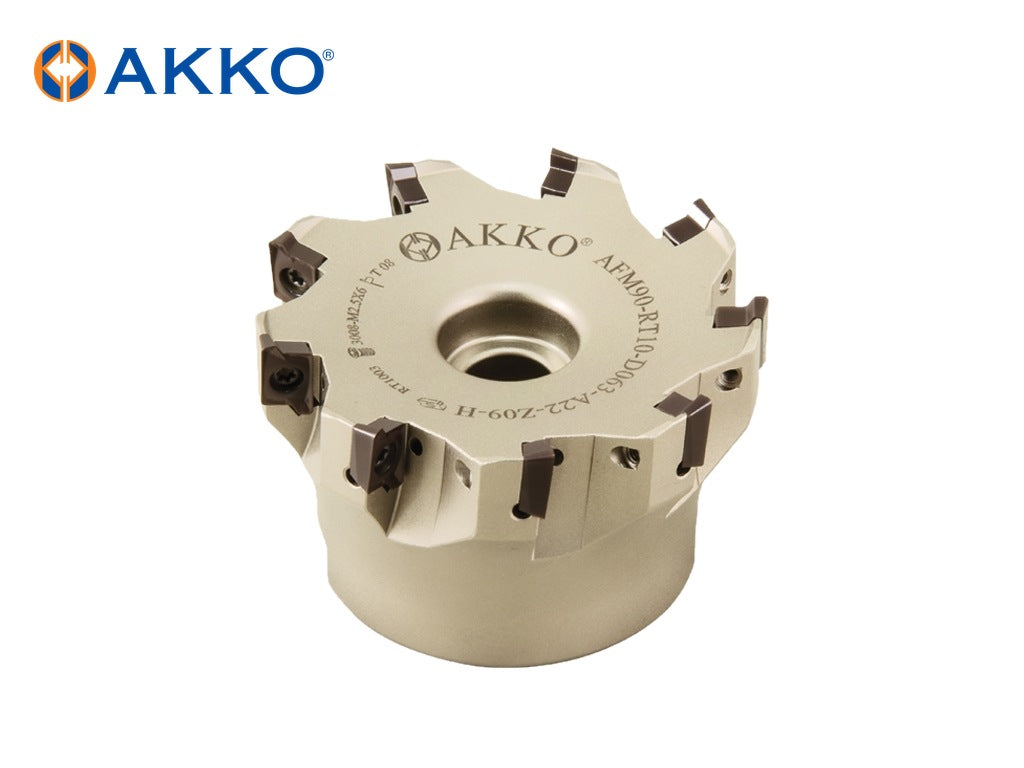

AKKO AFM90-RT – Face Mill from the AKKO Face Mills (Arbor Type) range. For inserts: RT 1003, RT 1003.., RT 1606. 7 sizes listed below.

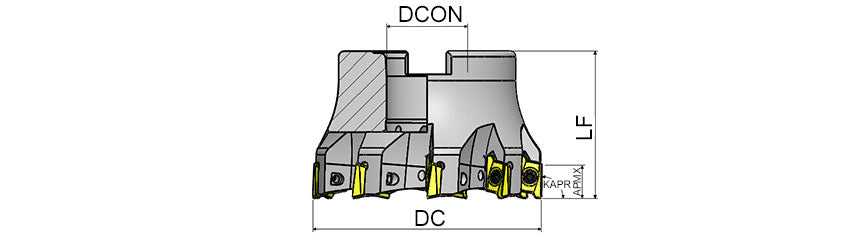

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Coolant Through | Maximum Depth of Cut (APMX, mm) | Number of Flutes (ZEFP) | Insert Size |
|---|---|---|---|---|---|---|---|
| AFM90-RT10-D040-A16-Z06-H | 40 | 16 | 40 | Yes | 10 | 6 | 1003.. |
| AFM90-RT10-D050-A22-Z07-H | 50 | 22 | 40 | Yes | 10 | 7 | 1003 |
| AFM90-RT10-D063-A22-Z09-H | 63 | 22 | 40 | Yes | 10 | 9 | 1003 |
| AFM90-RT16-D040-A16-Z04-H | 40 | 16 | 40 | Yes | 16 | 4 | 1606 |
| AFM90-RT16-D063-A22-Z06-H | 63 | 22 | 40 | Yes | 16 | 6 | 1606 |
| AFM90-RT16-D080-A27-Z07-H | 80 | 27 | 50 | Yes | 16 | 7 | 1606 |
| AFM90-RT16-D125-B40-Z09 | 125 | 40 | 63 | No | 16 | 9 | 1606 |
| AKKO code | Torx Key | Torx Screw | Hexagon Screw |
|---|---|---|---|
| AFM90-RT10-D040-A16-Z06-H | 82-T08 | 3008-M2.5X6 | 2506-M8x30 |
| AFM90-RT10-D050-A22-Z07-H | 82-T08 | 3008-M2.5X6 | 2508-M10x30 |
| AFM90-RT10-D063-A22-Z09-H | 82-T08 | 3008-M2.5X6 | 2508-M10x30 |
| AFM90-RT16-D040-A16-Z04-H | 82-T15 | 4015-M4X11 | – |
| AFM90-RT16-D063-A22-Z06-H | 82-T15 | 4015-M4X11 | 2508-M10x30 |
| AFM90-RT16-D080-A27-Z07-H | 82-T15 | 4015-M4X11 | 2510-M12x35 |
| AFM90-RT16-D125-B40-Z09 | 82-T15 | 4015-M4X11 | – |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
