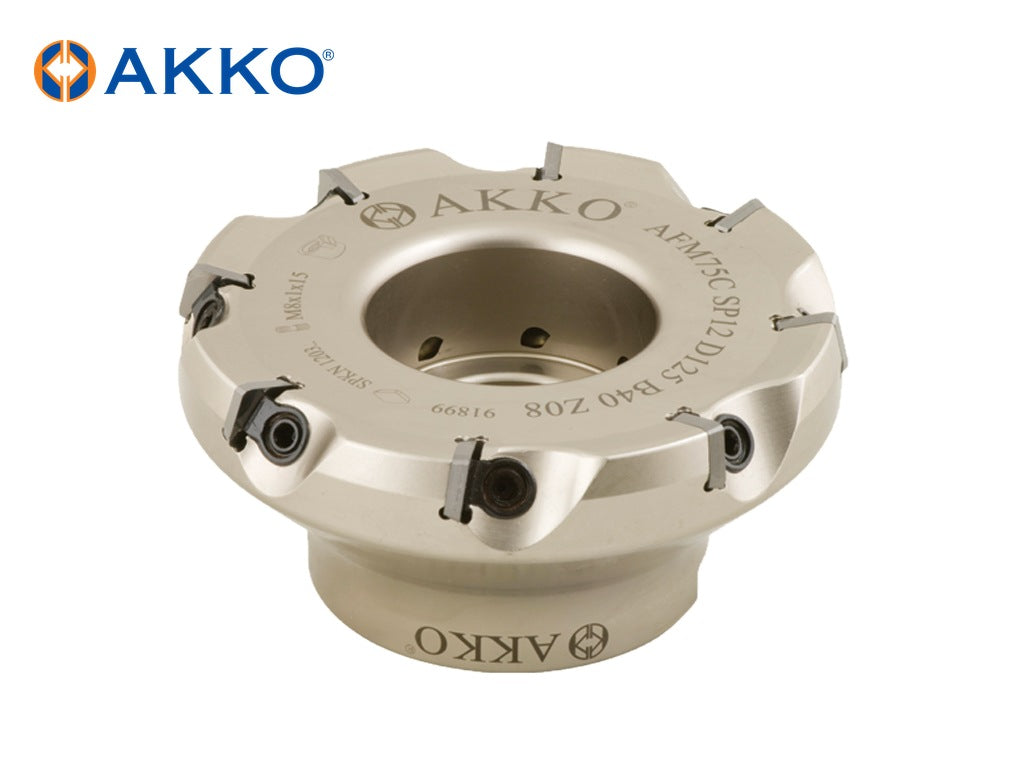

AKKO AFM75C-SP – C-System Face Mill from the AKKO C-System Face Mills (Arbor Type) range. For inserts: SPKN 1203.. 7 sizes listed below.

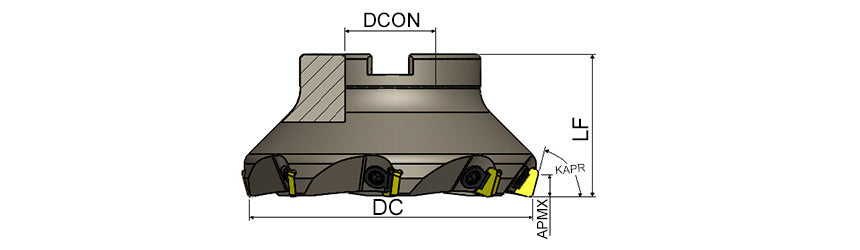

| AKKO code | Cutting Diameter (DC, mm) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Number of Flutes (ZEFP) |
|---|---|---|---|---|
| AFM75C-SP12-D050-A22-Z04 | 50 | 22 | 42 | 4 |
| AFM75C-SP12-D063-A22-Z05 | 63 | 22 | 40 | 5 |
| AFM75C-SP12-D080-A27-Z06 | 80 | 27 | 50 | 6 |
| AFM75C-SP12-D100-A32-Z07 | 100 | 32 | 50 | 7 |
| AFM75C-SP12-D125-B40-Z08 | 125 | 40 | 63 | 8 |
| AFM75C-SP12-D160-C40-Z09 | 160 | 40 | 63 | 9 |
| AFM75C-SP12-D200-C60-Z12 | 200 | 60 | 63 | 12 |
| AKKO code | Clamp Screw | Hexagon Screw |
|---|---|---|
| AFM75C-SP12-D050-A22-Z04 | AKV-22-M8X1X14 | 2508-M10x30 |
| AFM75C-SP12-D063-A22-Z05 | AKV-13-M8x1x16 | 2508-M10x30 |
| AFM75C-SP12-D080-A27-Z06 | AKV-13-M8x1x16 | 2510-M12x35 |
| AFM75C-SP12-D100-A32-Z07 | AKV-13-M8x1x16 | 2514-M16x35 |
| AFM75C-SP12-D125-B40-Z08 | AKV-13-M8x1x16 | – |
| AFM75C-SP12-D160-C40-Z09 | AKV-13-M8x1x16 | – |
| AFM75C-SP12-D200-C60-Z12 | AKV-13-M8x1x16 | – |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
