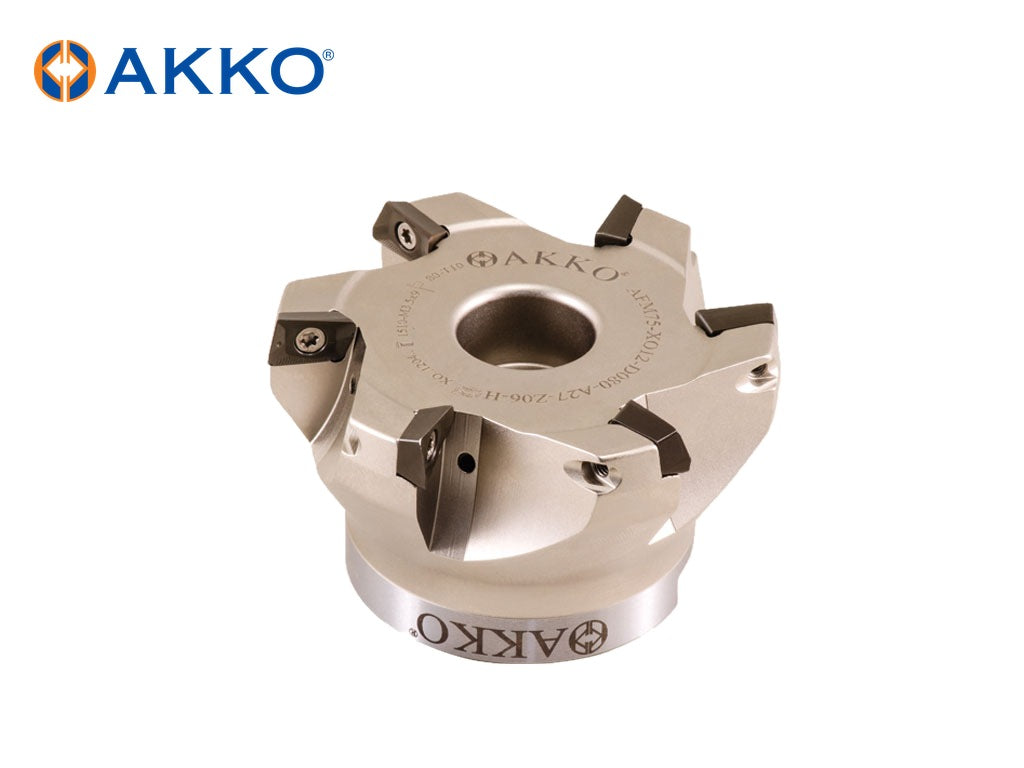

AKKO AFM75-XO – Face Mill from the AKKO Face Mills (Arbor Type) range. For inserts: XOMX 1204.. 3 sizes listed below.
Specifications
-
Coolant Through: Yes
-
Insert Size: 1204..
-
Insert Type: XOMX

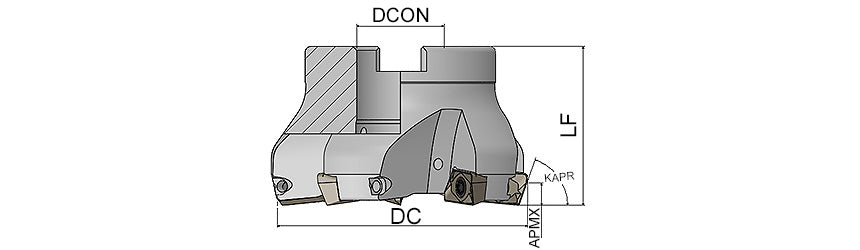

Sizes and dimensions
| AKKO code |
Cutting Diameter (DC, mm) |
Connection Diameter (DCON, mm) |
Functional Length (LF, mm) |
Number of Flutes (ZEFP) |
| AFM75-XO12-D050-A22-Z04-H |
50 |
22 |
40 |
4 |
| AFM75-XO12-D063-A22-Z05-H |
63 |
22 |
40 |
5 |
| AFM75-XO12-D080-A27-Z06-H |
80 |
27 |
50 |
6 |
Spare parts (AKKO codes)
-
Torx Key: 82-T10
-
Torx Screw: 3010-M3.5X9
| AKKO code |
Hexagon Screw |
| AFM75-XO12-D050-A22-Z04-H |
2508-M10x30 |
| AFM75-XO12-D063-A22-Z05-H |
2508-M10x30 |
| AFM75-XO12-D080-A27-Z06-H |
2510-M12x35 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
