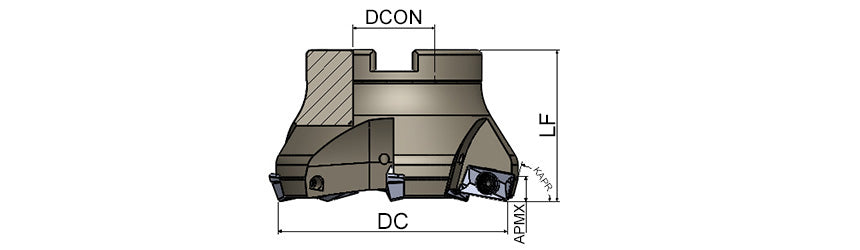

AKKO AFM75-AP Face Mill - dimension drawing
AKKO AFM75-AP Face Mill - dimension drawing
AKKO

AKKO AFM75-AP Face Mill

Out of stock
SKU: AFM75-AP16-D063-A22-Z04-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAFM75-AP16-D063-A22-Z04-H SKUAFM75-AP16-D063-A22-Z04-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

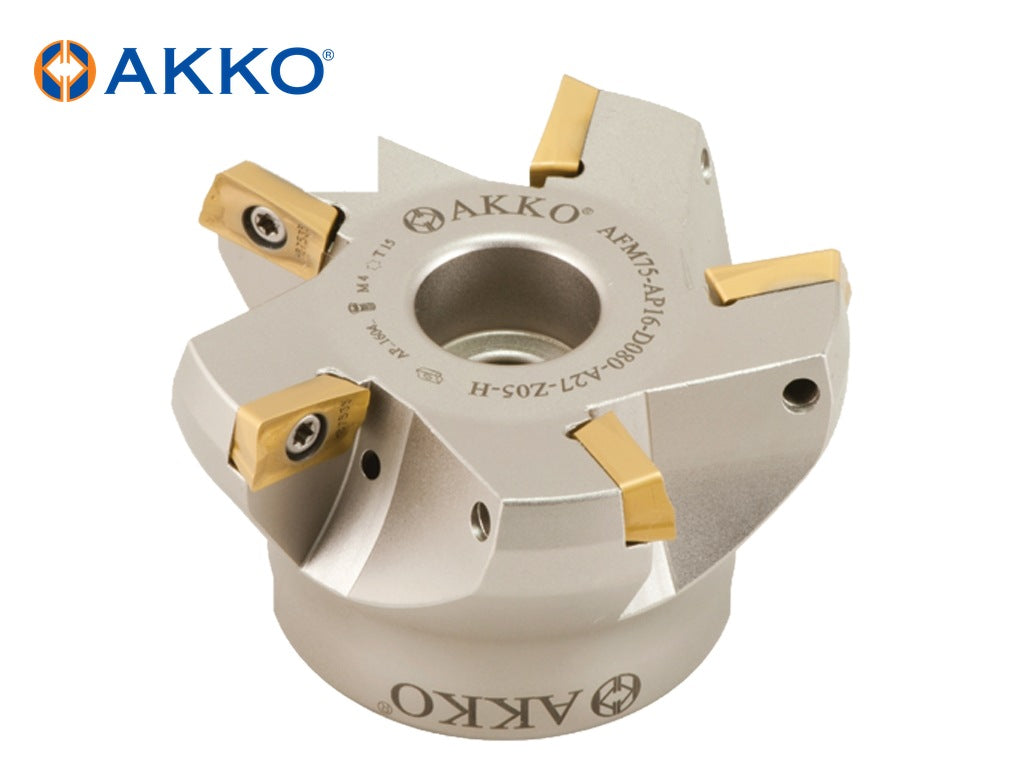

AKKO AFM75-AP – Face Mill from the AKKO Face Mills (Arbor Type) range. For inserts: APKT 1604.. 4 sizes listed below.

Specifications

  • Maximum Depth of Cut (APMX): 6 mm
  • Insert Size: 1604..
  • Insert Type: APKT

Sizes and dimensions

AKKO code Cutting Diameter (DC, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Coolant Through Number of Flutes (ZEFP)
AFM75-AP16-D063-A22-Z04-H 63 22 40 Yes 4
AFM75-AP16-D080-A27-Z05-H 80 27 50 Yes 5
AFM75-AP16-D100-A32-Z06-H 100 32 50 Yes 6
AFM75-AP16-D125-B40-Z07 125 40 63 No 7

Spare parts (AKKO codes)

  • Torx Key: 82-T15
  • Torx Screw: 4015-M4X11
AKKO code Hexagon Screw
AFM75-AP16-D063-A22-Z04-H 2508-M10x30
AFM75-AP16-D080-A27-Z05-H 2510-M12x35
AFM75-AP16-D100-A32-Z06-H 2514-M16x35
AFM75-AP16-D125-B40-Z07 –

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
